Connection Sizes, Air Cooled Units; Field Piping, Remote Condenser Above Evaporator - Data Aire gForce Ultra Installation, Operation And Maintenance Manual

2.7.5 Connection Sizes, Air Cooled Units

NOTE: Field connections at the indoor evaporator and remote condenser
will not necessarily be the same as the field pipe size required.

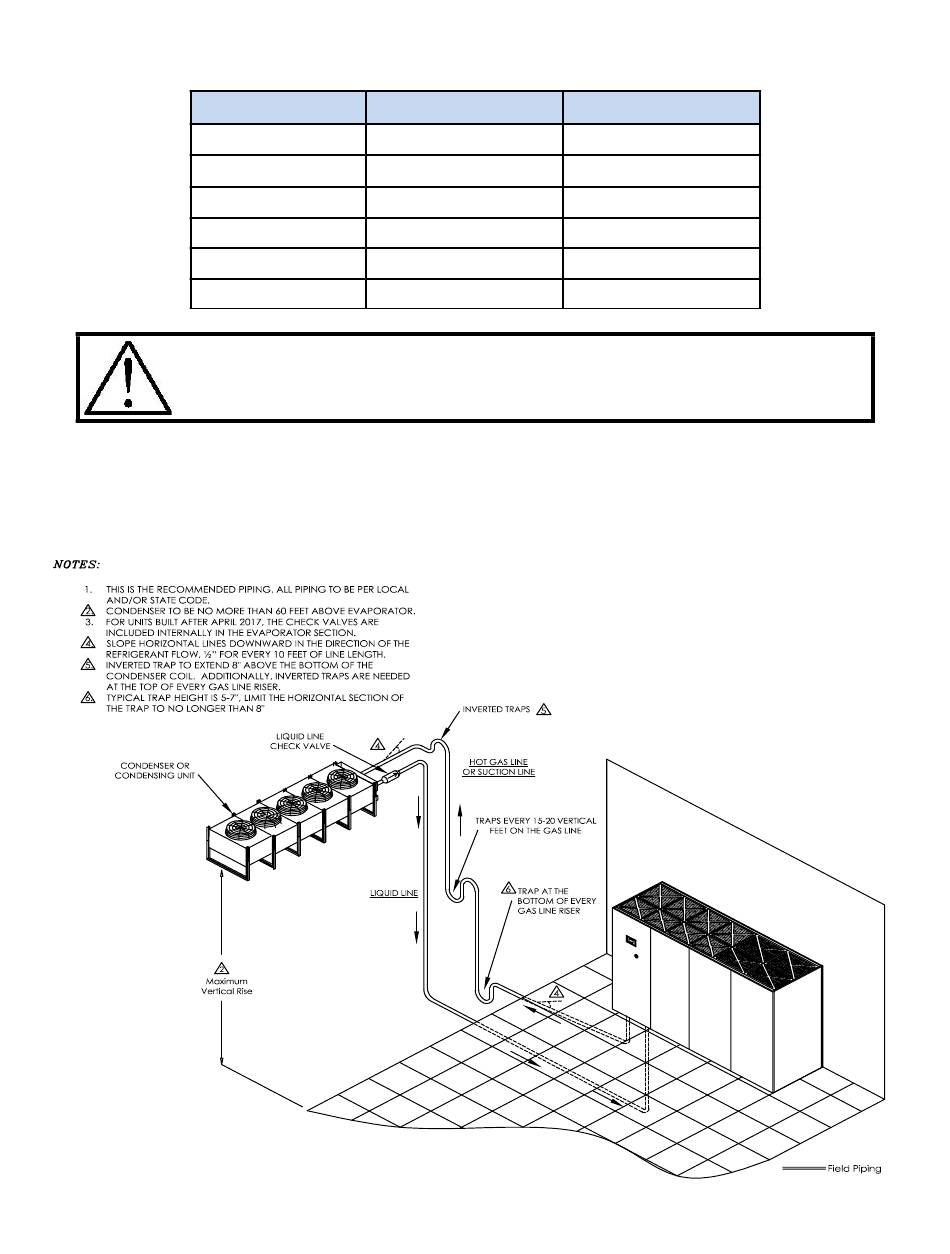

2.7.6 Field Piping, Remote Condenser Above Evaporator

Model Number
5/8" (16 mm) O.D.
GUA* 022
7/8" (22 mm) O.D.
GUA* 036
GUA* 045
7/8" (22 mm) O.D.
GUA* 070
7/8" (22 mm) O.D.
GUA* 091
7/8" (22 mm) O.D.
GUA* 125
1-1/8" (29 mm) O.D.
Liquid Line
5/8" (16 mm) O.D.
7/8" (22 mm) O.D.
7/8" (22 mm) O.D.
7/8" (22 mm) O.D.
7/8" (22 mm) O.D.
7/8" (22 mm) O.D.
17
Hot Gas Line
