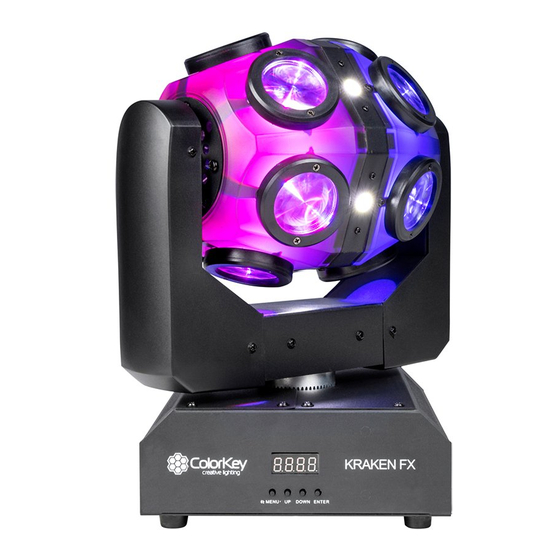

Kraken FX
CKU-1070
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kraken FX and is the answer not in the manual?

Questions and answers

Summary of Contents for ColorKey Kraken FX

  • Page 1 Kraken FX CKU-1070 USER MANUAL...
  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ............................... 3 SAFETY ..................................3 SERVICE & SUPPORT ............................3 DISPLAY OPERATION ............................4 MENU GUIDE ................................5 DMX VALUES ......................ERROR! BOOKMARK NOT DEFINED. SETUP & CONNECTIONS ............................9 TROUBLESHOOTING ............................. 9 TECHNICAL INFORMATION ..........................10 Please read these instructions carefully before use.
  • Page 3: Introduction

    • Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/...
  • Page 4: Display Operation

    Display Operation MENU: Access the menu/Scroll through menu options Scroll through menu selection or increase parameter DOWN: Scroll through menu selection or parameters decrease ENTER: Open/Select the current menu option...
  • Page 5: Menu Guide

    Menu Guide Menu Item Values Function Show Addr 1-512 Set DMX Address (001 to 512) ChNd 6ch / 12ch Select number of DMX Channels SLNd MAST, SL1, Set for Master / Slave Auto SP(1-9) Adjust Auto Effects speed Soun So(1-9) Set Sound Sensitivity Adjustments in Auto Mode SEnS SE(99-0)
  • Page 6: Dmx Values

    DMX Values 6 channels mode Channel Value Function 0-255 Dimmer 0-7 Open 8-255 Strobe (Slow to Fast) 0-7 No Function 8-22 Movement 1 23-37 Movement 2 38-52 Movement 3 53-67 Movement 4 68-82 Movement 5 83-97 Movement 6 98-112 Movement 7 113-127 Movement 8 128-142 Movement 9 143-157 Movement 10...
  • Page 7 10 channels mode Channel Value Function 0-255 Dimmer Open 8-255 Strobe (Slow to Fast) 0-255 0-255 Pan Speed 0-255 Tilt1 Stop 6-126 Tilt Rotate Forward (Fast to Slow) 127-128 Stop 129-249 Tilt Rotate Forward (Slow to Fast) 250-255 Stop Color 1 Off 8-24 Color 1 Red 25-41...
  • Page 8 190-206 Color 2 Red + Green + White 207-222 Color 2 Red + Blue + White 223-239 Color 2 Green + Blue + White 240-255 Color 2 Red + Green + Blue + White 0-255 Dimmer (Center LED's) 0-199 No Function 200-209 Reset 210-255...
  • Page 9: Setup & Connections

    Setup & Connections ① Wired DMX Cable Connections Use a DMX to cable to connect to the in/out sockets on the bottom of the light for use with a cabled connection with DMX 512 control. WIRELESS WIRELESS WIRELESS MASTER MASTER MASTER SOUND SLAVE...
  • Page 10: Technical Information

    Technical Information • 7x10W RGBW 4-in-1 CREE LEDs • DMX Channel Modes: 6 / 10 channels • Control modes: DMX 512, Master /Slave, Sound Active, Stand Alone • 0-100% Dimmer • Working temperature: up to 40˚C • Power consumption: 80W •...
