Seat Upholstery/Covers
Removing and installing covers
and upholstery for backrest (split
version)

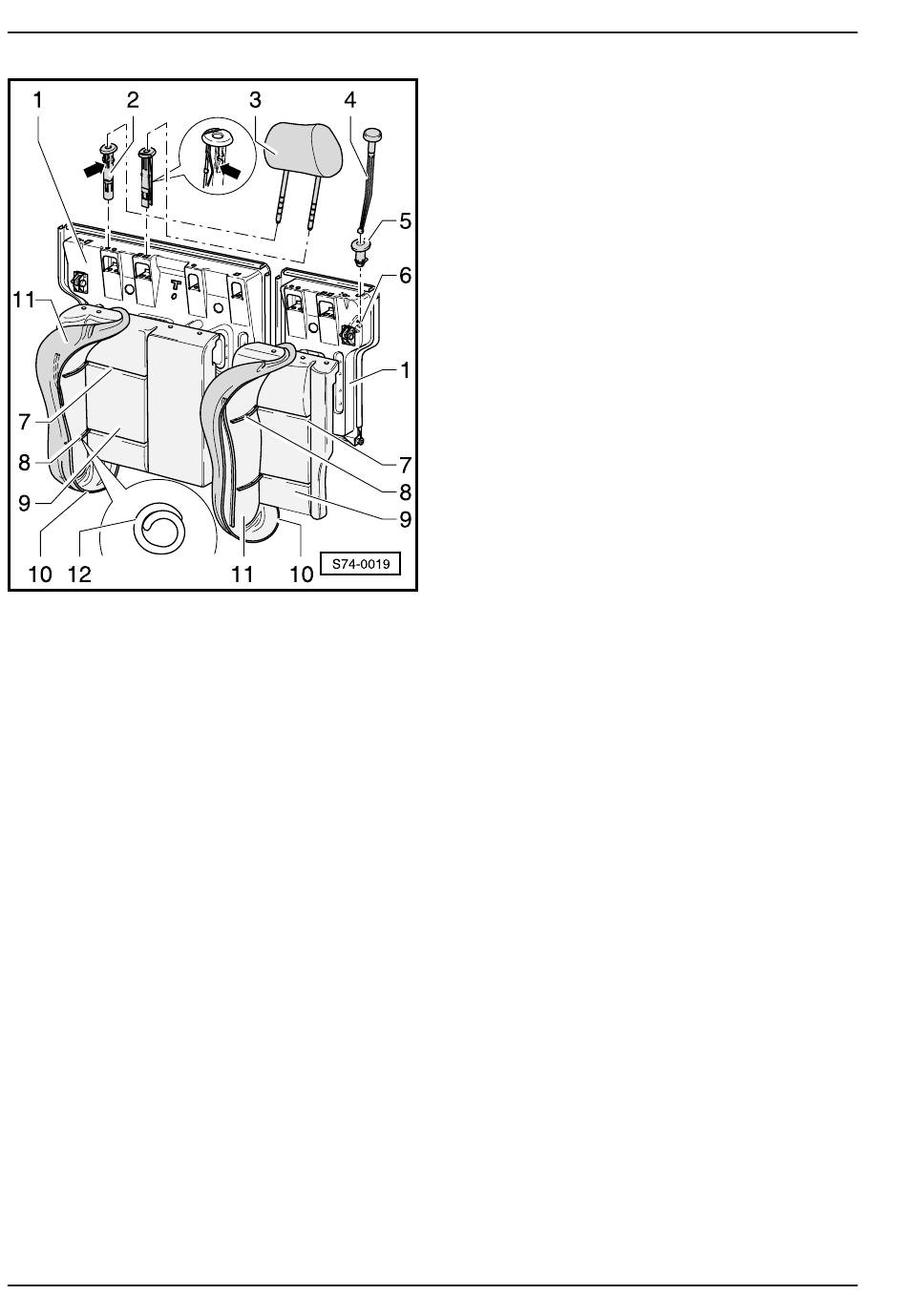

1 - Rear panel
2 - Guide
♦ Release for removing cover of rear
3 - Head restraint
4 - Pull rod
5 - Guide
6 - Detent hook
7 - Upholstery wire
♦ Sewn into upholstery
8 - Plastic piping
♦ Sewn to cover
♦ With holes for mounting upholstery
9 - Upholstery
10 - Clamping section
11 - Cover
♦ The cover is attached to the rear panel
12 - Upholstery clip
panel, grip below upholstery and
holder of head restraint, use a thin
screwdriver to press catch of guide
-arrow- and pull out guide
clips -12-
with the sewn clamping section -10-
