68
------------ 68-4 ------------
Interior Equipment

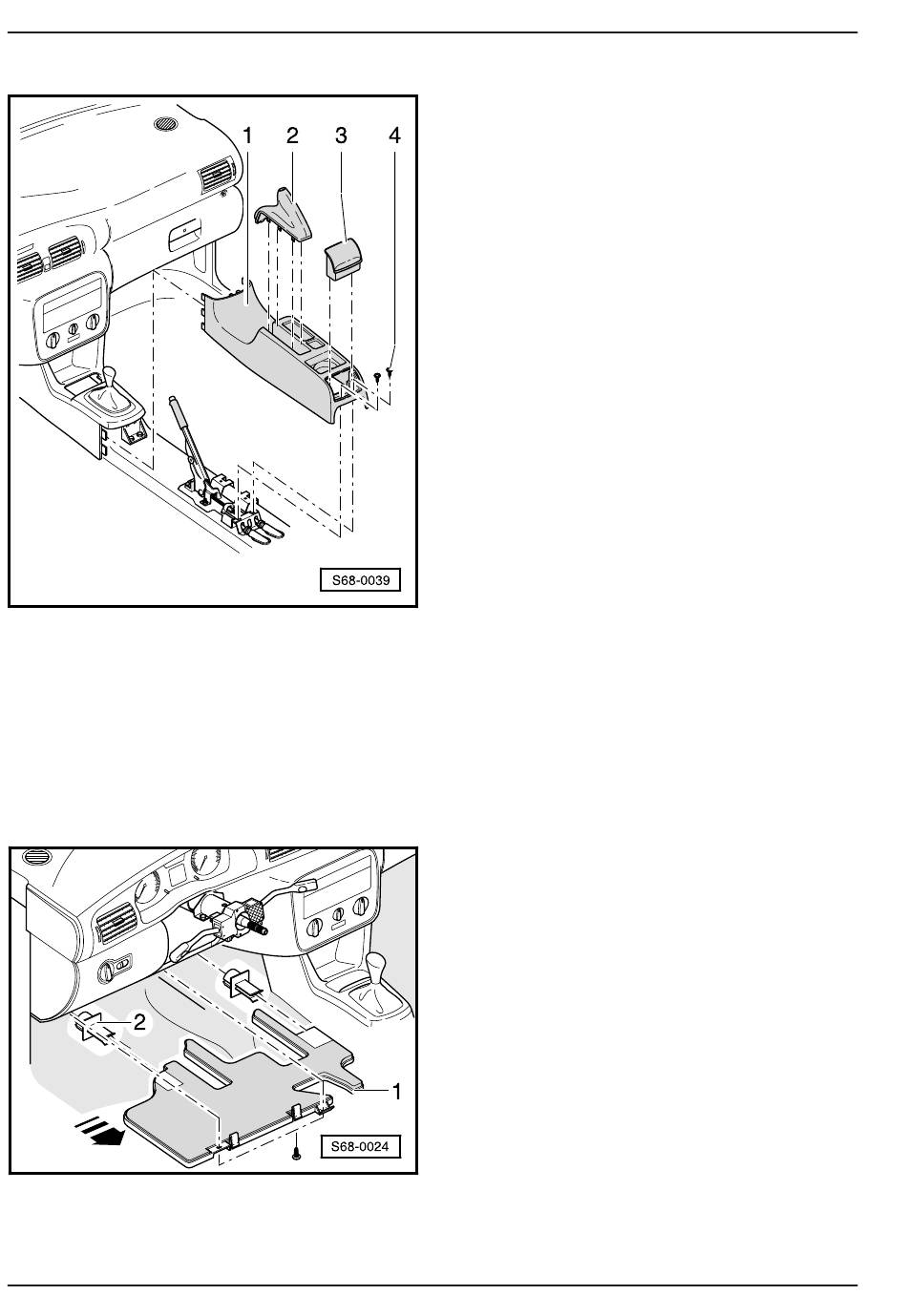

Summary of components of trim
panel for handbrake lever 08.96 ä
1 - Trim panel for handbrake lever
♦ Removing:
- Raise handbrake lever.
- Pull cup -2- up and out of clip connec-
tion.
- Pull rear ashtray -3- up and out.
- Unscrew cross-recessed screws -4-.
- Pull trim panel for handbrake lever to
the rear and then pull up and off the
handbrake lever.
♦ Installation is performed in the reverse
order.
2 - Cup for handbrake lever
♦ Clipped on
♦ Pull over handbrake lever for remov-
ing.
3 - Rear ashtray
4 - 1.5 Nm
Removing and installing footwell
trim panel on driver side
Removing:
K - Unscrew bolts.
- Pull footwell trim panel -1- out of holders -2-.
Installing:
Installation is performed in the reverse order.
