Front Doors/Door Components/Central Locking
Front door seals - Summary of
components

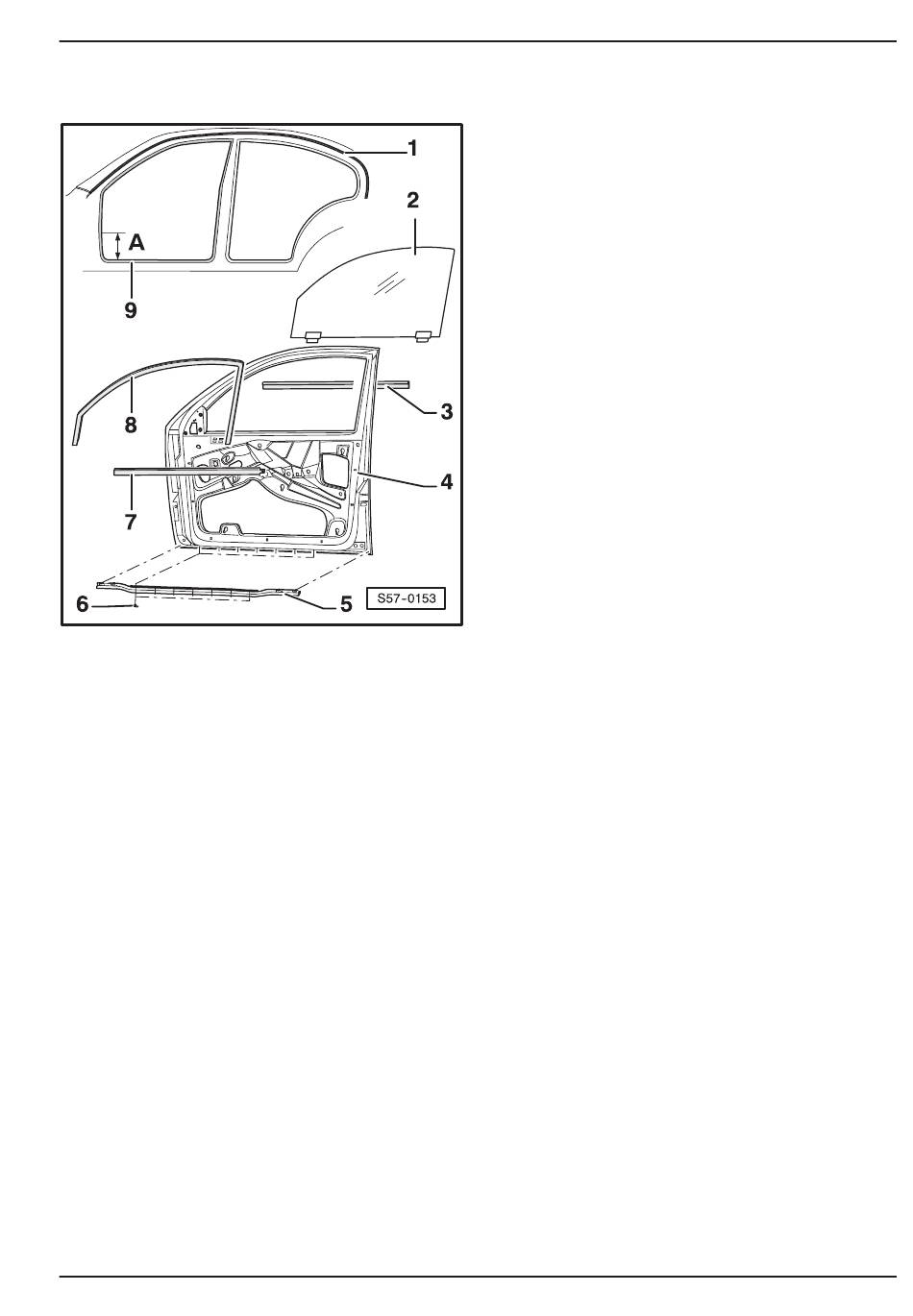

1 - Top door seal
♦ Adhesive
2 - Door window
♦ Removing ⇒ page 57-3.
3 - Outside window shaft seal
♦ Fit onto fl ange
4 - Door
♦ Removing and installing
⇒ page 57-2.
♦ Setting ⇒ page 57-3.
5 - Outside door seal - front
6 - Clip
7 - Inside window shaft seal
♦ Fit onto fl ange
8 - Window run
♦ Fit into window frame
9 - Inside door seal
♦ The joining must have a distance -A-
of approx. 300 mm ± 100 mm from
door bottom.
