Bonnet/Boot Lid/Tailgate

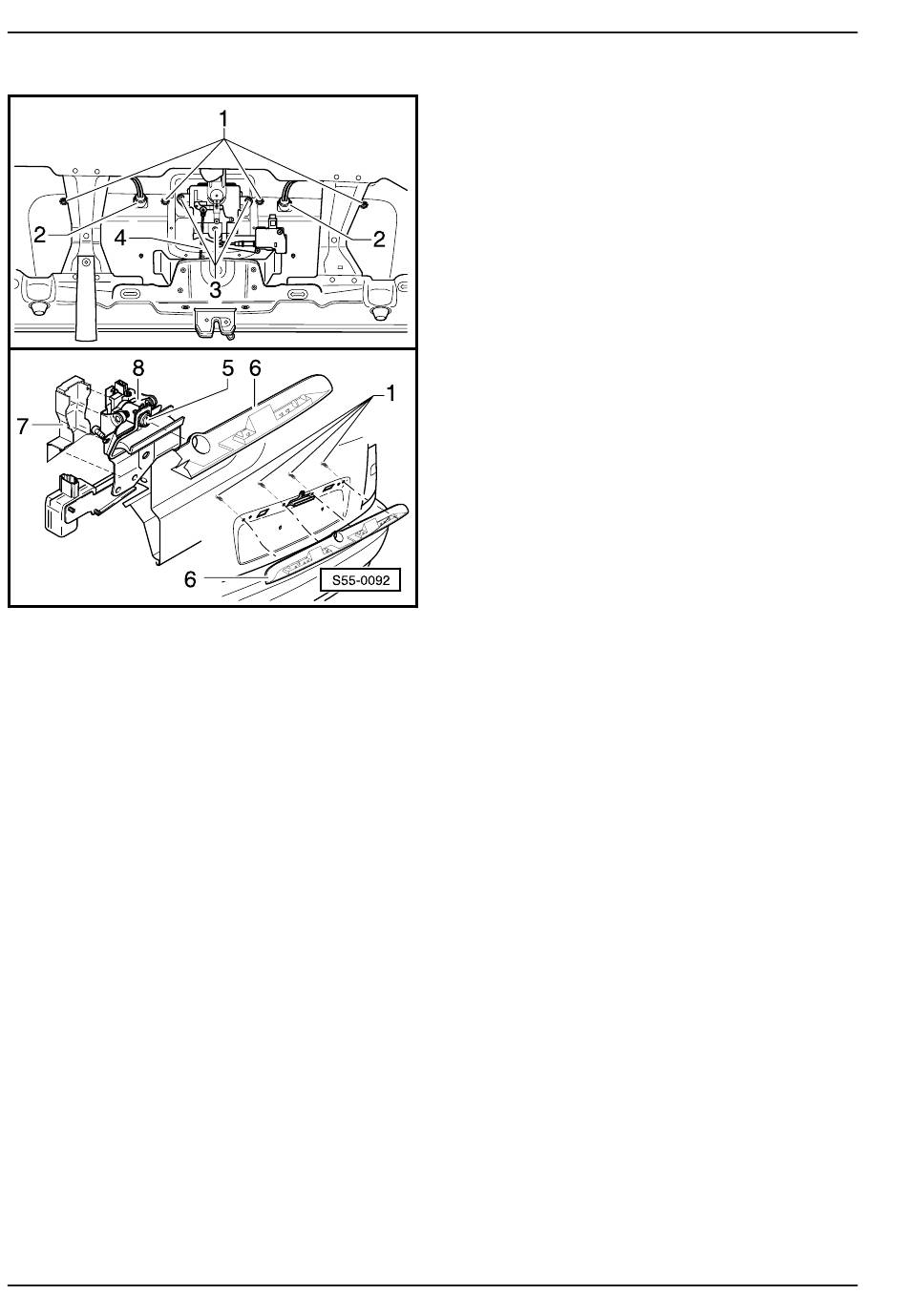

Summary of tailgate lock control
1 - Screw
2 - Sleeve
3 - 10 Nm
4 - Pull rod
5 - Lock insert
6 - Grab strip
♦ Removing:
-
-
-
-
♦ Installation is carried out in the reverse
7 - Cover
8 - Tailgate lock control
♦ Removing:
-
-
-
-
-
-
♦ Installation is carried out in the reverse
Remove trim panel of tailgate ⇒ 70-11.
Take out sleeve -2-
Unscrew bolts -1-
Take off strip.
order.
Remove trim panel of tailgate ⇒ 70-11.
Take off cover -7-
Release pull rod -4-
Separate relevant plug connections.
Unscrew bolts -3-
Draw in control mechanism to the in-
side and take out.
order.
