5.3.5 Electrical Wiring

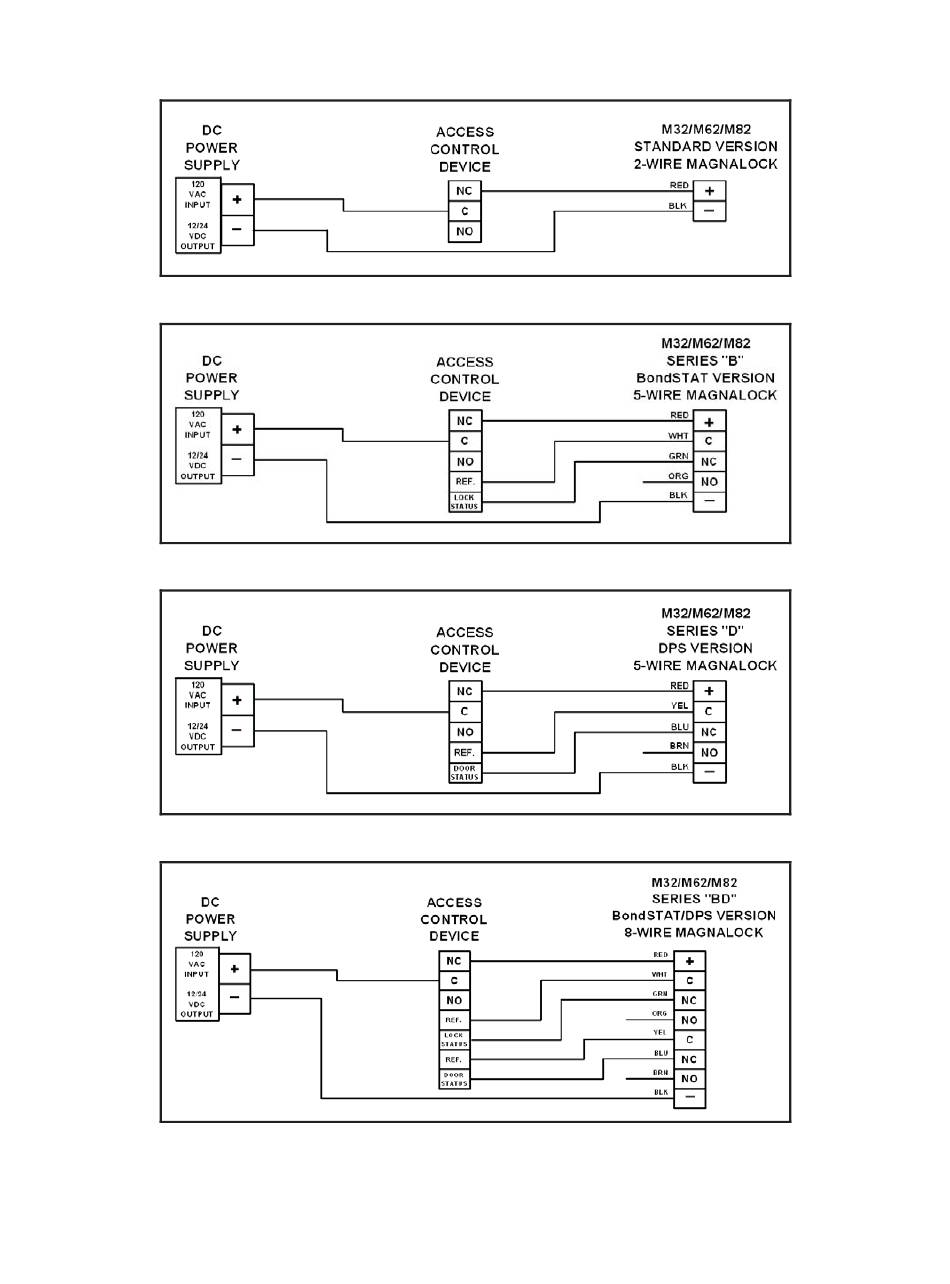

The following diagrams, Figures 12, 13, 14 and 15 represent the proper electrical wiring
connections required for Magnalock Standard, BondSTAT "B", DPS "D" and "BD" versions.
Figure 12
Figure 13
Figure 14
Figure 15
Page 8
PN# 500-10420
Rev. E, 05/08
