Assa Abloy Securitron CEPT-10-10 Installation Instructions

CONCEALED ELECTRICAL POWER TRANSFER SERIES CEPT
PRODUCT COMPATIBILITY NOTE: The Securitron CEPT will NOT operate properly on
openings with the following door/frame/hinge configurations:
 Offset Pivots
 Butt Hinges over 6"
CEPT-10
Traditional Connect
10 Wire (2 + 8)
(2) Wire Nut
+ (8) Crimp
DESCRIPTION

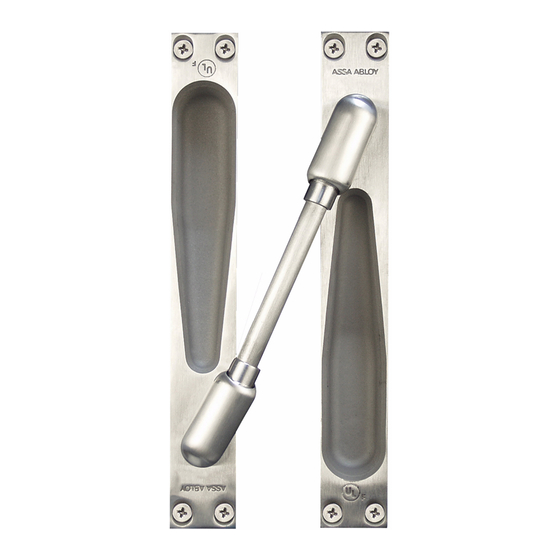

The Concealed Electrical Power Transfer CEPT unit is designed to provide a secure multiple wire
power and/or data transfer between a door frame and door. The unit mounts directly between
the frame and door along the hinged edge and is available in three multi-wire configurations.
The CEPT is non-handed, allows mechanical (hinged) movement of the door and is totally
concealed when the door is fully closed.
successfully install a CEPT to a standard hinged door opening.
© Copyright, 2011, all rights reserved
Securitron Magnalock Corp.
Tel 800.624.5625
Installation Instructions
 Pocket Pivots
 Swing Clear Hinges
Available CEPT Models:
EL-CEPT
ElectroLynx®
(Assa Abloy)
12 Wire (8 + 4)
Connectors: 8 Pin + 4 Pin
www.securitron.com
techsupport@securitron.com
(TIA/EIA-568-B Compatible)
Connectors: 6 Pin + 4 Pin
This manual provides the information required to
Page 1
ASSA ABLOY, the global leader
in door opening solutions
 Center Hung Doors
 Balanced Doors
CEPT-C5E
CAT 5e
9 Wire (8 + 1)
PN# 500-22115
Rev. C, 05/11
