EPT-SC SERIES ELECTRICAL POWER TRANSFER FOR SWING CLEAR
HINGED DOOR APPLICATIONS - INSTALLATION INSTRUCTIONS

1 DESCRIPTION

The EPT-SC allows an electric lock or exit device, such as a Securitron Touch Sense Bar or Touch
Sense Handle, to be installed while concealing and protecting the cabling between the hinged
edge of a door and its door frame. The EPT-SC provides a flexible steel shield conduit which is
approximately 5/16" [7,9mm] I.D. (inside diameter). The EL-EPT-SC is furnished with a wire
harness already installed which includes ElectroLynx® connectors at each end.
The EPT-SC power transfer device has been specifically designed and configured for installation
on doors using Swing Clear type hinges.
Note: The EPT-SC will NOT work on doors utilizing center pivot type hinges.

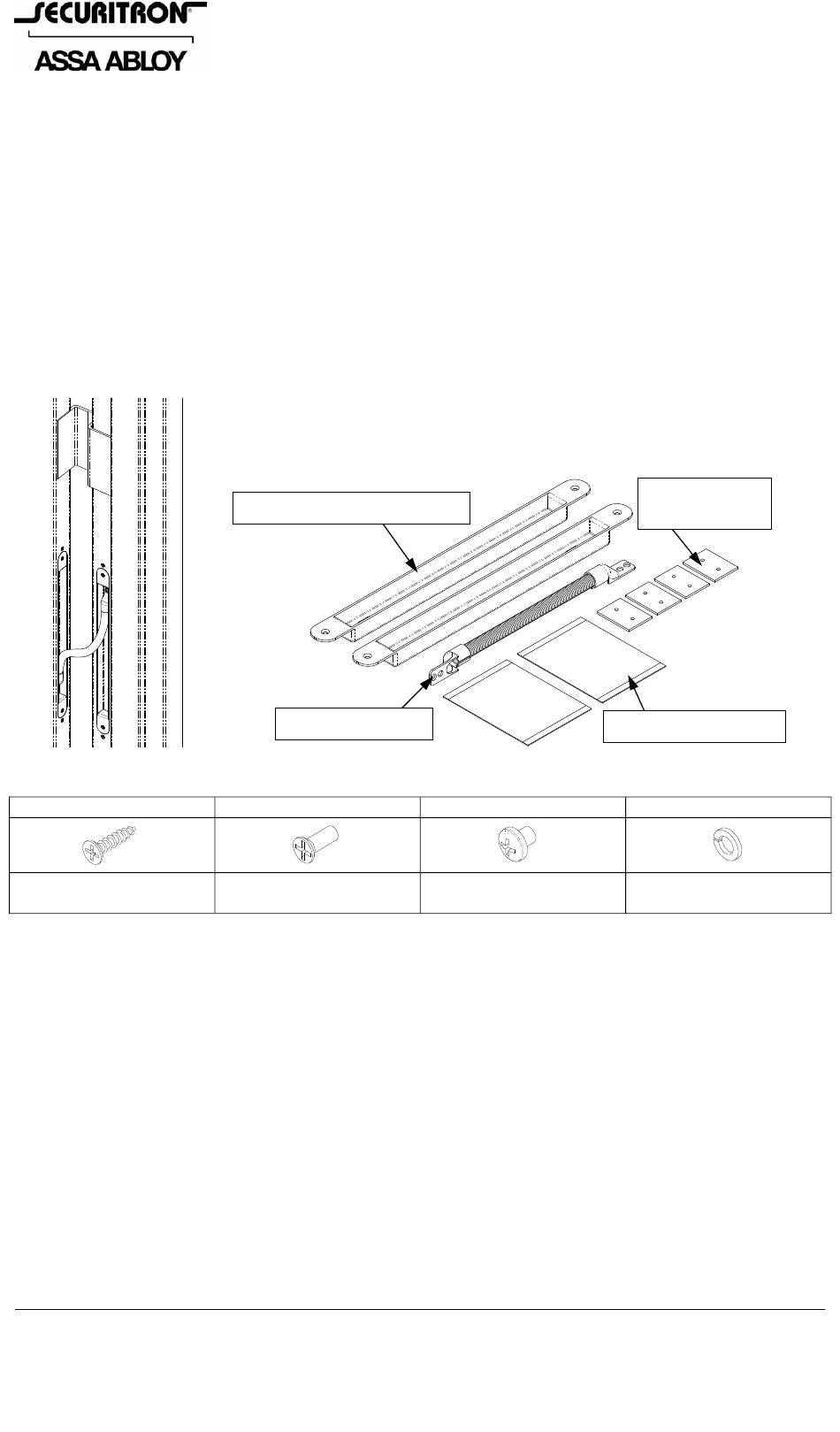

2 PRODUCT OVERVIEW

2.1

HARDWARE

8X
Phillips Flat Head
#6 X 5/8" Type "A"

3 RECOMMENDED TOOLS

Router or Saber Saw
Hammer
Chisel
Center Punch
Power Drill
1/8", 5/32" and 3/4" Drill Bits
3/8" Diameter X 82° Countersink Bit
Phillips and Standard Screwdrivers
4 INSTALLATION
For a proper EPT-SC install, all doors and frames must utilize a flush surface mount installation.
If the door/frame is pre-prepped by the manufacturer, then use the pre-fabricated mounting
features and the hardware provided to install the EPT-SC as discussed in Section 4.3 or 4.4. If
the installation is a field retrofit, determine the door and frame construction, then proceed to
mark the door and frame in accordance with Section 4.1.
© Copyright, 2011, all rights reserved
Securitron Magnalock Corp.
Tel 800.624.5625
Upon unpacking this product, an inventory should be made to ensure
that all of the required components have been included.
these instructions and the installation template, this product should
include the following items:
EPT-SC Lead Cover (2)
Flexible Shield
8X
Phillips Flat Head
6-32 X 3/8" Type "F"
www.securitron.com
techsupport@securitron.com
4X
Phillips Pan Head
8-32 X 3/16"
Measuring Instrument (Ruler/Tape Measure)
Masking Tape
Fish Tape or Lead Wire
Wire Strippers/Cutter
Crimp Wire Connectors
Crimp Tool
Multimeter
Page 1
ASSA ABLOY, the global leader
in door opening solutions
Along with
Flush Tab
Bracket (4)
Hardware Pack (2)
4X
Split Helical Washer
for #8 Screw
PN# 500-14220
Rev. C, 06/11
