Offline IO configuration
4

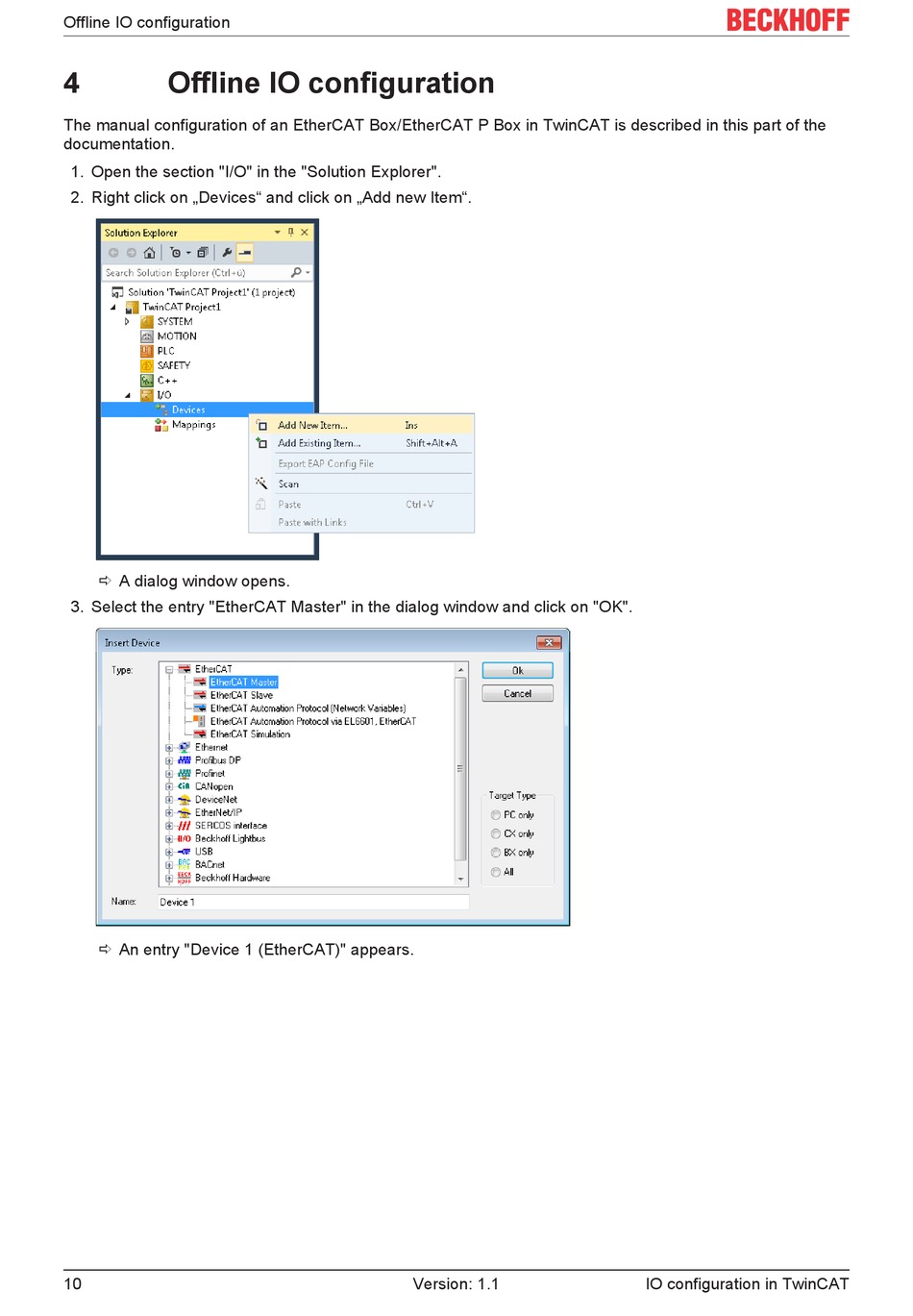

Offline IO configuration
The manual configuration of an EtherCAT Box/EtherCAT P Box in TwinCAT is described in this part of the
documentation.
1. Open the section "I/O" in the "Solution Explorer".
2. Right click on „Devices" and click on „Add new Item".
ð A dialog window opens.
3. Select the entry "EtherCAT Master" in the dialog window and click on "OK".
ð An entry "Device 1 (EtherCAT)" appears.
10
Version: 1.1
IO configuration in TwinCAT
