Summary of Contents for GYROZEN 416

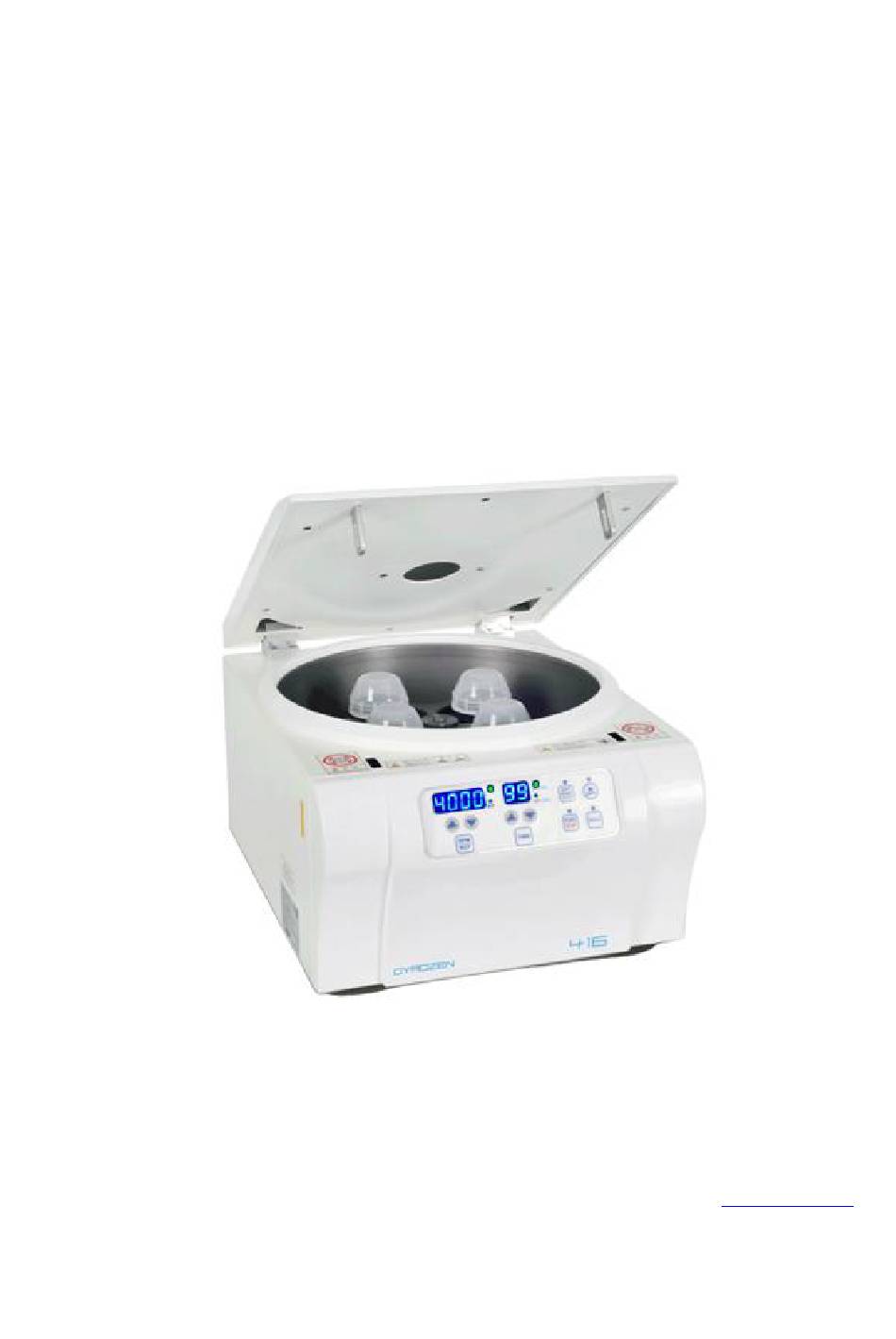

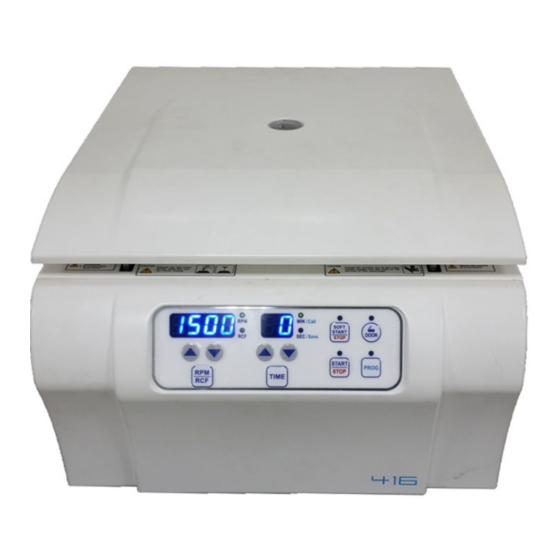

- Page 1 Low-Speed Centrifuge Operation Manual GYROZEN Co., Ltd. 1F & 5F, 16 Arayuk-ro, Gimpo-si, Gyeonggi-do, KOREA Tel) +82-2-2274-1107, FAX) +82-2-3471-8174 www.gyrozen.com UM-416(E)(Rev. )
-
Page 2: Table Of Contents
Outer part of instrument .......................... 12 Chamber ..............................12 Shaft ................................ 12 Rotor ............................... 12 Transportation of the instrument ....................... 12 Troubleshooting ............................13 Checklist ..............................13 Error Codes ............................... 13 Rotors and Accessories ..........................15 Product Range ............................. 19 ................................20 Low-Speed Centrifuge 416... -
Page 3: Meanings Of Symbols & Safety Precautions
ALWAYS position the instrument with enough space on each side of instrument to ensure proper air circulation. ALWAYS install the instrument within a temperature and humidity controlled environment (Permissible ambient temperature: 5 ~ 35 °C, Relative humidity: ≤ 85%). Low-Speed Centrifuge 416... - Page 4 Should not use incompatible rotors and accessories. Only use the rotors manufactured by GYROZEN Co., Ltd., appropriate centrifugal tubes and adaptors to hold sample containers tight in the rotors. Before operating the instrument, check if the rotor and the lid are securely fastened.
-
Page 5: Product Description & Technical Specifications
Max. capacity Swing-out 4 x 100 ml Time control Timed < 100 min or continuous RPM / RCF conversion ≤ 52 Noise level (dB) ≤ 20 / ≤ 25 ACC / DEC (sec) SOFT START / STOP Low-Speed Centrifuge 416... -
Page 6: Unpacking
3. Unpacking Motor Protecting Device: a motor fixing cushion (Polyethylene (PE) foam) is placed in the chamber of 416 centrifuge to prevent possible damages to the imbalance sensor caused by motor shaking during shipping or relocation. Motor Fixing Cushion in 416 ☞... -
Page 7: Installation
Hang the appropriate buckets into the rotor. Load an identical bucket at each wing (Do not leave any vacant wing without bucket. All wings should hold identical bucket.). Remove dirt or dust around hooks of rotor and hanging part of bucket. Low-Speed Centrifuge 416... -
Page 8: Positioning Of Sample Tubes
Otherwise, it can cause noise or vibration, which may damage the instrument. ☞ For safety, the ‘Imbalance Cutoff’ function is turned on, when there is weight imbalance of the loaded tubes (Error 8, Imbalance error). Please refer to 7. Troubleshooting. Low-Speed Centrifuge 416... -
Page 9: Operation
5-2-2. Setting the RCF Value ▶ Speed setting unit: 1 xg Press a [RPM/RCF] button twice. RCF MODE is on by pressing the [RPM/RCF] button twice. ▲▼ Press the [ ] buttons to change input value. Low-Speed Centrifuge 416... -
Page 10: Setting The Time Value
The door is automatically opened when the operation is completed. When operating in the [SOFT] mode, the operation cannot be stopped by pressing the [START/STOP] button. 5-6. Program Save / Recall Action 5-6-1. Program Save Set parameters (Refer to 5-2 ~ 5-3). Low-Speed Centrifuge 416... -
Page 11: Emergency Door Release
When you turn on the instrument but it does not power on at all, please check the Power Switch, the connection of the Power Outlet and the Power Socket. If the status keeps going, replace the fuse as the following instruction. Low-Speed Centrifuge 416... -
Page 12: Maintenance
If the rotor cannot be easily removed from the shaft, do not pull the rotor by force and call a service engineer authorized by GYROZEN Co., Ltd. 6-4. Rotor If any parts become contaminated, clean them with soft wet cloth and keep the rotor dry. -
Page 13: Troubleshooting
Remove the dirt at the door latch and keep the door completely closed. If the Can’t close the door door is closed by any reasons, please contact GYROZEN service team. Please check if the table and the instrument keep level. - Page 14 Engineer of your local GYROZEN’s partner. If the installed software has any bugs, this message may come up. Contact a Service Engineer of your local GYROZEN’s partner and get the firmware upgrade. Wire disconnection or tuning of the instrument Error 7...
-
Page 15: Rotors And Accessories
8. Rotors and Accessories Low-Speed Centrifuge 416... - Page 16 Low-Speed Centrifuge 416...
- Page 17 Low-Speed Centrifuge 416...
- Page 18 Low-Speed Centrifuge 416...
-
Page 19: Product Range
9. Product Range Low-Speed Centrifuge 416...
