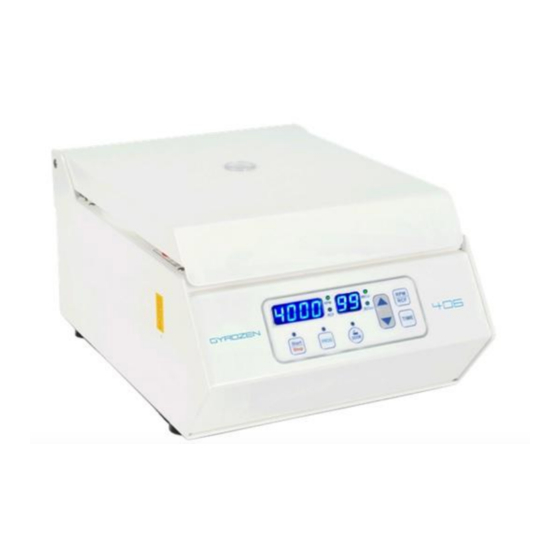

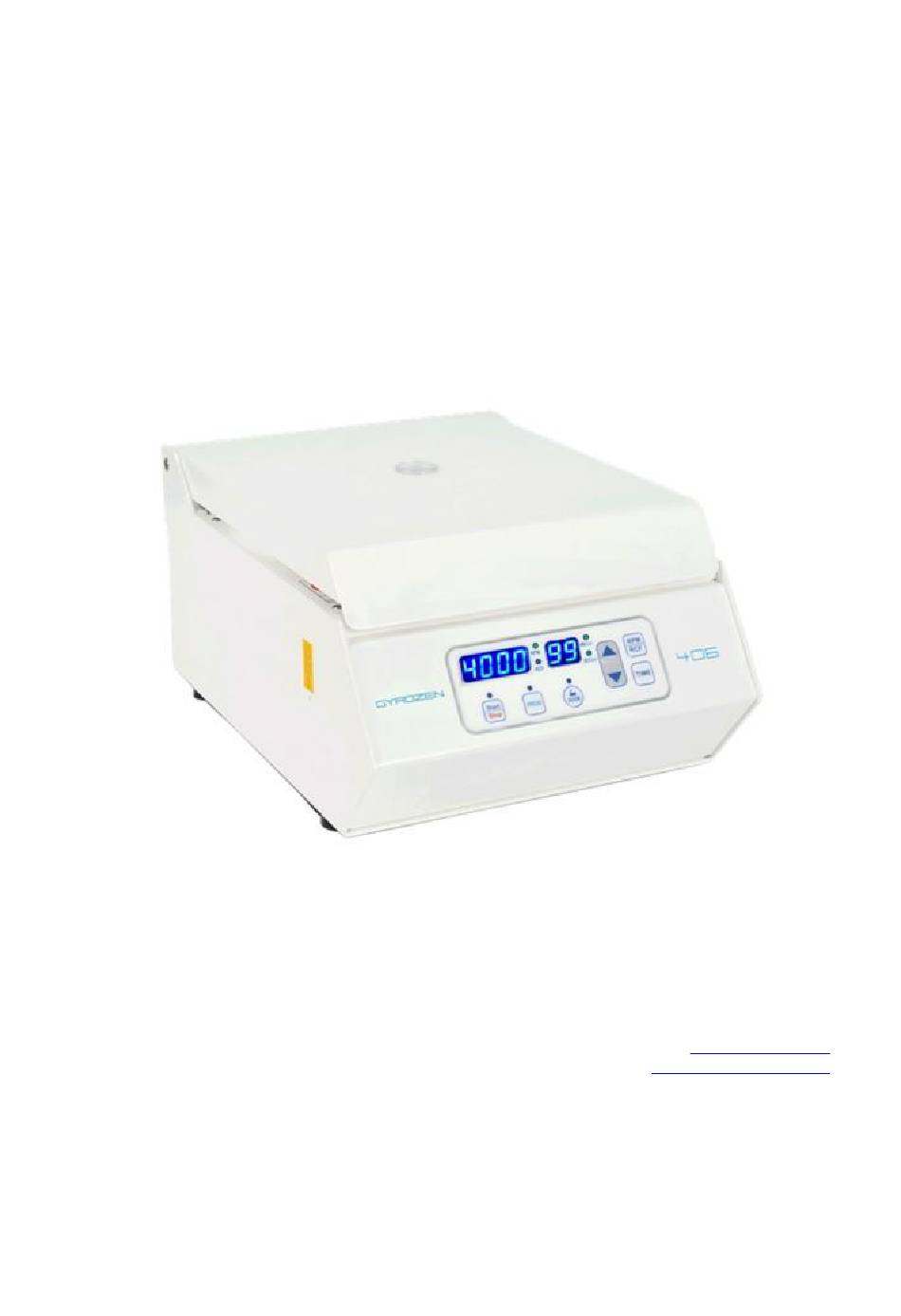

- Page 1 Low-Speed Centrifuge User’s Manual Manufacturer: GYROZEN Co., Ltd. 1F & 5F, 16 Arayuk-ro, Gimpo-si, Gyeonggi-do, KOREA Tel) +82-2-2274-1107, FAX) +82-2-3471-8174 info@gyrozen.com http://www.gyrozen.com UM-406(E)(Rev.2), 20210121...
-
Page 2: Table Of Contents
5-4. Rotor ............................... 11 5-5. Transportation of the Instrument ....................... 12 Trouble Shooting ............................12 6-1. Check List ............................... 12 6-2. Error Code ..............................12 Rotors and Accessories ..........................14 Product Range ............................. 15 CE ................................16 Low-Speed Centrifuge 406... -
Page 3: Meanings Of Symbols & Safety Precautions
ALWAYS install the instrument within a temperature and humidity controlled environment. (Permissible ambient temperature: +5°C ~ +35 °C, Relative humidity: ≤ 85%) Before connecting the power, check the rated voltage. Should not use unapproved rotors and accessories. Low-Speed Centrifuge 406... - Page 4 Only use rotors from Gyrozen Co., Ltd. with appropriate centrifugal tubes and suitable adaptors to embrace sample containers tightly enough inside rotors. Before operating the instrument, check if the rotor and the rotor lid are securely fastened. Should operate the instrument with a rotor properly installed and secured to the motor shaft.
-
Page 5: Product Description & Technical Specifications
2. Product Description & Technical Specifications 2-1. Product Description Cat no. GZ-0406 includes GRA-15-6A. 2-2. Technical Specifications Max. RPM/RCF 4,000 rpm/ 2,075 xg Max. capacity 6 x 15 ml Time control Timed, < 100 min or continuous RPM/RCF conversion Low-Speed Centrifuge 406... -
Page 6: Installation
Connect the AC Power cord at the power socket on the right back of the instrument. Turn on the instrument by pressing a switch on the right side of the instrument. Press the ‘Door’ button to open the door. Low-Speed Centrifuge 406... -
Page 7: Rotor Coupling And Disassembling
Tubes should be placed in the rotor with same amount of samples at symmetrical positions. Only use appropriate centrifugal tubes and do not exceed the speed beyond the tube’s max. g-force. For safety, fill the sample for 70~80% in the tubes. Low-Speed Centrifuge 406... -
Page 8: Operation
Use to set time, available range up to 99 min 59 sec (00: continuous) 4-2. Setting the RPM/RCF Value ▶ Maximum RPM/RCF: 4,000 RPM/ 2,700 x g Action 4-2-1. Setting the RPM Value ▶ Speed setting unit: 10rpm or 100rpm Press the [RPM/RCF] button once. Low-Speed Centrifuge 406... -
Page 9: Setting The Time Value
] buttons to change input value. After keeping holding finger on the [▲▼] buttons for 5 seconds, the unit of setting value is changed to 10 sec. from 1 sec. Press the [TIME] button again for saving. Low-Speed Centrifuge 406... -
Page 10: Start / Stop
The door can be unlocked manually with Emergency Door-Lock Release Tool through the emergency opening hole. Find the emergency hole at the left side of the instrument Insert the Emergency Door-Lock Release Tool into the hole and push it until the door is released. Low-Speed Centrifuge 406... -
Page 11: Replacement Of Fuse
If any parts are contaminated with samples, clean the rotor with soft wet cloth and keep the rotor dry. Be careful not to make scratches inside or on the surface of rotors. Any small scratches can cause Low-Speed Centrifuge 406... -
Page 12: Transportation Of The Instrument
If the speed does not reach 200 rpm within 2 seconds after motor starts to operate, this message may appear. Check whether the motor is normally working or not. Error 1 If the error message does not disappear, please contact a Service Engineer of your local GYROZEN’s partner. Low-Speed Centrifuge 406... - Page 13 Engineer of your local GYROZEN’s partner. If the installed software has any bugs, this message may come up. Contact a Service Engineer of your local GYROZEN’s partner and get the firmware upgrade. Wire disconnection or tuning of the instrument Error 7...
-
Page 14: Rotors And Accessories
7. Rotors and Accessories Low-Speed Centrifuge 406... -
Page 15: Product Range
8. Product Range Low-Speed Centrifuge 406... - Page 16 9. CE Low-Speed Centrifuge 406...
