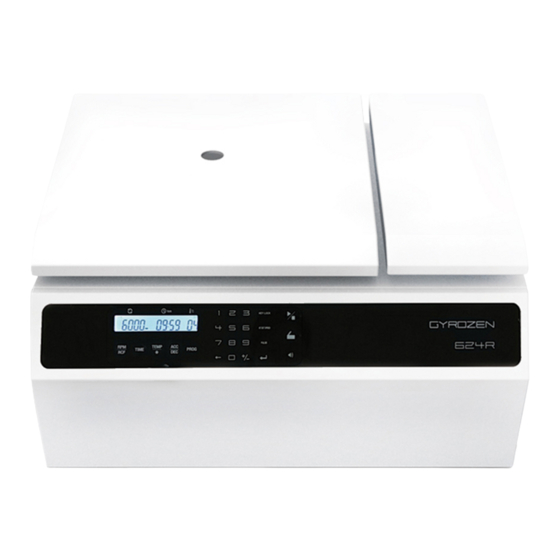

- Page 1 Compact Bench-Top Refrigerated Centrifuge 624R User’s Manual Manufacturer: GYROZEN Co., Ltd. 1F & 5F, 16 Arayuk-ro, Gimpo-si, Gyeonggi-do, KOREA Tel) +82-2-2274-1107, FAX) +82-2-3471-8174 info@gyrozen.com http://www.gyrozen.com UM-624R(E)(Rev. ) 2...
- Page 2 Compact Bench-Top, Refrigerated Centrifuge 624R...
- Page 3 Compact Bench-Top, Refrigerated Centrifuge 624R...
-
Page 4: Table Of Contents
6-2. Chamber ............................20 6-3. Shaft .............................. 20 6-4. Rotor ............................. 20 6-5. Transportation of Instrument ....................20 7. Trouble Shooting ..........................21 7-1. Check List ............................ 21 7-2. Error Code ........................... 21 8. CE ................................24 Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 5: Meanings Of Symbols & Safety Precautions
ALWAYS position the instrument with enough space on each side of instrument to ensure proper air circulation. ALWAYS install the instrument within a temperature and humidity controlled environment. (Permissible ambient temperature: +5°C ~ +35 °C, Relative humidity: ≤ 85%) Compact Bench-Top, Refrigerated Centrifuge 624R... - Page 6 Should not use unapproved rotors and accessories. Only use rotors from GYROZEN Co., Ltd. with appropriate centrifugal tubes and suitable adaptors to embrace sample containers tightly enough inside rotors. Before operating the instrument, check if the rotor and the rotor lid are securely fastened.
- Page 7 If the power input is more than +/- 10% of the recommended voltage or fluctuates frequently, it may cause malfunction of the instrument and often result serious damage. Install the instrument at the place without any kind of corrosive gases. Compact Bench-Top, Refrigerated Centrifuge 624R...
-
Page 8: Product Description & Technical Specifications
-10 ~ +40 FAST cool button Time control Pulse, timed < 10 hr or continuous Time counting modes Selectable, at set speed or from starting RPM/RCF conversion Noise level (dB) ~ 60 ACC/DEC 9/10 steps Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 9: Unpacking
3. Unpacking Motor Protecting Device: a motor fixing cushion (Polyethylene (PE) foam) is placed in the chamber of 624R centrifuge to prevent possible damages to the imbalance sensor caused by motor shaking during shipping or relocation. Motor Fixing Cushion in 624R ☞... -
Page 10: Installation
Power Failure: If there is any power failure during operation, lid is not opened with „Lid‟ button. Lid can be opened only when the operation is completely stopped and the power is on again. If you want to open the lid at the power failure, please refer to „5-9. Emergency Lid-Lock Release‟. Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 11: Rotor Coupling And Disassembling
When you run a fixed angle rotor, make sure that the rotor lid is tightly closed. If you don‟t close the rotor lid completely, it will be crushed. ☞ For operational safety, this instrument has the automatic rotor recognition function. Compact Bench-Top, Refrigerated Centrifuge 624R... - Page 12 Otherwise, it results noise and vibration, which eventually damage the instrument ☞ For safety, the „Imbalance Cut Off‟ function will be occurred, if there is imbalance of loading tubes (Error 8, Imbalance error). Please refer to 7. Trouble Shooting. Compact Bench-Top, Refrigerated Centrifuge 624R...
-
Page 13: Operation
Use for quick runs □ Enter Use for completion of data setting □ Start/Stop Use to start and stop operation □ Lid Use to open instrument lid □ Sound Use to set the number of sound and volume Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 14: Setting The Rpm/Rcf Value
*[AT SET SPEED] lamp turns on: From t1 to t2 *[AT SET SPEED] lamp turns off: From t0 to t2 Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 15: Setting Temperature And Fast Cool
▶ Temperature can be set from -10℃ to 40℃ ▶ Temp setting unit: 1 ℃ Touch the [TEMP] button. Default or latest temperature value blinks on the display window. Touch the number buttons to change temperature. Touch the [ENTER] button to complete setting. Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 16: Acceleration / Deceleration
If you do not touch the number button for 15 seconds, the setting mode is cleared. If wrong number is entered, touch [] button and change the value again. Fix the DEC level by touching [ENTER] button. Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 17: Program Saving & Recalling
[ENTER] button. If you do not touch the number button for 15 seconds, the setting mode is cleared. If wrong number is entered, touch [] button and change the value again. Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 18: Start/Stop
3. Fix the value by touching [ENTER] button. Sound LEVEL: 0~10 (0: silent) 5-8-2. Setting the Repeat Count of End Alarm 1. Touch [AT SET SPEED] button for more than 2 seconds. „Sound rPt‟ appears on the display window. Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 19: Pulse
Manual opening should be performed only when spinning is completely stopped. Otherwise, harmful damage will be accompanied to not only operators but samples. After opening the lid manually, it is recommended to wait until normal electricity comes back. Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 20: Maintenance
Do not mount a rotor in any cases of movement. Fill inside the chamber with proper materials to keep the motor shaft on place and not to be influenced by physical pressure. Compact Bench-Top, Refrigerated Centrifuge 624R... -
Page 21: Trouble Shooting
Error 2 -Remove the dirt at the lid latch and then close the lid completely again. Check the Lid LED on the display window. If the error code shows continuously, please call GYROZEN Field Service Engineer. Compact Bench-Top, Refrigerated Centrifuge 624R... - Page 22 Rotor ID or RPM Error 9 (Please refer to 4-2. Rotor Coupling and Disassembling.) Sensor - If the error code shows continuously, please call GYROZEN Field Service Engineer. - If the instrument is not reached to setting temperature within an Chamber Temp.
- Page 23 - If the sensors or cables of the lid lock system do not normally work, Error this message is appeared. Lid Lock - Please contact a Service Engineer of your local GYROZEN‟s 20-27 partner. * Any wire disconnection or tuning of the instrument must be performed only by a service engineer who is authorized by GYROZEN Co., Ltd.
