Summary of Contents for GYROZEN MD406

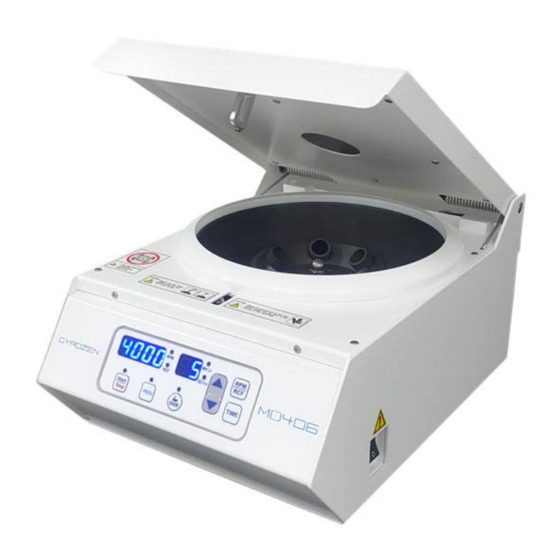

- Page 1 Rev.2 GZ-UM-406E(2017.12.01.) 406(MD406) Low Speed Centrifuge User's Manual Gyrozen Co., Ltd. 1F, 4F, B2 B-Station, 30-12, Gyeryong-ro 141beon-gil, Yuseong-gu, Daejeon, Korea Tel) +82(42)719-8200 Fax) +82(42)826-9848...
-
Page 2: Device Name
GZ-UM-406E(2017.12.01) Page. 1 / 16 ▶ Device Name_ Centrifuge ▶ Model Name_ 406(MD406) ▶ Manufacturer_ Gyrozen Co., Ltd. ▶ Contact_ 1F, 4F, B2 B-Station, 30-12, Gyeryong-ro 141beon-gil, Yuseong-gu, Daejeon, Korea Tel) +82(42)719-8200 Fax) +82(42)826-9848 ▶ Intended use_ This device is used for centrifugation of blood to prepare it for transfusion or autotransfusion. - Page 3 Rev.2 GZ-UM-406E(2017.12.01) Page. 2 / 16 ▶ Description 1) Main body NAME DESCRIPTION Door Used to protect the inside chamber Door Striker A lock to keep the door closed To keep the inside of the device cool and to check rotation Air vent and Window speed To help users to open the door conveniently and keep the door...
- Page 4 Rev.2 GZ-UM-406E(2017.12.01) Page. 3 / 16 2) Control panel NAME DESCRIPTION FND Display Shows the data of each function Time Display Shows the time setting Up & down arrow Uses to change input data RPM/RCF Uses to switch the RPM/RCF display TIME Uses to set test time up to 99 min 59 sec (00 : continuous) START/STOP...
- Page 5 GZ-UM-406E(2017.12.01) Page. 4 / 16 4) Rotor ① Angle rotor (GRA-15-6A): GRA-15-6A is a basic rotor for 406 (MD406), and users can insert 6 tubes to the rotor. The rotor can be easily inserted and removed from the main body.
- Page 6 Rev.2 GZ-UM-406E(2017.12.01) Page. 5 / 16 ▶ Check delivered items Check if there is every component. The delivery list is followed. ① Main body, 1ea ② Power cable, 1ea ③ Emergency door open tool, 1ea ④ User’s manual, 1ea ⑤ Basic Rotor (GRA-15-6A), 1ea ⑥...
- Page 7 Rev.2 GZ-UM-406E(2017.12.01) Page. 6 / 16 3) Unpacking the instrument ① Open the box and lift out the instrument carefully together with the safety padding. ② Remove the safety padding and vinyl wrap. ③ Place the device on the proper place mentioned above. 4) On/off and the door open ①...
- Page 8 Rev.2 GZ-UM-406E(2017.12.01) Page. 7 / 16 ④ The RCF value you set will be fixed after 3 seconds, and the RCF LED light will stop blinking. 3) Time : The time can be displayed up to 99 minutes and 59 seconds, and the “TIME DISPLAY” will show the current time value in 2 digits.
- Page 9 Rev.2 GZ-UM-406E(2017.12.01) Page. 8 / 16 ④ Press the [PROG] button again to complete the saving. If you do not press the [PROG] buttons for 5 second, the setting mode is cleared. 8) Program recalling ① To recall the saved program, just press the [PROG] button shortly.
- Page 10 Rev.2 GZ-UM-406E(2017.12.01) Page. 9 / 16 tightly assembled. 3) Position the plastic lid properly and press slightly down to close. 4) The rotor lid is disclosed by lifting up the knob. 5) To disassemble the rotor, rotate the rotor nut in a counterclockwise direction. ▶...
- Page 11 Rev.2 GZ-UM-406E(2017.12.01) Page. 10 / 16 ▶ Maintenance (3) - Regular Inspection 1) Rotors and tube racks need to be cleaned regularly. 2) General checklist - The spindle connector : This shall not be separated or bended. - The spindle bearing : Check its rotating conditions. It shall rotate smoothly without any noises. - The spring hinge : Check its tension.
- Page 12 Otherwise the door can be opened suddenly while running. 12) Repairing works shall be done only by the authorized personnel from GYROZEN Co., Ltd. 13) Remove any contamination of the device completely before you send it to the manufacturer for repairing.
- Page 13 Rev.2 GZ-UM-406E(2017.12.01) Page. 12 / 16 ▶ Tube Arrangement Each specimen shall be measured precisely before being put into each tube. Tube shall be arranged symmetrically in the rotor. If the weight of each side is different, there will be severe vibration, which can cause damages to a rotor and a shaft.
- Page 14 Rev.2 GZ-UM-406E(2017.12.01) Page. 13 / 16 ▶ Explanation for CE symbols Symbol Meaning Manufacturer Indicates the medical device manufacturer Date of manufacture Indicates the date when the medical device was manufactured Consult instructions for use Indicates the need for the user to consult the instructions for Caution Indicates the need for the user to consult the instructions for use for important cautionary information such as warnings and...
- Page 15 Rev.2 GZ-UM-406E(2017.12.01) Page. 14 / 16 Symbol Meaning Keep dry Indicates a medical device that needs to be protected from moisture Fragile, handle with care Indicates a medical device that can be broken or damaged if not handled carefully MembraPure GmbH B-Station, 30-12, Gyeryong-ro 141beon-gil, Neuendorfstr 20a 16761 Hennigsdorf, Berlin, Yuseong-gu,...
- Page 16 - Check connection of cable for RPM sensor. - Change RPM sensor. ※ Any wire disconnection or tuning of the instrument must be performed only by a service engineer who is authorized by GYROZEN Co., Ltd. MembraPure GmbH B-Station, 30-12, Gyeryong-ro 141beon-gil,...
- Page 17 Rev.2 GZ-UM-406E(2017.12.01) Page. 16 / 16 ▶ Technical Specification w Safety Standards EN 61010-1:2010, IEC 61010-020:2006 Class I Type B Applied parts w EMC Standard EN 61326-1:2006 w Classification according to Class IIa MDD 2007/47/EC w Max. RPM 4,000 rpm w Max. RCF 2,075 xg w Max.
