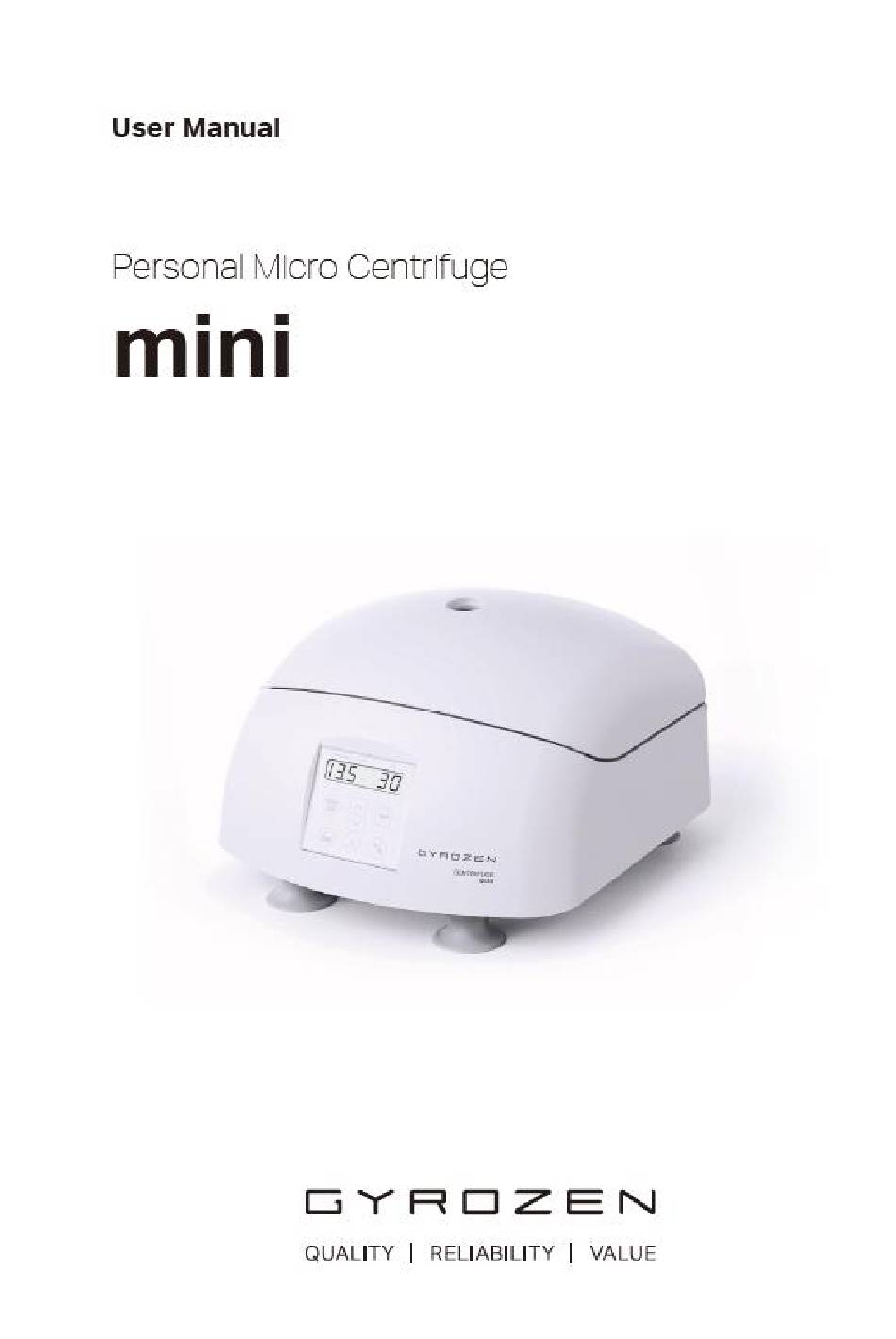

- Page 2 User Manual Authorised Representative : OBELISS.A Boulevard GénéralWahis53, B-1030 Brussels,BELGIUM UM-mini(E)(Rev.6) 2023.05.22 1 | www.gyrozen.com...
-
Page 3: Table Of Contents
Personal Micro Centrifuge, mini CONTENTS 1. Safety warnings and cautions ......................4 1.1. Safety label .................................. 4 1.2. Safety precautions ..............................5 1.3. Lifting and carrying ............................... 6 1.4. Transport, storage, Use conditions ........................6 2. Product description ...........................7 2.1. Intended use ................................7 2.2. - Page 4 5.5. Movement of instrument ............................19 6. Trouble shooting ..........................19 6.1. Check List ..................................19 6.2. Error massage ................................20 7. Equipment Disposal ......................... 21 8. Rotor & Accessories ........................22 9. CE Declaration of Conformity ......................24 3 | www.gyrozen.com...
-
Page 5: Safety Warnings And Cautions
Personal Micro Centrifuge, mini This user manual contains detailed instructions to operate the Centrifuge mini. For proper use and maintenance, be sure to read the instructions. 1. Safety warnings and cautions 1.1 Safety Label Labels attached to the main body provide usage and safety information. - Page 6 WHO Risk Group Ⅱ, the national regulations of “Laboratory Bio-safety Manual” must be observed. 19. This device is used in research use only and must be operated by a professional who has received professional education, training and specialized skills for the using procedure. 5 | www.gyrozen.com...
-
Page 7: Lifting And Carrying
Personal Micro Centrifuge, mini 1.3 Lifting and carrying When moving the product, more than two people should grab it from the front and back as shown in Figure. 1.4 Transport, Storage, Use conditions Use Conditions Storage and transport conditions -Indoor use -Ambient Temperature: -10 ∼... -

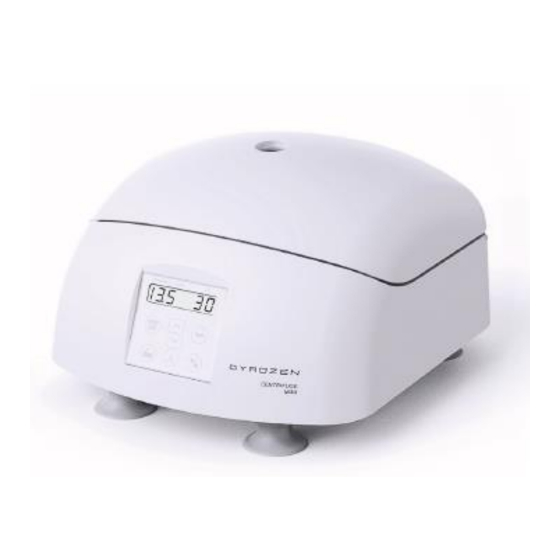

Page 8: Product Description
3. Power Socket & Switch 2.3 Accessories User AC Power Adaptor for Manual Cord 02ml(12ea) - Cat No.GZ-1312, Microcentrifuge includes Fixed Angle rotor GRF-m2.0-12 and 12 of 0.2 mL adaptors. - The 0.5 mL adaptors and PCR tube rotor is optional. 7 | www.gyrozen.com... -
Page 9: Technical Specifications
Personal Micro Centrifuge, mini 2.4 Technical Specification 13,500rpm / 12,300 xg 6,000 rpm / 1,850 xg Max. RPM/RCF (GRF-m2.0-12) (GRA-s0.2-32) Max. Capacity 12 x 2.0 ml tube 4 x 8 tube PCR strips Time control Pulse or Timed ≤ 30min... -
Page 10: Installation
Please refer to ‘4.6. Manual Lid-lock release’. But DO NOT use the Manual Lid-lock release as regular procedure to open the centrifuge. Use it only if a malfunction or power failure occurs and only when you have made sure that the rotor has stopped spinning. 9 | www.gyrozen.com... -
Page 11: Install And Remove A Rotor
Personal Micro Centrifuge, mini 3.2 Install and Remove a Rotor Before installing a rotor If necessary, remove any dust, foreign objects or residue from the chamber. Wipe the motor shaft and rotor hub from the bottom side of the rotor with a clean cloth. -
Page 12: Sample Tube Loading
√ rated to or above the selected RCF to be spun at √ used at their minimum fill volume and not above their maximum fill volume √ undamaged and not used above their design life (age or number of runs) 11 | www.gyrozen.com... -
Page 13: Operation
Personal Micro Centrifuge, mini Correct loading examples Incorrect loading examples Operation 4.1 Key functions of control panel Display Window Setting Buttons Function Buttons Display Window □ Shows speed, time, status of running and the status of lid opening or closing. -
Page 14: Setting The Rpm / Rcf Value
▶ The rotation speed is indicated as RPM (Rotation Per Minute) / RCF (Relative Centrifugal Force) ▶ The speed range of mini is 1,200 ~ 13,500 rpm and 100 ~12,300 xg. ▶ Display value: multiply 1,000 to check real value. (Example: RPM display value 13.5 indicates RPM 13,500) ▶... -
Page 15: Setting The Time Value
Personal Micro Centrifuge, mini 3. After 5 seconds from pressing the input value, the setting value is saved. ▷ If you do not touch the number for 5 seconds, the setting mode is cleared. Note! When the PCR rotor is installed, please keep in mind that do not over speed at the max. -
Page 16: Start / Stop
2. While pulse key is pressed, it rotates to the Max. RPM of the rotor and decelerates immediately when pulse key is released. ▷ when the running is stopped, the lid is opened automatically with beeping sound. 15 | www.gyrozen.com... -
Page 17: Manual Lid-Lock Release
Personal Micro Centrifuge, mini Manual lid-lock release When the lid of the instrument is not opened automatically or by pressing [Lid] button due to an accidental power shut-off or any unexpected causes, you can manually open the lid by following the instruction. -
Page 18: Maintenance
Rotor has a good corrosion resistance. But corrosion rate is related with humidity, salt content and the amount of impurities in the atmosphere. 17 | www.gyrozen.com... -
Page 19: Movement Of Instrument
Personal Micro Centrifuge, mini Against Carbonate, chromate, acetate and sulfide (etc.) such as neutral aqueous solution, rotor has good corrosion resistance. But in the chloride solution, corrosion resistance will be bad. In the oxidation solution, depending on the increase of hydrogen ion concentration, the corrosion is increased. In the sulfate, phosphoric etc., acid, erosion takes place quickly and eroded in particular regard... -
Page 20: Trouble Shooting
1. The balanced way of installing of the rotor into the motor shaft 2. The completeness of fixing of the Rotor Check the balances of samples in the rotor. (Please refer to 4.3 ) If the sample ba 19 | www.gyrozen.com... -
Page 21: Error Massage
Personal Micro Centrifuge, mini 6.2 Error code If there is any error code with beeping sound, press [START/STOP] button to stop the beeping sound and press [ENTER] button to release of the error status. Error code Description Troubleshooting Error 1... -
Page 22: Equipment Disposal
This equipment is marked with the crossed out wheeled bin symbol to indicate that this equipment must not be disposed of with unsorted waste. The waste disposal guidelines of the individual EC countries might vary. If necessary, contact your supplier. 21 | www.gyrozen.com... -
Page 23: Rotor & Accessories
Personal Micro Centrifuge, mini Rotors and Accessories AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 22... - Page 24 User Manual 23 | www.gyrozen.com...
-
Page 25: Ce Declaration Of Conformity
Personal Micro Centrifuge, mini CE declaration of conformity AS : 02-3452-8966/070-8620-5350/techsupport@gyrozen.com | 24...
