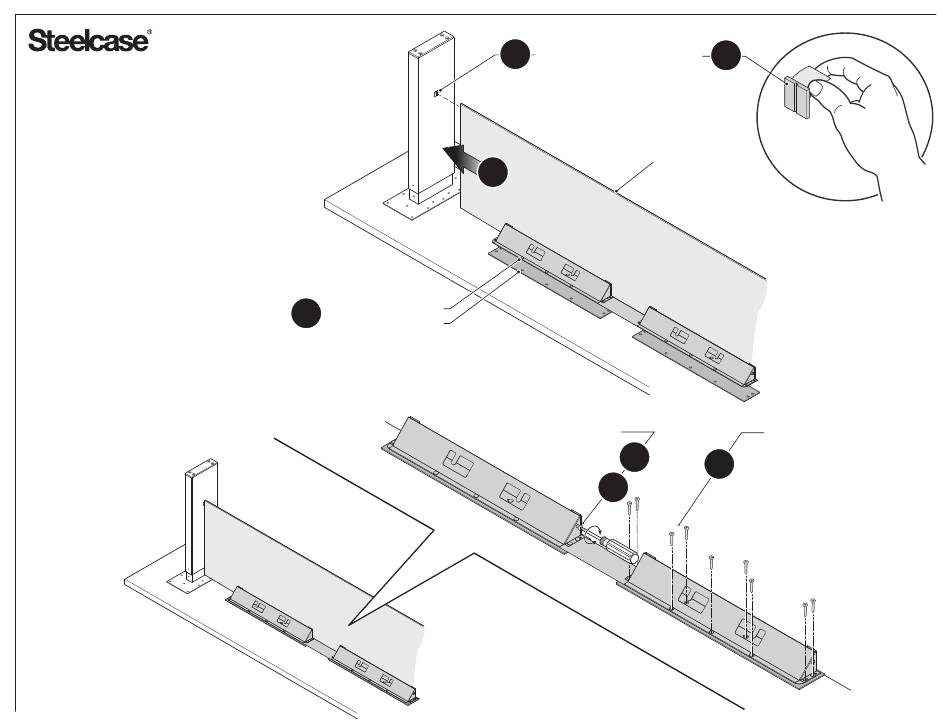

5.
a) Locate bumper on leg as shown.
b) Attach by peeling paper backing and
press into place. c) Locate spacers under
gussets to provide clearance of metal
mounting plate on column leg.
6.
Slide modesty panel into slot in bumper.
7.
Loosen end screws to provide angular
adjustment (2 or 4, dependant on size of
panel) as shown.
8.
Attach modesty panel to worksurface
using screws provided as shown.
9.
Tighten end screws (2 or 4, dependent
on size of panel) that were loosened in
step 7.
5c
Align holes in Gussets
with holes in Spacers
5a
Place spacers under
BUMPER
gussets to determine
location of Bumper.
MODESTY PANEL
6
#10 x .500" screws
(2) screws per gusset
7
9
5b
#10 x .875" screws
(9) screws per gusset
8
Page 8 of 10
939568005 Rev A
