3.5 Connections

2004919_i•en•2017-09-01

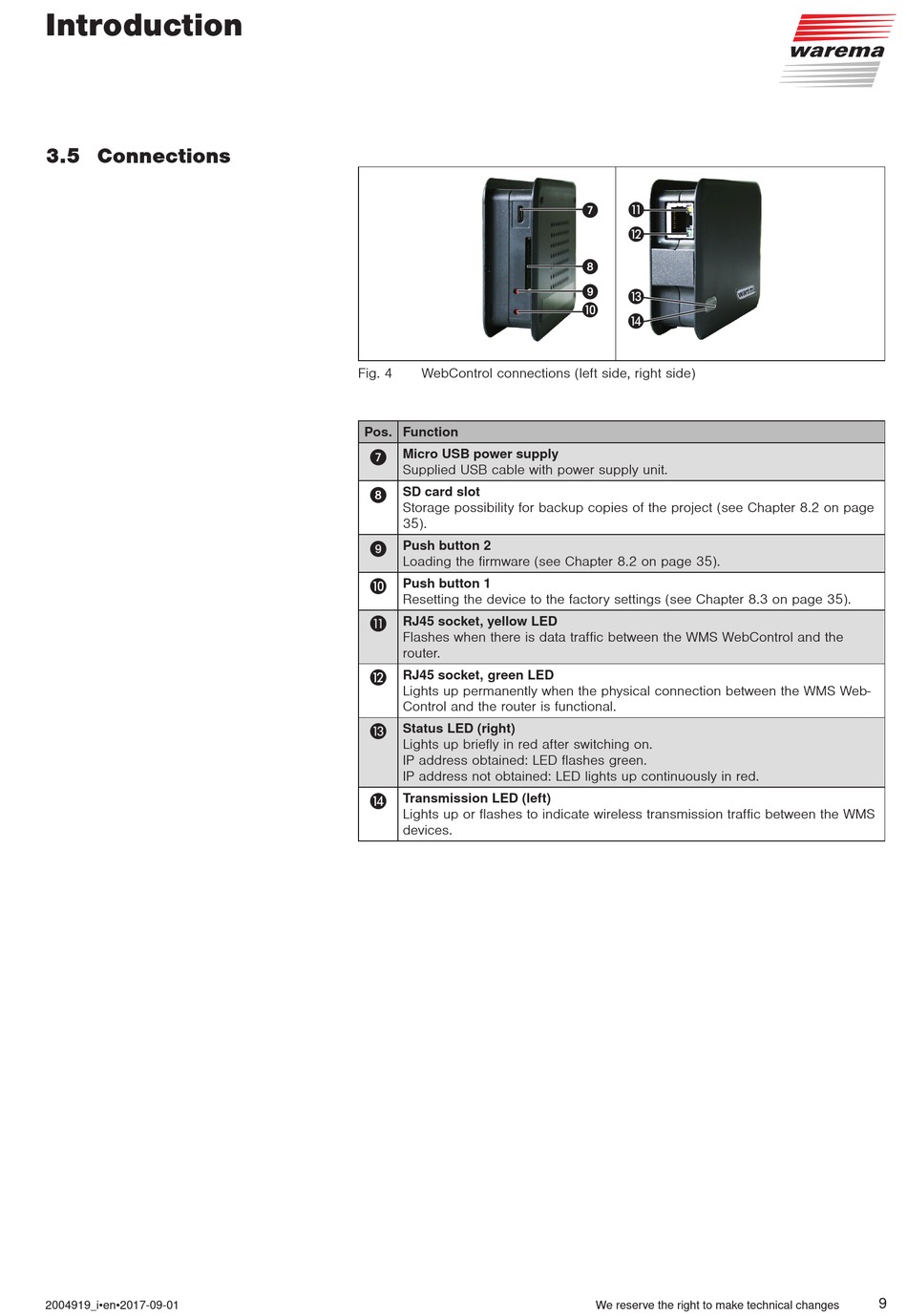

Fig. 4 WebControl connections (left side, right side)
Pos. Function
Micro USB power supply
7
Supplied USB cable with power supply unit.
SD card slot
8
Storage possibility for backup copies of the project (see Chapter 8.2 on page
35).
Push button 2
9
Loading the firmware (see Chapter 8.2 on page 35).
Push button 1

Resetting the device to the factory settings (see Chapter 8.3 on page 35).
RJ45 socket, yellow LED

Flashes when there is data traffic between the WMS WebControl and the
router.
RJ45 socket, green LED

Lights up permanently when the physical connection between the WMS Web-
Control and the router is functional.
Status LED (right)

Lights up briefly in red after switching on.
IP address obtained: LED flashes green.
IP address not obtained: LED lights up continuously in red.
Transmission LED (left)

Lights up or flashes to indicate wireless transmission traffic between the WMS
devices.
¸
¹
µ
