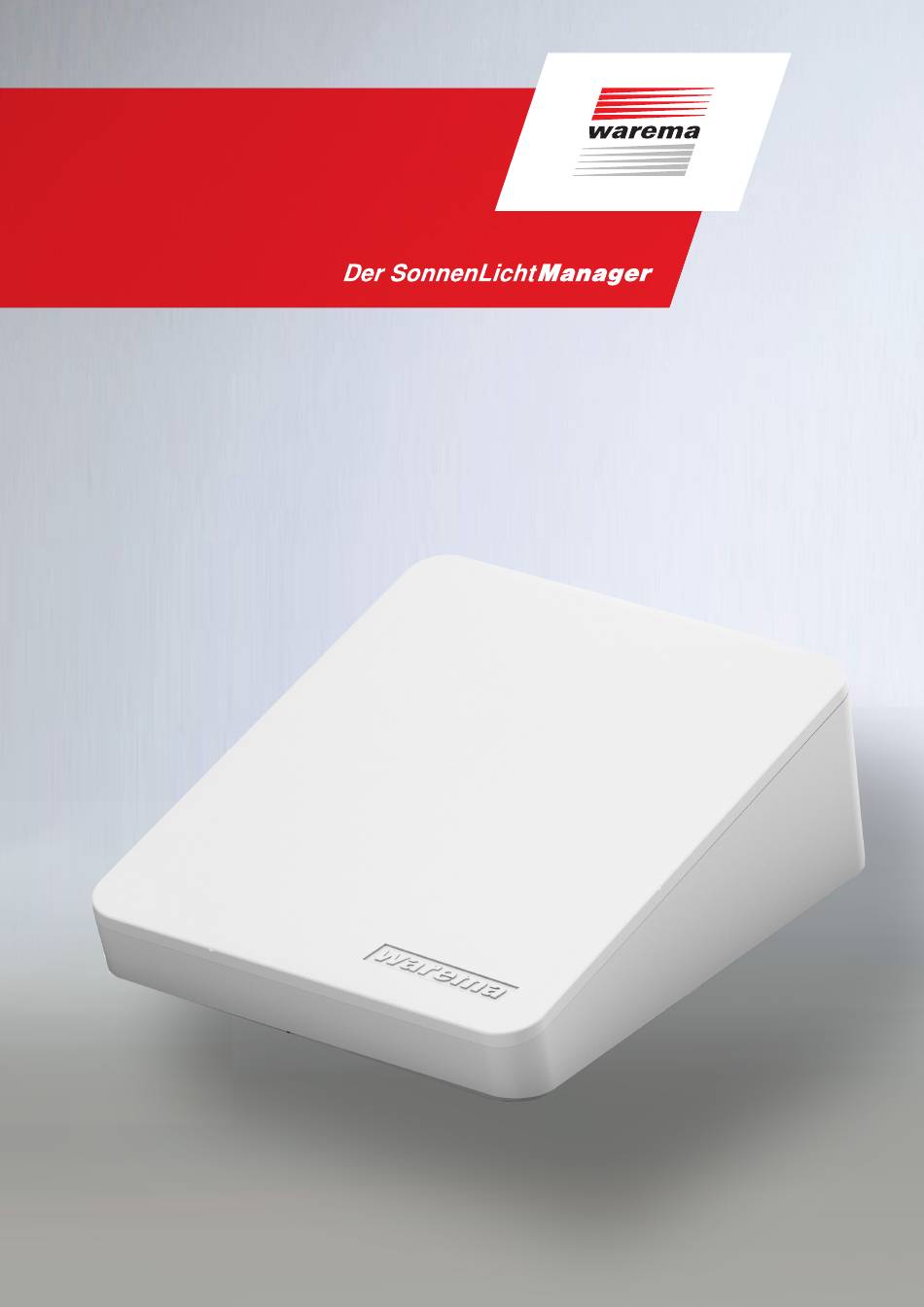

- Page 1 WMS WebControl pro Manual Valid from 1 April 2021 warema_2035145_alhb_en_v2...
- Page 2 Operating instructions, manuals and software are protected by copyright. All rights to the software are specified in the license agreement included. WAREMA and the WAREMA logo are trademarks of WAREMA Renkhoff SE. All other brand or product names included in this document are trademarks or registered trademarks of their respective owners.
-
Page 3: Table Of Contents
Parameterising control modes ................ 10 Parameterising settings ..................11 Calling up in the browser ................12 Installing the WMS WebControl pro app ............12 Operating on home WLAN ................13 Operating via the WAREMA Cloud ............... 14 Setting up the WAREMA plus account ............14 Logging the device into the WAREMA Cloud .......... - Page 4 System time ....................36 ......................37 Settings Troubleshooting ..................... 38 LED display on the WMS WebControl pro ............ 38 Restarting WMS WebControl pro ..............38 Resetting WMS WebControl pro to factory settings ........38 Fault causes ......................39 10 Technical data ....................40 We reserve the right to make technical modifications warema_2035145_alhb_en_v2•2021-04-01...
-
Page 5: Safety Instructions
Safety instructions 1 Safety instructions We have developed and tested the WMS products and this software in com- pliance with the basic safety requirements. Residual risks nevertheless remain! For this reason, please read this manual before commissioning and operat- ing the controls. It is very important that you adhere to the safety instructions listed in this section and the warning information contained in this manual. -
Page 6: Intended Use
CAUTION The WMS WebControl pro is for indoor use only. It is not water-proof. The operating range of radio remote controls is limited both by legal regula- tions for radio systems and structural factors. Sufficient radio reception must be ensured when planning the project. -
Page 7: Scope Of Delivery
Network cable Router Connect the WMS WebControl pro ① to the plug-in power supply unit ③ us- ing the USB cable ②. Connect the device to the network cable ④ on the configured router ⑤. To make the electrical connection, only use the accessories supplied in order to guarantee flawless operation. -
Page 8: Recommended Operating Systems And Browsers
Introduction WMS WebControl pro 1.7 Recommended operating systems and browsers Android operating system: The current version and the two previous versions are compatible. iOS operating system: The current version and the two previous versions are compatible. Browser: Microsoft Edge... -
Page 9: Functions
An Amazon Alexa skill is available for the WMS WebControl pro. 2.1 System clock The WMS WebControl pro can be used as a system clock. When this func- tion is activated, the WMS WebControl pro sends the time to the network at regular intervals. -
Page 10: Commissioning Via Wms Studio Pro
The control functions can only be switched on and off via the WMS WebControl pro. The WMS WebControl pro has its own time switch, and this can be activated in the Settings tab (see Chapter 3.3). -
Page 11: Parameterising Settings
Commissioning The time switch in the WMS WebControl pro is also called a "central time switch". The switching times specified here are relayed to the receivers as move commands. For additional information, see also Chapter 8.3.5 auf Seite 28. If you decide to use the central time switch, the time switch commands parameterised in the receivers will be deactivated. -
Page 12: Calling Up In The Browser
WMS network have been connected via WMS studio pro and are supplied with power. Call up WMS WebControl pro from a PC in the same WLAN from the brows- er: enter "http://webcontrol" into your browser address bar. The WMS WebControl pro interface appears. -
Page 13: Operating On Home Wlan
All WMS WebControl pro devices found will be displayed. Select the WMS WebControl pro you want and add it. The WMS WebControl pro will be displayed on the configuration page in the table. If multiple devices are displayed, select the line containing the one you want. -
Page 14: Operating Via The Warema Cloud
7.2 Logging the device into the WAREMA Cloud To be able to use a mobile device to access the WMS WebControl pro, it has to be logged into the WAREMA Cloud. Start the WMS WebControl pro app on the device. - Page 15 Cloud operation Activate cloud access if you want to operate outside of your home WLAN. The login screen for the WAREMA plus account will appear. Enter the access data into the input screen and log in. warema_2035145_alhb_en_v2•2021-04-01 We reserve the right to make technical modifications...
- Page 16 All WMS WebControl pro devices found will be displayed. Select the WMS WebControl pro you want and add it. The WMS WebControl pro will be displayed on the configuration page in the table. If multiple devices are displayed, select the line containing the one you want.
-
Page 17: Settings
Settings Settings In this menu, the cloud functions of the apps are set and additional information on the app is displayed. 7.3.1 Logging out Select the menu item log out Operation is now only possible via the home WLAN, no longer via the cloud. warema_2035145_alhb_en_v2•2021-04-01 We reserve the right to make technical modifications... -
Page 18: Configuration
7.3.2 Configuration With the menu item Configuration you can add, deregister or delete devices. Adding WMS WebControl pro Use the symbol to add another WMS WebControl pro. Both devices are displayed. We reserve the right to make technical modifications warema_2035145_alhb_en_v2•2021-04-01... - Page 19 Press the reset button and confirm the deregistration. Operation via the cloud is now no longer possible. Deleting WMS WebControl pro Select Delete to completely delete a WMS WebControl pro. Operation of the device then is no longer possible. warema_2035145_alhb_en_v2•2021-04-01...
-
Page 20: Operating Via The App
WMS WebControl pro are made (see Chapter 8.4 auf Seite 33). The WMS WebControl pro apps for Android and iOS can be used in the WLAN and via the WAREMA Cloud when out and about. They also have the... -
Page 21: Status
Operation 8.1.1 Status The status (absent/present) is displayed globally here for the WMS network. The status can be changed over by clicking on the switch. 8.1.2 Favourites The favourites, up to 20, for quick access can be added, deleted or rear- ranged at any time. - Page 22 Operation WMS WebControl pro The Selection tab shows a structure tree with all created rooms, scenarios and receivers. Click on the items to add them to or remove them from Favourites. Clicking on + or - expands or collapses the structure.
-
Page 23: Operation
Operation 8.2 Operation The user interface is identical for all apps: The rooms are at the higher level. Each room is assigned channels and scenarios (shown as tiles below the room concerned). Each channel can contain one or more receivers. Receivers can also be assigned multiple channels. -
Page 24: Editing The User Interface
Operation WMS WebControl pro 8.2.2 Editing the user interface The user interface can be extensively adapted. Do this by clicking on the Edit icon An existing channel can be edited by clicking on the pen symbol. As well as the channel name, the room assignment and the product type can be adapted. - Page 25 Operation Clicking on the Edit room list tile opens the room list. The rooms already created can be resorted via Drag&Drop on the arrow cross. New rooms can be created and existing ones deleted. warema_2035145_alhb_en_v2•2021-04-01 We reserve the right to make technical modifications...
-
Page 26: Control Modes
Control modes WMS WebControl pro 8.3 Control modes In the control mode tab, the control functions can be enabled or disabled for each receiver individually. The switching times can also be edited, added or removed for the time switch. The View tile allows the safety control functions (wind, precipitation, ice) to be displayed. -
Page 27: Precipitation
Control modes It requires a WMS Weather station eco or a WMS Weather station plus. During an active wind alarm, manual operation is disabled. 8.3.3 Precipitation The precipitation monitoring function closes or retracts the external textile sun shading system and windows in case of precipitation. Unlike the other safety functions, precipitation monitoring function can be overridden by the user on request. -
Page 28: Time Switch
When a WMS WebControl pro is created in WMS studio pro, you need to specify whether the central or the decentral time switches are to be used in the individual receivers. -
Page 29: Central Time Switch
Control modes - Time switch 8.3.7 Central time switch The WMS WebControl pro has its own higher-order time switch ("central time switch"). The switching times parameterised here are relayed to the re- ceiver as move commands. The switching times can be edited or deleted altogether by clicking on the gear wheel symbol. - Page 30 Set a time value for the switching time. Alternatively, select sunrise or sunset by clicking on the relevant symbol. The WMS WebControl pro calculates these values automatically, a deviation of ± 30 minutes can be set. Select the channels on which the switching time is to take effect.
- Page 31 Control modes - Time switch Set the position you want for each of the channels (click on the gear wheel). Click on Finish to complete the process. warema_2035145_alhb_en_v2•2021-04-01 We reserve the right to make technical modifications...
-
Page 32: Ice
Control modes WMS WebControl pro 8.3.8 Ice The ice monitoring safety function can be used to protect the external sun shading systems from damage due to ice formation, e.g. on the guide rails. If precipitation is detected when outside temperatures are cold, the unit is moved to the safety position and locked there. -
Page 33: System
System settings 8.4 System This menu is available only in the web app. All system-relevant settings of the WMS WebControl pro are made here. 8.4.1 Automatic SW update The automatic software update can be activated or deactivated. The time of the update can be changed as required. -
Page 34: Data Backup
WMS WebControl pro 8.4.2 Data backup The entire project in the WMS WebControl pro can be backed up as a file. A file is saved in the "Downloads" folder. This file can be used to load the backed up project status into this or a different WMS WebControl pro at any time. -
Page 35: Language Selection
With Automatic the language of the browser being used is selected. If this is not one of the languages named above, then English is used. 8.4.5 Network The network parameters set in the WMS WebControl pro are displayed and can be changed as required. warema_2035145_alhb_en_v2•2021-04-01... -
Page 36: Online Activation
Online update: Update via the WAREMA server 8.4.8 System time Display of the system time in the WMS WebControl pro. The system time can be reset if required. The automatic summertime/wintertime function can like- wise be activated or deactivated. -
Page 37: Settings
Mobile app settings 8.5 Settings This menu is available only in the WMS WebControl pro apps for Android and iOS. The Cloud functions of the apps are set and additional information on the app is displayed here. For a description of the Cloud registration procedure, see Chapter 7 auf Seite 14 warema_2035145_alhb_en_v2•2021-04-01... -
Page 38: Troubleshooting
9.3 Resetting WMS WebControl pro to factory settings Press the reset button on the underside of the WMS WebControl pro with a pointed object (e.g. ballpoint pen) for longer than 10 s. LED flashes orange three times. The WMS WebControl pro is returned to the factory setting. -
Page 39: Fault Causes
WLAN network of your router. your router is switched on and the WLAN is active. If not, log into the WLAN network. You are in your WMS WebControl pro app. ► The WLAN connection between the app Create a stable WLAN connection. -
Page 40: Technical Data
Technical data WMS WebControl pro 10 Technical data WMS WebControl pro min. typ. max. Unit Supply Operating voltage V DC Current RF transceiver Transmission frequency 2.40 2.48 Transmission power Reception sensitivity -101 WMS range (environment without interference) Housing WMS WebControl pro 122 ×... - Page 41 Time switch LED display 38 Central time switch 11, 29 Legal notes 2 Decentral time switch 28 Logging out 17 Troubleshooting 38 Logging the device into the WAREMA Cloud 13, 14 warema_2035145_alhb_en_v2•2021-04-01 We reserve the right to make technical modifications...
- Page 42 Index WMS WebControl pro Update 33, 36 WAREMA Cloud 14 WAREMA plus Account 14 WMS studio pro 10 Commissioning 10 Parameterising control modes 10 Parameterising operation 10 Parameterising settings 11 We reserve the right to make technical modifications warema_2035145_alhb_en_v2•2021-04-01...
- Page 43 warema_2035145_alhb_en_v2•2021-04-01 We reserve the right to make technical modifications...
- Page 44 WAREMA Renkhoff SE • Hans-Wilhelm-Renkhoff-Strasse 2 • 97828 Marktheidenfeld • Germany www.warema.de • info@warema.de...
