GA Kompakt
Operating and installation instructions
General

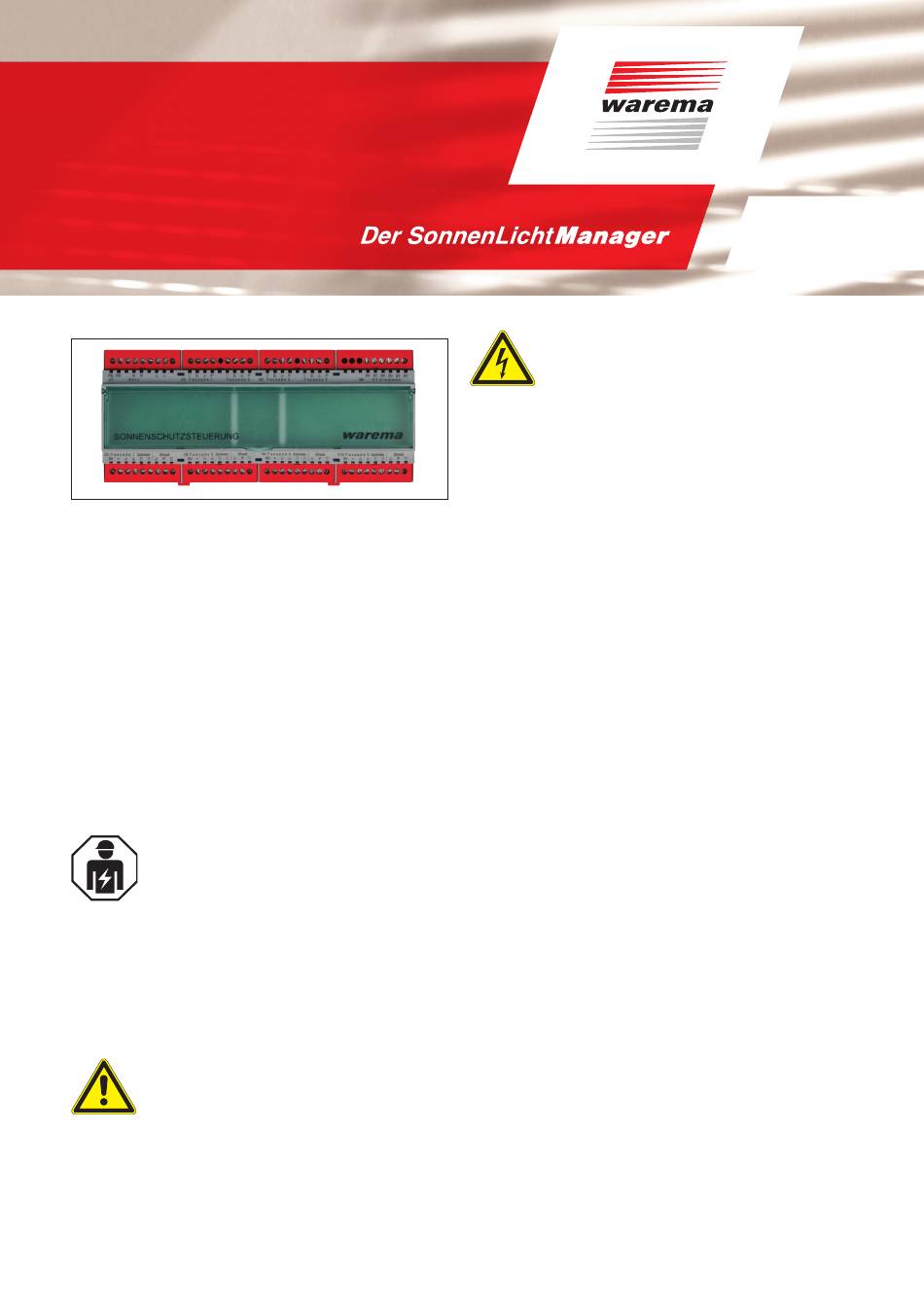

Fig. 1
GA Kompakt REG
The floor distribution control (GA) enables the central
control of the motor control units of a floor. The control
signals from the sun shading control system are forwarded
to all motor control units of a floor. The sunshade drives
of this floor can be distributed to up to four facades via
the GA and controlled separately. In addition, four facade
push buttons can be connected to the GA, which enables
the connected motor control units to be jointly operated for
each facade.
Intended use
The device was developed to control sun shading sys-
tems. The approval of the manufacturer must be obtained
for uses outside of the purposes listed in these instruc-
tions.
Safety instructions
W
ARNING
The electrical installation (assembly)/
dismantling must be performed by a cer-
tified electrician in accordance with the
electrical installation regulations published
by the Association of German Electrical
Engineers (VDE 0100) or the standards
and regulations of the country in which
the device is being installed. The specialist
must observe the installation instructions
included with the electrical device.
W
ARNING
If hazard-free operation cannot be
assumed, the device may not be started or
must be deactivated. This assumption is
justified
 I f the housing or the supply lines show signs
of damage,
 The device is no longer working
warema_816835_alhb_en_v4•2022-04-01
W
ARNING
It is important to comply with the follow-
ing instructions in the interest of personal
safety!
Do not allow children to play with the operating elements
of the control or remote control. Store the remote controls
out of range of children.
Make sure that no persons or objects are in the range of
movement of the driven parts (blinds, window, etc.).
Disconnect the device from the supply voltage if cleaning
or other maintenance work must be performed.
Function
Move commands from the local facade push buttons are
forwarded to the connected motor control units via the
GA Kompakt. After the button is pressed, the sun shad-
ing system moves in the corresponding direction and
stops after two seconds. If the button is pressed for more
than two seconds, the control will stay activated automati-
cally. The button may then be released. The sun shading
system moves until the fixed run time of three minutes has
expired. In order to clear the locked state and stop the
motor, briefly press the button for the opposite direction of
movement. The move commands from a sun shading con-
trol system have priority over the move commands from
the facade push buttons and are directly forwarded to the
motor control units. Operation via the facade push button
is blocked during a central command.
Installation
The motor control unit is, depending on the selected meth-
od of installation, designed for surface mounting (AP) or
for installation in a distributor (REG).
AP:
Insert a slotted screwdriver
(recommendation: 3.0 - 4.0mm blade) into
the respective cover opening (see Fig. 4)
and carefully pry the folding cover open.
Repeat the procedure for the second
opening of the cover. The cover can be
folded up when both catches have been
released. The second cover can be opened
in the same manner. Alternatively, the
surface-mounted variant can be mounted
on a DIN rail (TH 35-15).
We reserve the right to make technical modifications
Valid from
1 April 2022
Keep for future use.
1

Advertisement

loading

Summary of Contents for WAREMA GA Kompakt

  • Page 1 GA and controlled separately. In addition, four facade GA Kompakt. After the button is pressed, the sun shad- push buttons can be connected to the GA, which enables ing system moves in the corresponding direction and the connected motor control units to be jointly operated for stops after two seconds.
  • Page 2 Article number Distributors of electrical devices and disposal compa- GA Kompakt in AP hous- nies are obliged to take back the equipment free of 1002 743 charge. GA Kompakt in REG...
  • Page 3 * 4M: 132mm 6M: 184mm ** 4M: 158mm 6M: 210mm 119 mm 184 mm* 132 mm 60 mm 210 mm** 180 mm 158 mm Fig. 3 AP housing 210 mm / 12 MW 60 mm Fig. 4 REG housing warema_816835_alhb_en_v4•2022-04-01 We reserve the right to make technical modifications...
  • Page 4 Fig. 5 Connection example of the floor distribution control with MSE Kompakt I and MSE Standard. For additional wiring diagrams, see "Wiring diagrams for MSE, power supply units and GA", art. no. 816345. We reserve the right to make technical modifications warema_816835_alhb_en_v4•2022-04-01...
