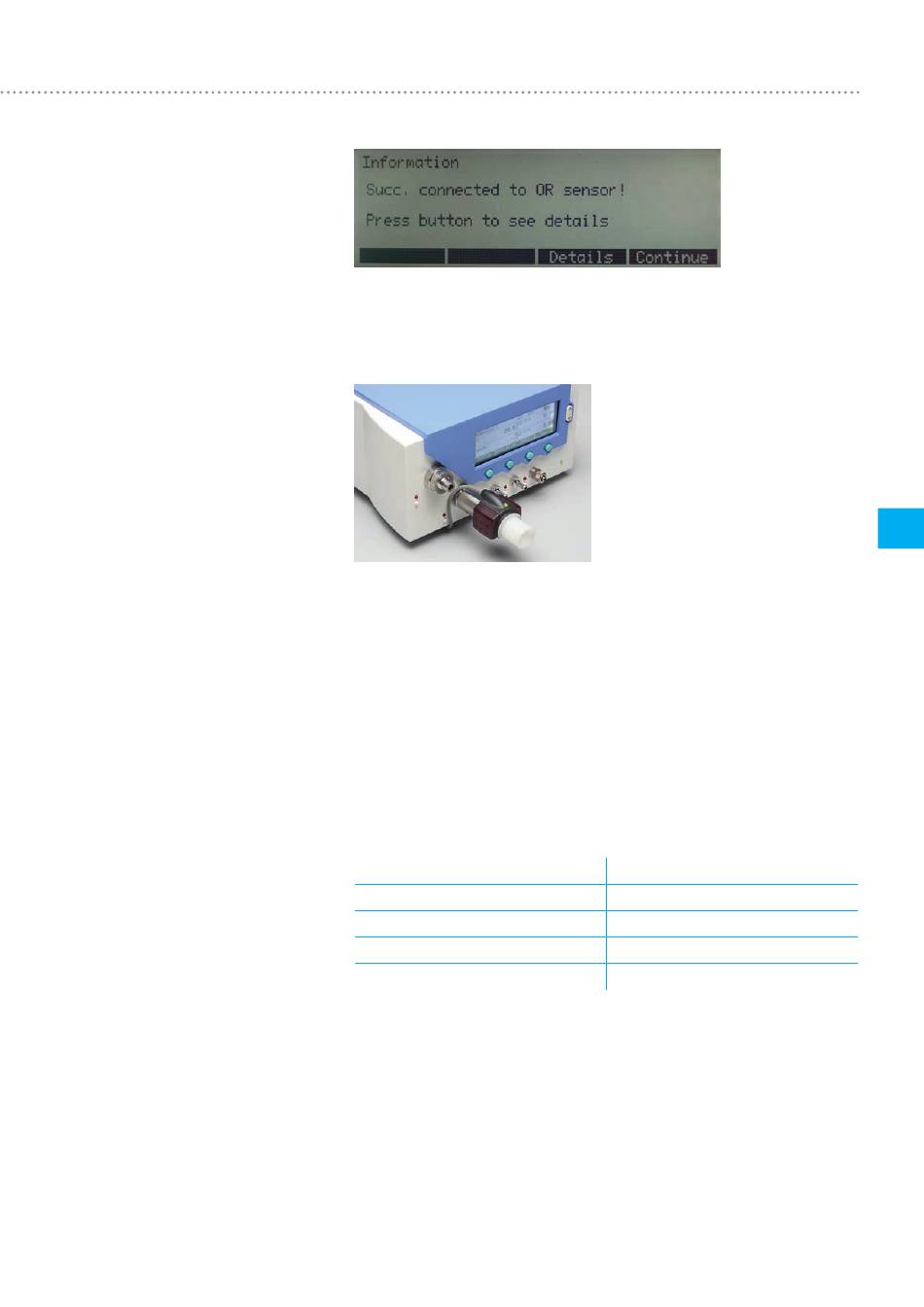

LED signal

IMT Analytics AG
This screen information indicates that a connection between FlowAnalyser and the
OR sensor has been successfully established.
Details lists all the technical details concerning the sensor.
The sensor must always be operated with the LED facing up.
MultiGasAnalyser must be placed between the gas source and
FlowAnalyser.
Depending on the direction of flow, MultiGasAnalyser can be operated at the front or
rear flow channel port of FlowAnalyser.
The LED located on the sensor head of MultiGasAnalyser indicates the following
status information:
Continuous green light
Continuous blue light
Continuous red light
Flashing red light
Flashing green light
MultiGasAnalyser OR-703
System OK
Anaesthetic agent exists
Sensor error
Please check the adapter
Calibration of the OR sensor
