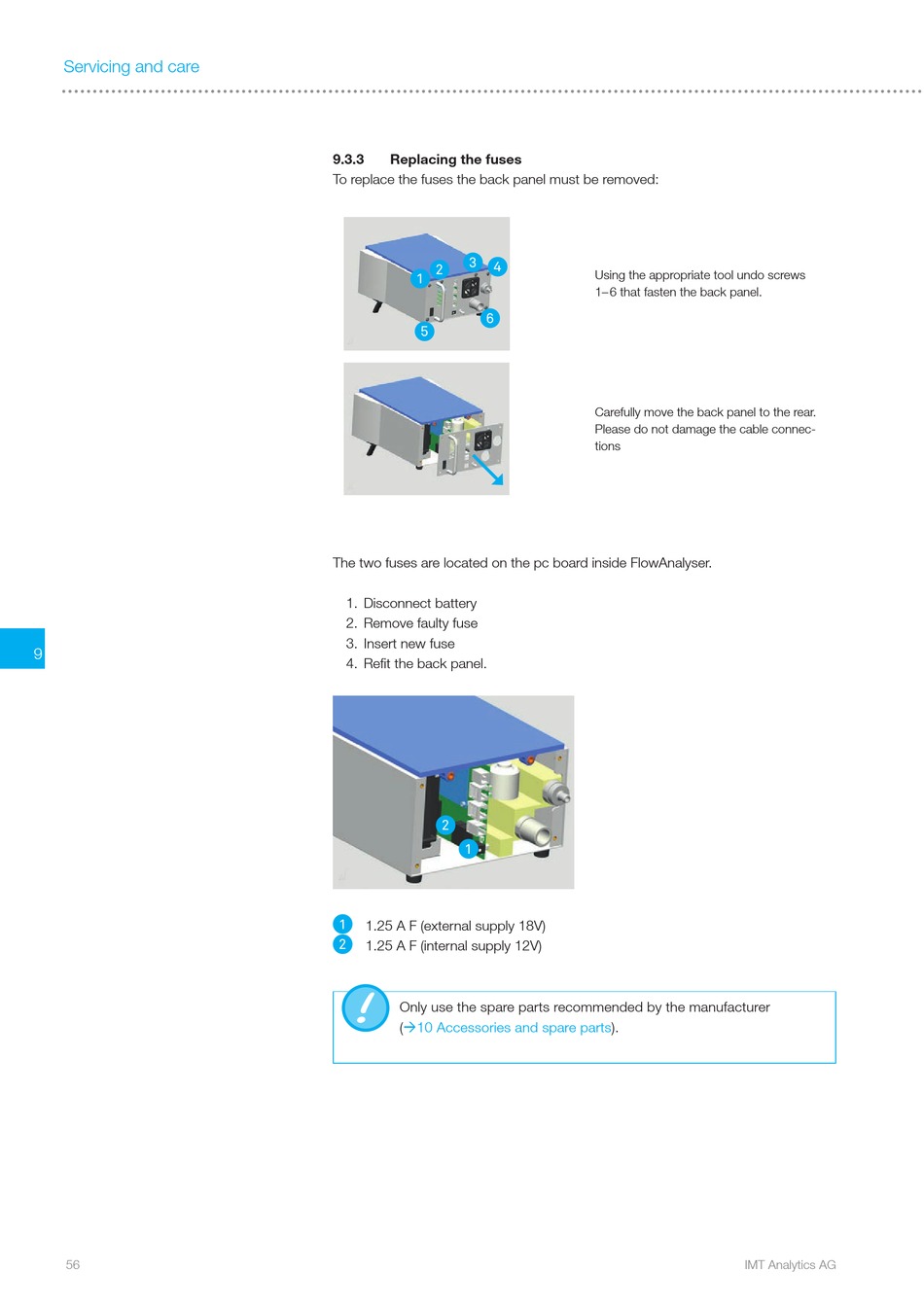

9.3.3 Replacing the fuses
To replace the fuses the back panel must be removed:
3
4
2
1
6
5
The two fuses are located on the pc board inside FlowAnalyser.
1. Disconnect battery
2. Remove faulty fuse
3. Insert new fuse
4. Refit the back panel.
2
1
1
1.25 A F (external supply 18V)
2
1.25 A F (internal supply 12V)
Only use the spare parts recommended by the manufacturer
(10 Accessories and spare
Using the appropriate tool undo screws
1– 6 that fasten the back panel.
Carefully move the back panel to the rear.
Please do not damage the cable connec-
tions
parts).
