IMT Analytics FlowAnalyser Series User Manual page 18

Start-up
5
18

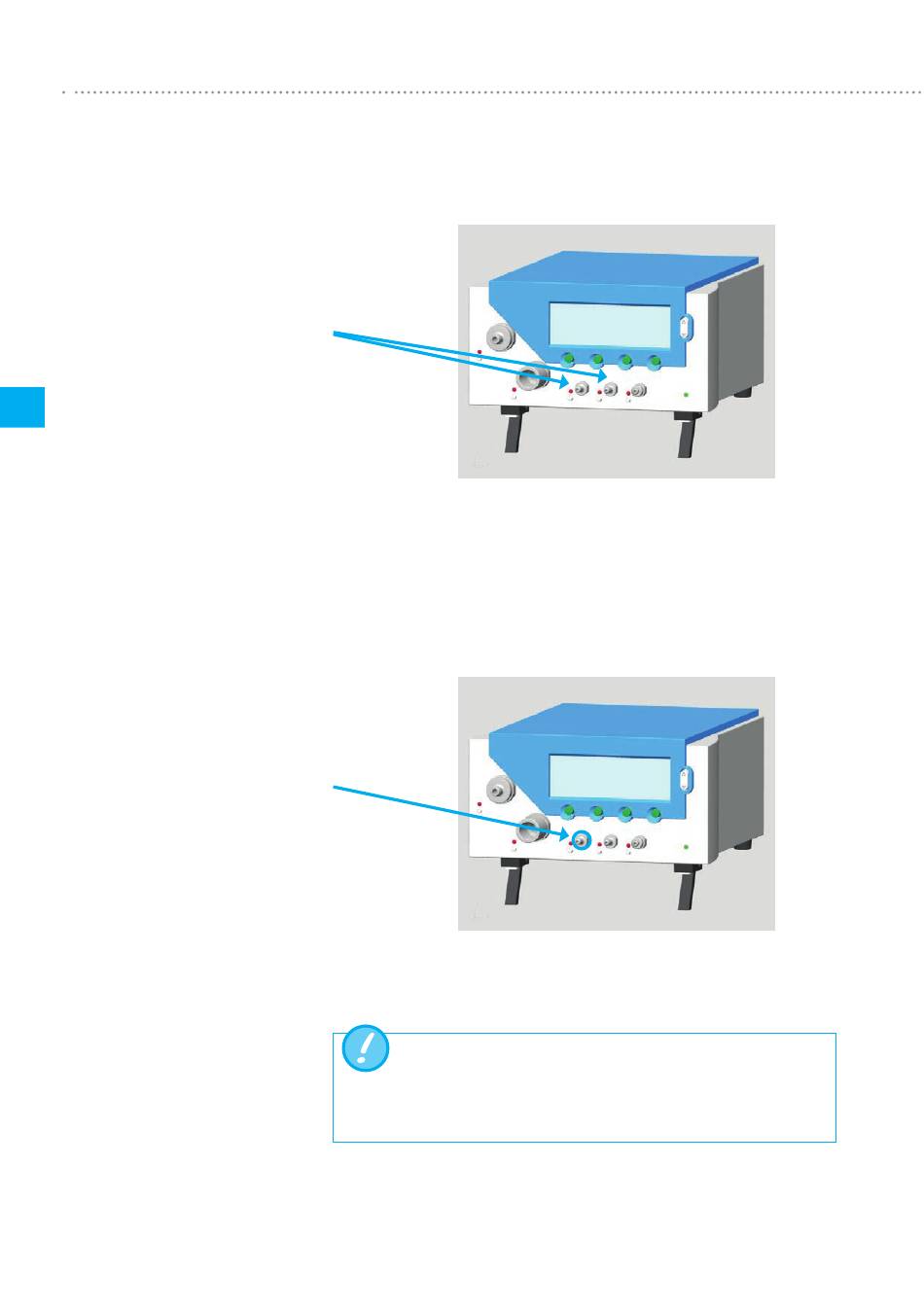

5.3.5 Differential pressure
The Differential pressure connectors can be used for differential pressure measure-
ments.
Differential pressure
Measuring range: -150 –150 mbar
Accuracy: ± 0.75% of reading or ± 0.1 mbar
5.3.6 Low pressure (PF-302 LOW)
For PF-302 LOW there is an additional sensor that is connected to the designated
port. The connecting nipple is marked with a blue ring.
Low pressure
Measuring range: 0 – 5 mbar
Accuracy: ± 1% of reading or ± 0.01 mbar
With the low-pressure variant a port of the differential pressure sen-
sor (± 150 mbar) is connected to the remaining connector and the
second one is connected to the environment. The measuring range
remains the same.
