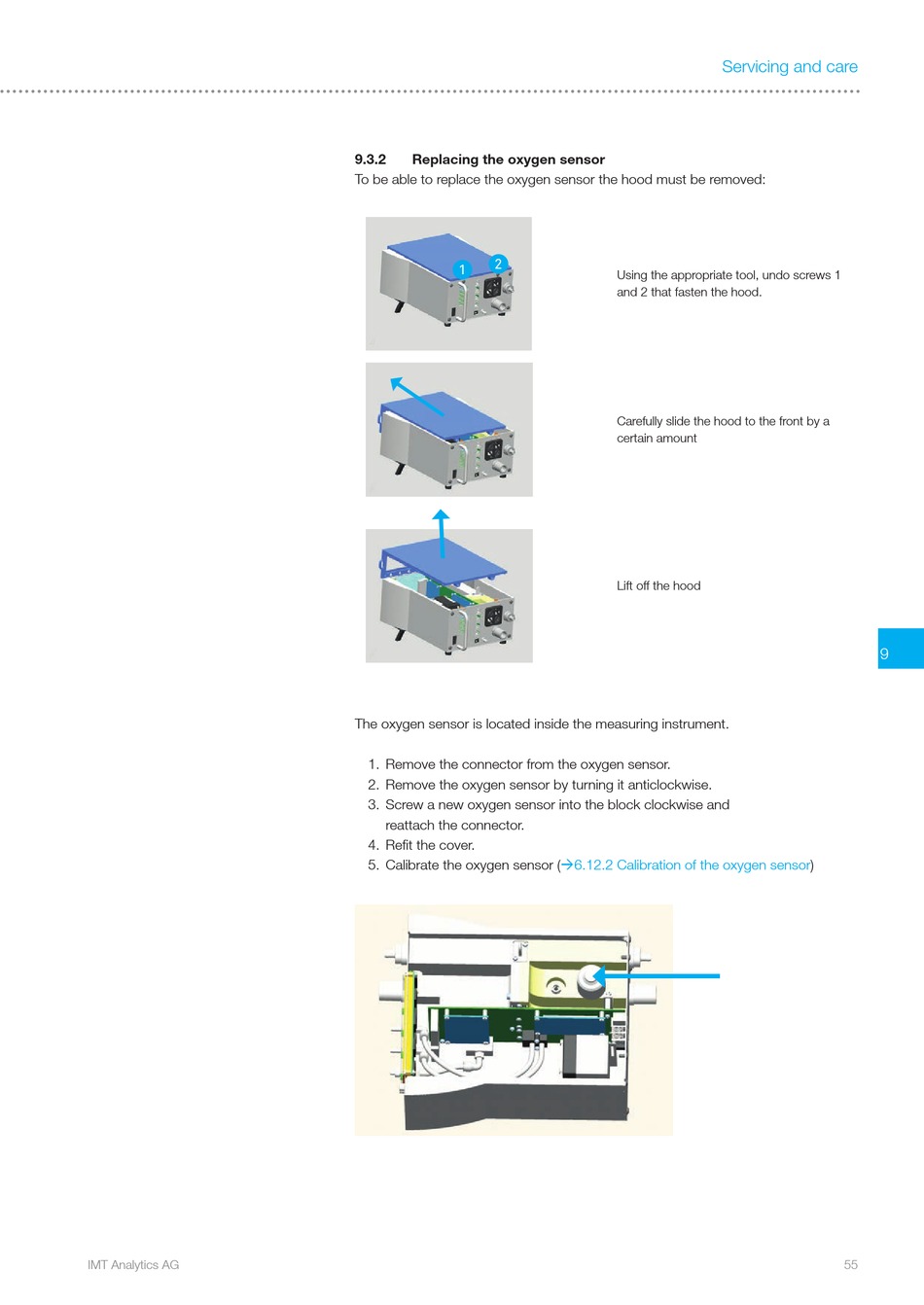

9.3.2 Replacing the oxygen sensor
To be able to replace the oxygen sensor the hood must be removed:
2
1
The oxygen sensor is located inside the measuring instrument.
1. Remove the connector from the oxygen sensor.
2. Remove the oxygen sensor by turning it anticlockwise.
3. Screw a new oxygen sensor into the block clockwise and
reattach the connector.
4. Refit the cover.
5. Calibrate the oxygen sensor
Servicing and care
Using the appropriate tool, undo screws 1
and 2 that fasten the hood.
Carefully slide the hood to the front by a
certain amount
Lift off the hood
(6.12.2 Calibration of the oxygen
9
sensor)
