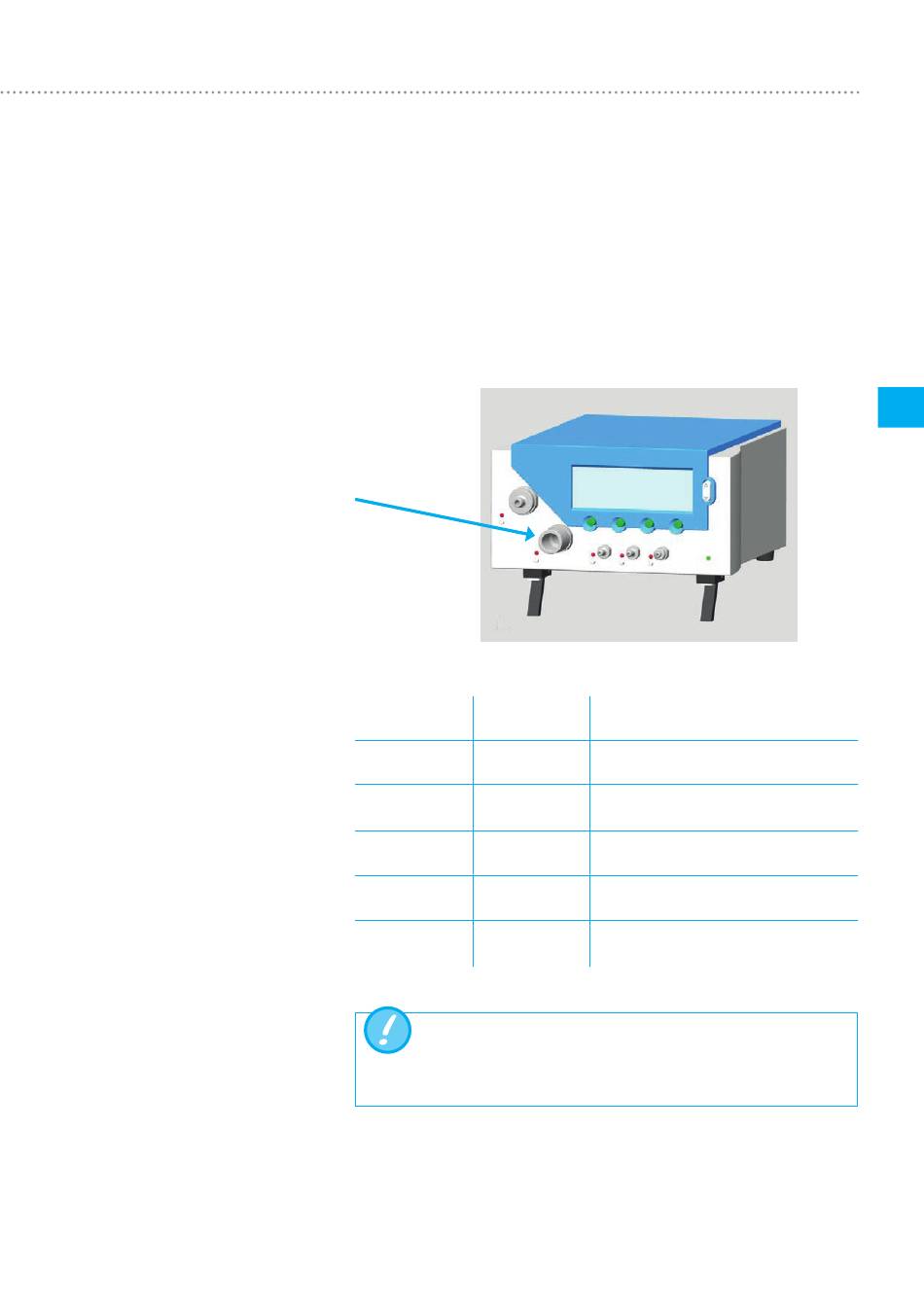

5.3.4 Flow High
4
The Flow High connector can be used for the following measurements:
• Large flows (-300 – 300nL/min)
• Volume
• Temperature
• Humidity
• Oxygen
• Pressure in the channel
Measurements can be conducted bidirectionally.
Flow High
Flow High Measuring range
Accuracy
Volume Measuring range
Accuracy
Temperature Measuring range
Accuracy
Humidity Measuring range
Accuracy
Oxygen Measuring range
Accuracy
Pressure in the Measuring range
channel Accuracy
If work is being performed at a relatively high level of air humidity,
care must be taken to ensure that no condensation forms in the
device. Water can damage the sensors beyond repair!
Standard litres per minute (converted to STP conditions of 21.1°C and 1013 mbar)
4
-300 – 300 nL/min
± 1.75% of reading or ± 0.1 nL/min
0 – 10 nL
± 2% of reading or ± 0.02 nL
0 – 50°C
± 1.75% of reading or ± 0.5°C
0 – 100% (non-condensing)
± 3% RH
0 – 100%
± 1% O
2
0 – 150 mbar
± 0.75% of reading or ± 0.1 mbar
