5.3.8 High pressure
The high-pressure port can be used for measuring pressures above 150 mbar. If a
DISS-O connector is required for the port, an appropriate adapter can be ordered.
2

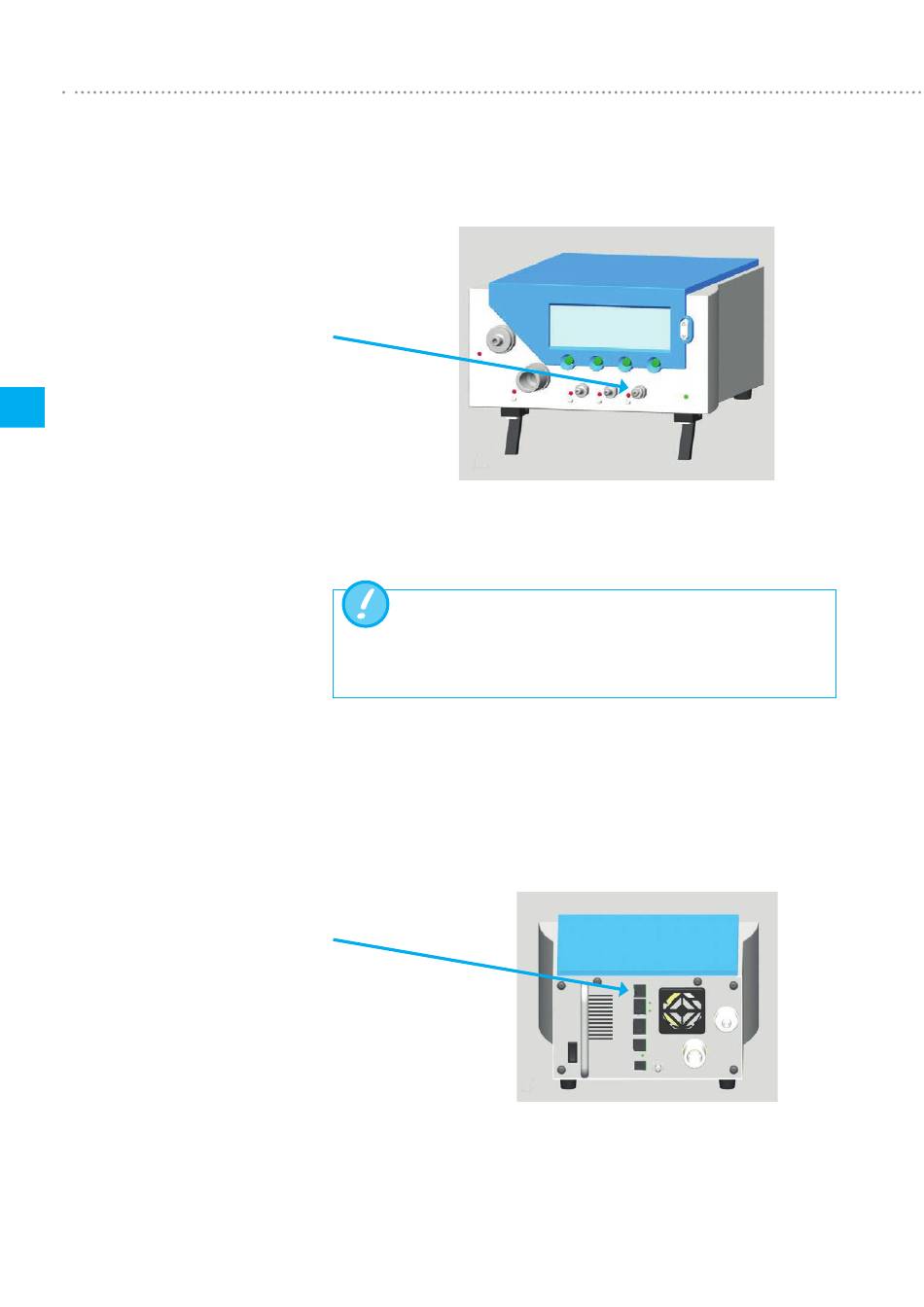

High pressure
Measuring range: 0 – 10 bar
Accuracy: ± 1% of reading or 10 mbar
With measurements up to 150 mbar it is recommended that the
differential pressure connector be used because there the accuracy is
up to 100 times higher. Pressures above 15 bar damage the sensor
beyond repair!
5.4.1 USB
The USB port is used for connecting FlowAnalyser to the PC. The port is located at
the back of the device.
If the device was ordered together with the FlowLab software, the measured values
can be displayed graphically on the computer. On devices without software the USB
port is disabled. It can be enabled with an activation code at any time.
