Connect the round window fitting (1) to the end of the hose

then the end fitting for the window (2), previously obtained by

joining parts A and B

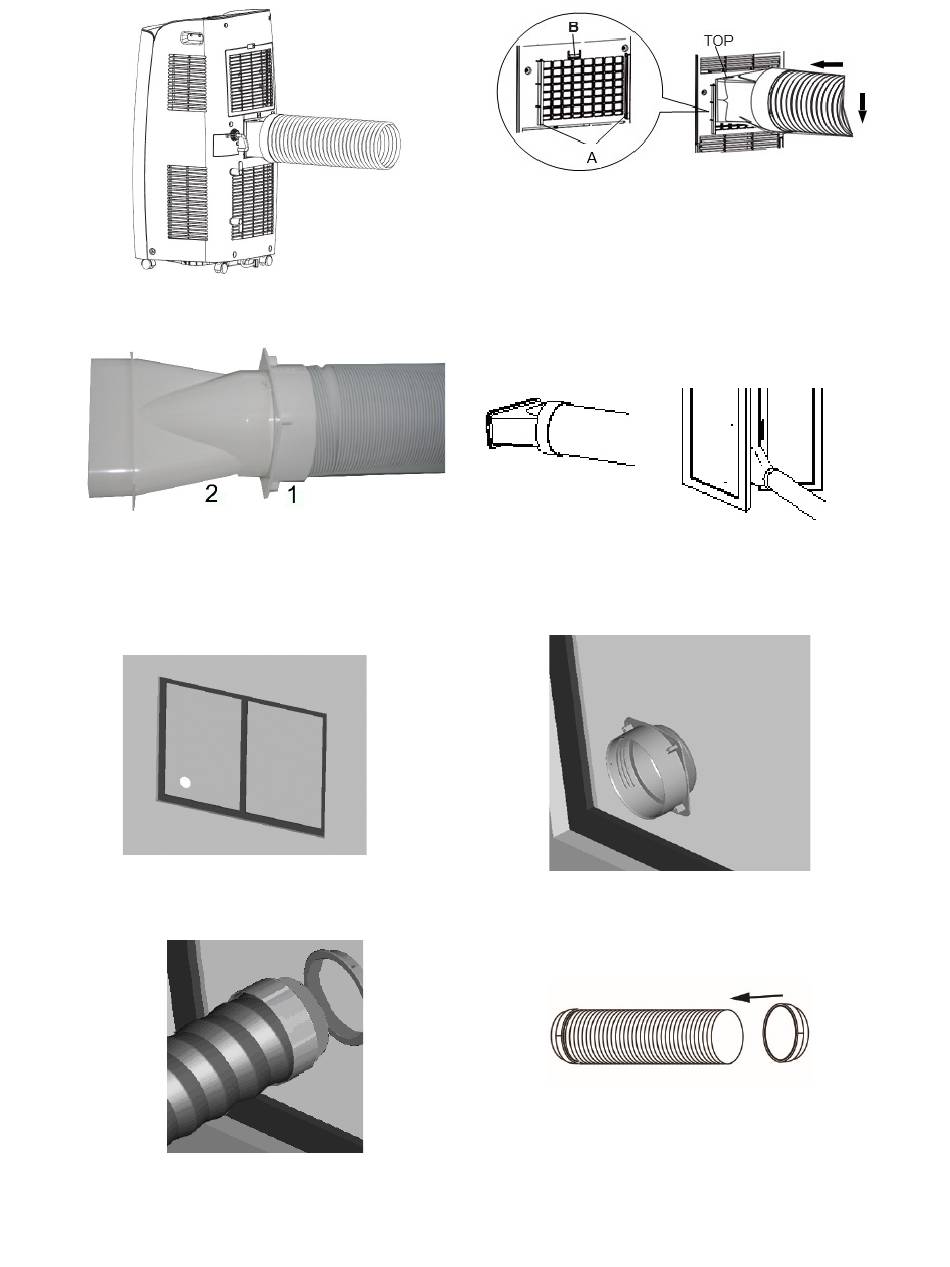

USE WITH WINDOW UNIT KIT

To make the hole in the glass it is advisable to take

the porthole kit accessory to the glazier.

3. Insert the round fitting into the retractable flexible pipe and

insert the latter with its round fitting into the window unit

without the plug..

Insert the flat fitting onto the hose.

V 06/20

Open the windows and lock one of the two leaves with the

handle.

Place the end fitting against the fixed leaf of the window,

and draw the other leaf towards it.

2. Insert the window unit into the window.

4. Insert the round fitting onto the flexible pipe.

6. Slide the flat fitting downwards into the grooves (A) and
