EN

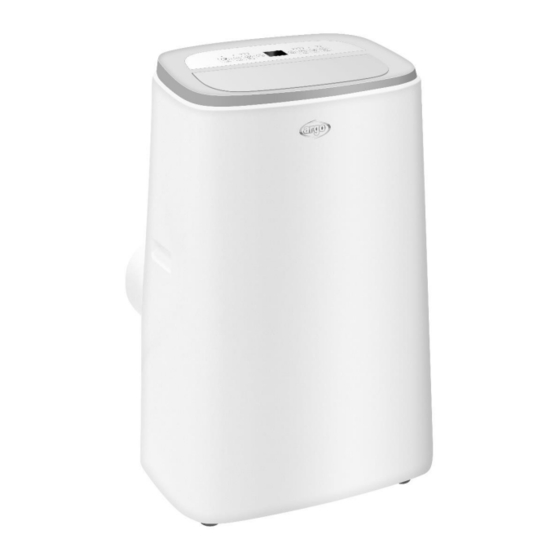

PORTABLE AIR CONDITIONER (LOCAL)
IRO & IRO PLUS
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or
damage. Store these instructions in a safe place for future reference.
V 01/19
18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Argo IRO
Summary of Contents for Argo IRO
- Page 1 PORTABLE AIR CONDITIONER (LOCAL) IRO & IRO PLUS OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Store these instructions in a safe place for future reference.
- Page 2 Appliance filled with flammable gas R290. Before installing and using the appliance, read the owner’s manual. Before repairing the appliance, read the service manual. The Refrigerant R290 • To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
- Page 3 GENERAL OPERATING AND SAFETY INSTRUCTIONS • This appliance is a local air conditioner designed for domestic use. • Only use this air-conditioner as described in this manual. • Ensure that the required voltage and frequency (220-240V/50 Hz) match the available power source. •...
- Page 4 • Do not use the plug as a means by which to start/stop the air conditioner: use the ON/OFF button on the remote control or on the control panel. • Do not install the air conditioner in rooms where it may receive water splashes (e.g.
- Page 5 • Do not insert any objects into the air conditioner: this is very dangerous as the fan turns at high speed. • Ensure that air circulates freely around the unit. Do not cover the air intake and delivery grilles with drapes or any other means.
-
Page 6: Description Of The Appliance
The manufacturer will not be held liable if safety and accident prevention rules are not observed. DESCRIPTION OF THE APPLIANCE V 01/19... - Page 7 VISTA FRONTALE VISTA POSTERIORE CONTROL PANEL AND FUNCTION BUTTONS POWER CORD WITHOUT REMOTE CONTROL AIR EXPULSION HOSE FIN AND AIR INTAKE WINDOW ACCESSORY WHEELS 10) AIR INLET AND FILTER HANDLE 11) REMOTE CONTROL CONTINUOUS DRAINAGE DISCHARGE AIR INLET AND FILTER Min/max operating limits (internal temperature) Cooling: 16 °C DB / 35 °C DB Dehumidification: 16 °C DB / 35 °C DB...
-
Page 8: Appliance Start-Up
The unit must be placed vertically for 2 hours before the first power on. APPLIANCE START-UP Open the packaging and remove the box from above. Remove the product and the other elements supplied (illustrated in the box below). Type AAA batteries LCD remote control for the remote control (not included) -
Page 9: How To Use The Appliance
Connect the flat fitting to the hose, extend the hose as far as necessary for reaching the outside and it connect to the back of the air conditioner. Connect the round window fitting (1) to the end of the hose Open the windows and lock one of the two leaves with then the end fitting for the window (2) the handle. -
Page 10: Operating Modes
When switching between modes, the fan continues to rotate but the compressor stops: the compressor will start after 3 minutes. This delay protects the compressor from potential damage. Cooling, Fan, Heating* (*available only on IRO PLUS) Dehumidifying THE DISCHARGE TUBE MUST ALWAYS BE CONNECTED to the appliance: the only exception is when the appliance is used solely for dehumidification, in which case it is advisable to let the appliance discharge directly into the environment for maximum efficiency (consult the "Dehumidification Mode"... - Page 11 • The temperature cannot be adjusted. HOW TO ELIMINATE CONDENSATE This appliance automatically vaporises condensate in the cooling mode. When the air conditioner operates in cooling mode, there is no need to drain condensate continuously; only in certain weather conditions with very humid air may it occur that water deposits inside the unit. When its inner tank is full, the air conditioner beeps 8 times and the message "FL"...
-
Page 12: Remote Control Operation
REMOTE CONTROL OPERATION Insert the batteries into the remote control, while respecting the indicated polarities. Only use type AAA 1.5V batteries. Remove the batteries if the remote control is not used for a month or longer. Do not attempt to recharge the batteries. Replace all batteries at the same time. - Page 13 In the COOL mode the display lights up. In the DRY and FAN modes the display does not light up. HEAT mode is available only on IRO PLUS model. (3) SLEEP BUTTON (on both the remote control and portable unit)
-
Page 14: Safety Functions
Press this button to reduce to minimum the ventilation, for the most silence. Note: The sleep mode cannot be started in ventilation mode. (4) FAN SPEED ADJUSTMENT BUTTON Press this button when the appliance is switched on for adjusting the ventilation speed in cooling mode (AUTO), to low (Low), medium (Med) or high (High). -
Page 15: Compressor Protection
COMPRESSOR PROTECTION It takes 3 minutes before it starts when the unit is turned off, it can not be restarted before 3 minutes have elapsed since the previous stop. AUTOMATIC DEFROSTING When it works in heating, there is a risk that the ice will form on the battery: in this case the air conditioner stop working, to melt the ice and then starts again. - Page 16 Keep the appliance in a vertical position at all times. Do not place any heavy objects on the top and, if possible, protect the air conditioner with a plastic sheet. 4. Transport. Preferably keep the air conditioner in the vertical position when transporting it.
- Page 17 Tons CO equiv. Do not release R290 into the atmosphere. IRO PLUS REGULATION (EU) No. 517/2014 – F-GAS The unit contains R290, a natural greenhouse gas with global warming potential (GWP) = 3 - Kg. 0.29 = 0.00087 Tons CO equiv.
