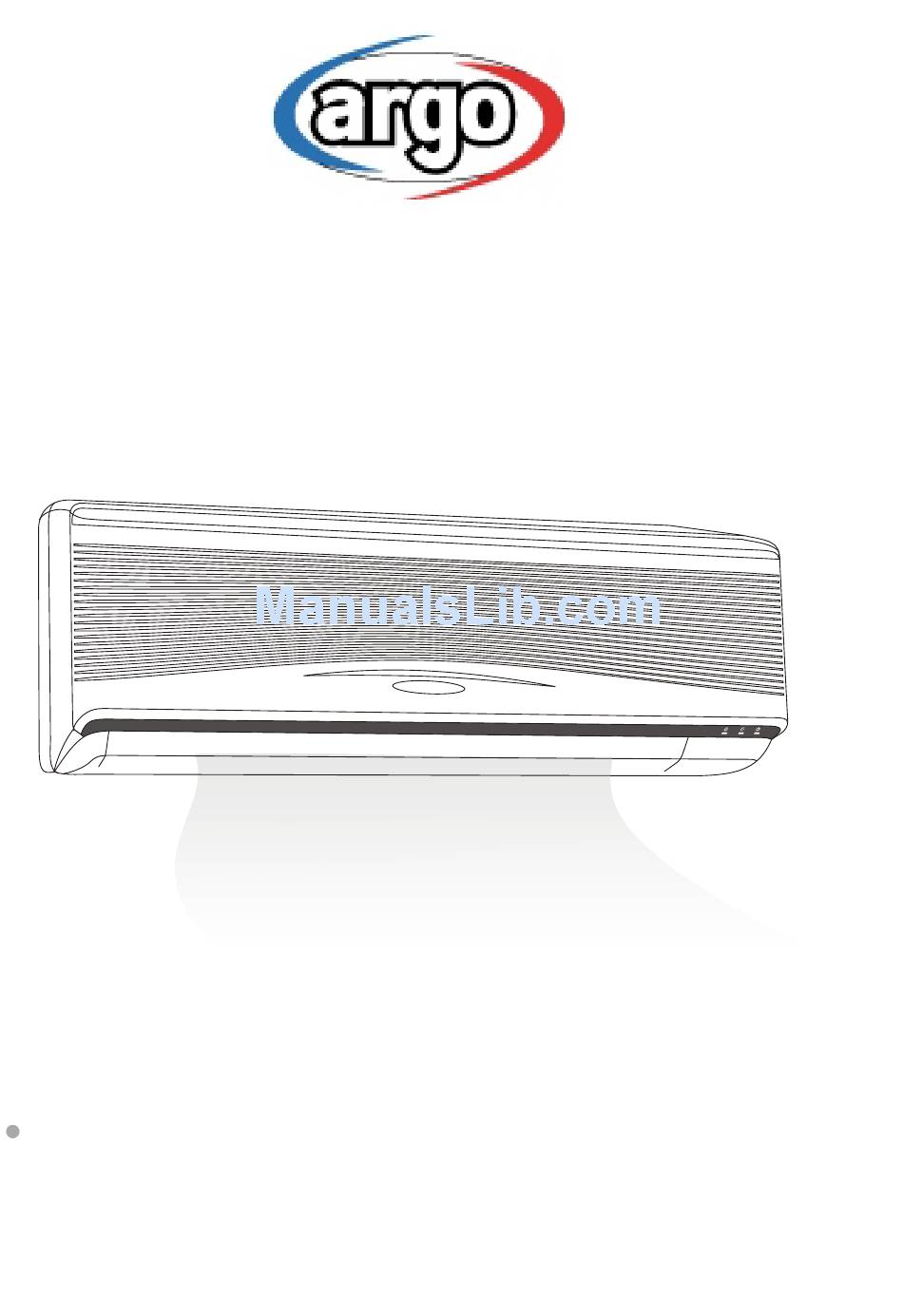

SPLIT AIR CONDITIONER
WALL MOUNTED TYPE
OWNER'S MANUAL
AGW52RH U.I./AGE52RH U.E.
Thank you for choosing an Air Conditioner.Please read this OWNER'S MA-
NUAL carefully prior to using, keep it for further reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGW52RH U.I. and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Argo AGW52RH U.I.

  • Page 1 SPLIT AIR CONDITIONER WALL MOUNTED TYPE OWNER'S MANUAL AGW52RH U.I./AGE52RH U.E. Thank you for choosing an Air Conditioner.Please read this OWNER'S MA- NUAL carefully prior to using, keep it for further reference.
  • Page 2: Table Of Contents

    CONTENTS ..............Contents ..............2 2 Safety Awareness ..............4 Name or Parts Operation procedure .......6 Remote Controller's Preparative Before Operation ....... 7 Operation Explanations of Air Conditioner .....12 Service and Maintenance of the Air Conditioner ...........14 Fault Confirmation and Analysis ............16 Performance Parameters ............17 Installation Explanations...
  • Page 3: Safety Awareness

    SAFETY AWARENESS Read and understand thoroughly this safety awareness before use. The items indicated here are very important safety precautions, which must be followed. Must connect grounding line Absolutely no Must unplug plug Must be done WARNING Do not pull power cable. Hold plug to unplug Do not let cool air blow directly at you for long when removing power, or part of the line in time.Possible health problems may occur.
  • Page 4 SAFETY AWARENESS WARNING Clean the air conditioner with a soft and dry The appliance shall be installed in accordance cloth. Do not use chemical solvent,insecticide, with national wiring regulations. Inflammable-spraying material or which da- The appliance must not be installed in the laundry. mage the appearance of air conditioner for c- The appliance must be installed 2.3m above leaning.
  • Page 5: Name Of Parts

    NAME OF PARTS INDOOR UNIT Front panel Filter Air inlet Power supply cord SWING SWING MANUAL MANUAL Deflector OPERATION OPERATION Left / Right deflector MODE MODE TIME TIME CANCEL CANCEL Remote FAN SPEED FAN SPEED Display SLEEP SLEEP controller Manual operation (open the Front panel) Emergency operation switch...
  • Page 6: Remote Controller

    NAME OF PARTS NAME OF PARTS REMOTE CONTROLLER Signal ejecting window SWING OPERATION BUTTON DISPLAY MANUAL SWING BUTTON OPERATION MODE BUTTON TIME OFF BUTTON TIME ON TEMPERATURE ADJUSTMNT BUTTON BUTTON TIME CANCEL BUTTON RUN/STOP BUTTON TIME SET BUTTON FAN SPEED BUTTON SLEEP BUTTON...
  • Page 7 REMOTE CONTROLLER PREPARATION REMOTE CONTROLLER PREPARATION Open back cover, put in batteries. Short RESET piece with forceps. (Short two RESET piece after changing the batteries.) NOTICE • If the remote controller can't be operated normally, short two RESET piece, it will operate normally. •...
  • Page 8: Operation Procedure

    OPERATION OF AIR CONDITIONER Operation procedure-Control under the Remote controller Run/Stop Press I/O button, start operation, and stop when repressed. Temperature adjustment Press TEMPERATURE ADJUSTMENT button, decreases 1 by press button once, and increase 1 C by press button once. Temperature change will display in the remote controller's display.
  • Page 9 OPERATION OF AIR CONDITIONER OPERATION OF AIR CONDITIONER Press SWING button, the deflector start to opreate.. Change right/left air flow direction Left/Right deflector Manually swing ,to change right/left air flow direction.Complete ad- justment before operation, if adjusted during operation,the auto swinging deflector may pinch your fingers.(Fig.
  • Page 10: Auto Mode

    OPERATION OF AIR CONDITIONER OPERATION OF AIR CONDITIONER Operation mode adjustment Cool only type has not HEAT mode . AUTO mode When started, operation mode will turn into COOL or DRY or HEAT mode as per room temperature, if operation stops for two hours, it restarts in the same mode set as before operation was stopped.
  • Page 11: Timer Operation

    OPERATION OF AIR CONDITIONER Timer operation Timer operation ON Press button when air conditioner stops , flicker on the Remote ¡ ± ¡ ± Controller display. Press button when air conditioner operates , flicker on the ¡ ± ¡ ± Remote Controller display.
  • Page 12: Service And Maintenance

    SERVICE AND MAINTENANCE Air Conditioner no use for a long time. Want to use the Air Conditioner Start fan only for 3-4 hours to comple- Clean filters and replace them to origi- tely dry the inside of the indoor unit. position.Clean indoor unit with soft Set COOL mode or HEAT mode, clothe.
  • Page 13 SERVICE AND MAINTENANCE Deodorization filter, Air cleaner, Filters must be cleaned termly. Open front panel only after air conditioner stops completely. Filters should be cleaned once every two weeks. Clean deodorization filters and air cleaner. Take out filters. Take out filters first, then take out deodorization filter and air cleaner.
  • Page 14: Fault Confirmation And Analysis

    FAULT CONFIRMATION AND ANALYSIS If problems can not be corrected after doing below items, please stop the air conditioner, contact our air conditioner specially eng- aged service centre nearest to you to get help. Fault analysis Is there a fault ? Does power fail ? Air conditioner does Is plug out ?
  • Page 15 FAULT CONFIRMATION AND ANALYSIS Is there a fault ? Fault analysis Indoor unit fan stops It is defrosting of the outdoor unit coil.It should for about 10 complete this process in about 10 minutes at minutes during most.( It freezes when outdoor temperature is heating.
  • Page 16: Performance Parameters

    PERFORMANCE PARAMETERS 18000BTU Model Model indoor indoor outdoor outdoor heat pump type Function Function 230V , 50Hz Power Power Rated cooling/heating capacity (BTU) 18100(cool)/19700(heat) Standard input power (W) 2010(cool)/2340(heat) 9.8(cool)/10.6(heat) Standard input current(A) Air flow volume(m /h) Air flow volume(m /h) Dehumidifying capacity (L/h) Dehumidifying capacity (L/h) Protection class...
  • Page 17: Installation Sketch

    INSTALLATION SKETCH Installation sketch Confirm installation place with the marker of indoor unit inst- allation board. 2 3 4 Notice:do not put the drain hose high. Configuring pipe can be installed to back, right, underside, or left-back side. front back right left back...
  • Page 18: Installation Accessories

    INSTALLATION ACCESSORIES Before installation, inspect the following accessories: Quantity Installation accessories Quantity Indoor unit accessories Mounting plate Connecting pipe screws Tapping screw ST4 25 Bonding tape Expansion rubber plug Clamp Expansion bolt Cement nail Battery Drain hose Opening cap Remote controller Felt Wall-hole cover Indoor wall-hole cover...
  • Page 19: Indoor Unit

    INSTALLATION INDOOR UNIT Secure the mounting plate The mounting plate should be attached to the structural part of wall (post etc.). fasten string at the central hole at least 60mm plumb mounting plate The holes at solid arrow position must be secured to avoid the shake of mounting plate. NOTICE When the expansion bolts are used, two holes ( 11 20 or 11 26 ) that the distance between them is 450mm should be adopted.
  • Page 20 INSTALLATION Installation drain hose gas pipe liquid pipe NOTE: The drain hose must be arranged beneath the copper pipe. drain hose The drain hose must not be hunched or bended. Do not wrap the drain hose by pulling it. adiabatic When the drain hose must be through the house, it should be underlay wrapped by the special heat insulated materials.
  • Page 21: Outdoor Unit

    INSTALLATION Seal of wall hole and fasten of pipe Use putty to seal the get rid of unwanted part wall hole. airproof with putty clamp Use clamp ( pipe fa- clip the connecting pipe with clamp stener ) to secure the pipe at specified position.
  • Page 22 Discharge the air procedure Connect assembly pipe to the appropriate valve on the indoor unit and outdoor unit and tighten the flare nut(as fig.1). Screw down the nut of connecting pipr with wrench(the torque as follow diagram ) (Fig.1) NOTICE 1.The number of bent position of the pipe in the indoor unit should not exceed 10.
  • Page 23 INSTALLATION Add refrigerant If the connecting pipe is longer than 7 meters, add refrigerant as needed. (Cool only type) add amount A= (Lm-7m) 15g/m ; (Heat pump type)add amount A= (Lm-7m) 50g/m. (A: add refrigerant amount , L: the length of connecting pipe) the length of connecting pipe (m) (Cool only type)add amount (g) (Heat pump type)add amount (g)
  • Page 24 Via Varese,90 21013 Gallarate(VA) Italy Phone:+39 0331 755 111 Fax:+39 0331 766 240 www.argoclima.com...
