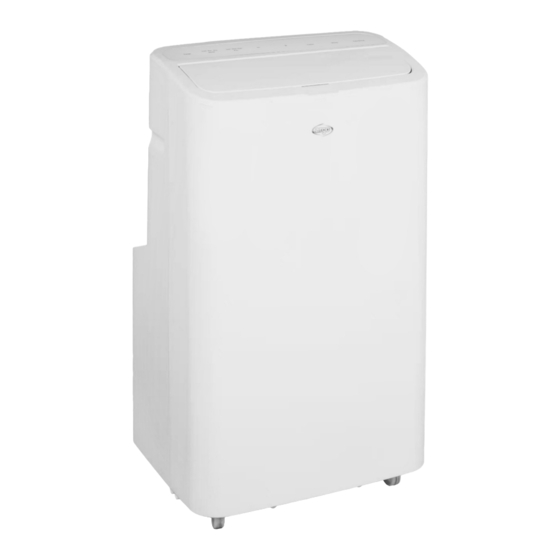

PORTABLE AIR CONDITIONER (LOCAL)
MADISON
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or
damage. Store these instructions in a safe place for future reference.
V 01/22
20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MADISON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Argo MADISON

Summary of Contents for Argo MADISON

  • Page 1 PORTABLE AIR CONDITIONER (LOCAL) MADISON OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Store these instructions in a safe place for future reference.
  • Page 2 Appliance is filled with flammable gas R290. Before installing and using the appliance, read the owner manual. Before installing the appliance, read the installation manual. Any repairs you need, contact the nearest authorized Service Centre and strictly follow manufacturer’s Service Manual. The Refrigerant R290 ...
  • Page 3 GENERAL OPERATING AND SAFETY INSTRUCTIONS  This appliance is a local air conditioner designed for domestic use.  Only use this air-conditioner as described in this manual.  Ensure that the required voltage and frequency (220-240V/50 Hz) match the available power source. ...
  • Page 4  Do not install the air conditioner in rooms where it may receive water splashes (e.g. laundry rooms, bathrooms) or in humid environments.  This air conditioner can be used by children of 8 years of age or older, and by persons with reduced physical, sensory and mental abilities or who lack the necessary know-how and experience to operate it, if under the supervision or instruction of a person responsible for their safety, so that they are fully aware of the attendant risks.
  • Page 5  Make sure the power outlet is intact, and after plugging the power cord into the outlet, check that the cord is placed where it cannot be walked on to prevent it from being accidentally pulled out of the outlet. PRECAUTION! ...

  • Page 6: Description Of The Appliance

     Do not use insecticides, oils, detergents or spray paints near the appliance; do not use aggressive chemical detergents to clean the casing: this may damage the finish and colour.  Close all open windows to maximise air conditioning efficiency. The manufacturer will not be held liable if safety and accident prevention rules are not observed.

  • Page 7: Appliance Start-Up

    Min/max operating limits (internal temperature) Cooling: 16 °C DB / 35 °C DB Dehumidification: 16 °C DB / 35 °C DB Cooling mode room temperature adjustment range: 16 °C DB / 31 °C DB PRE-OPERATING CHECKS AND OPERATIONS Position the product vertically on a flat and stable surface, as close as possible to a window and at least 50 cm from walls or other nearby obstacles.
  • Page 8 USE WITH END FITTING FOR WINDOW Connect the flat fitting to the hose, extend the hose as far as necessary for reaching the outside and it connect to the back of the air conditioner. Connect the round window fitting (1) to the end of the hose then the end fitting for the window (2) Open the windows and lock one of the two leaves with the handle.

  • Page 9: How To Use The Appliance

    HOW TO USE THE APPLIANCE This appliance can be used for cooling, dehumidifying and ventilating. When switching between modes, the fan continues to rotate but the compressor stops: the compressor will start after 3 minutes. This delay protects the compressor from potential damage. Cooling, Fan Dehumidifying THE DISCHARGE TUBE MUST ALWAYS BE CONNECTED to the appliance: the only exception is when the...
  • Page 10 HOW TO ELIMINATE CONDENSATE This appliance automatically vaporizes the condensation in cooling. When the air conditioner operates in Cooling, it is not necessary to have continuous condensate drainage; only in particular climatic conditions in which the air humidity is very high, it can happen that water is deposited inside the unit. When the internal tank is full, the air conditioner will emit 8 beeps and the display will show the message "FL", signaling the filling and blocking the operation of the device.

  • Page 11: Remote Control Operation

    REMOTE CONTROL OPERATION 1. Swipe to open the cover in the direction indicated by the arrow. 2. Insert the alkaline batteries (type AAA, LR03 / 1,5V - supplied) compliant with the Battery Directive no.2006 / 66 / EC and amendments by Directive 2013/56 / EC into the remote control, respecting the indicated polarity.
  • Page 12 FOR OPTIMUM OPERATION OF THE REMOTE CONTROL, ADDRESS THE TRANSMITTER HEAD TOWARDS THE RECEIVER LOCATED ON THE AIR CONDITIONER. SIGNAL TRANSMITTER DISPLAY A. Mode indicator: COOL, FAN, DRY B. Temperature and time C. Sleep on/off D. Speed setting E. Display timer and temperature 1.

  • Page 13: Safety Functions

    (3) FAN SPEED ADJUSTMENT BUTTON Press this button when the appliance is switched on for adjusting the ventilation speed in cooling mode High -> Medium (Med) -> Low The fan speed cannot be adjusted in DRY mode and is fixed to low speed. (4)(6) BUTTONS + - FOR TEMPERATURE AND TIMER ADJUSTMENT The temperature can be adjusted to between 16 °C and 31 °C.

  • Page 14: Care And Maintenance

    CARE AND MAINTENANCE WARNING! Prior to carrying out any cleaning or maintenance, unplug the unit from the power socket. 1. Cleaning the air filters The air filter must be checked at least once every two weeks of operation. Operating with dirty or clogged filters will decrease the effectiveness of the air conditioner and can cause serious problems.
  • Page 15 18 ºC for the cooling mode, and above 10 ºC for dehumidification mode. REGULATION (EU) No. 517/2014 – F-GAS MADISON The unit contains R290, a natural greenhouse gas with global warming potential (GWP) = 3 - Kg. 0,23 = 0,00069 Tons CO equiv.
  • Page 16 Specialist’s Manual Aptitude requirement for maintenance man (repairs. should be done only be specialists). a) Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specifìcation.
  • Page 17 ---Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded. ...
  • Page 18 • remove refrigerant; • purge the circuit with inert gas; evacuate; • purge again with inert gas; • open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. For appliances containing flammable refrigerants, the system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times.
  • Page 19 shut-off valves in good working arder. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of all appropriate refrigerants including, when applicable, flammable refrigerants.
