Flex Trapezoid Assembly Instructions
#10x3/4" Wood Screw
P/N: 70054
3/8"-16x.625 Dog Nut Screw
P/N: 77741
Allen Wrench 3/16"
P/N: 70867 – Connector Bolt ¼-20x23mm
P/N 70871 – Connector Nut ¼-20x17mm
(QTY: 8 of each)
For Assistance in assembling product, missing or damaged parts,
or to place an order, please contact customer service at 800-328-1061
Form# 179861
(Models: 01340, 01345)

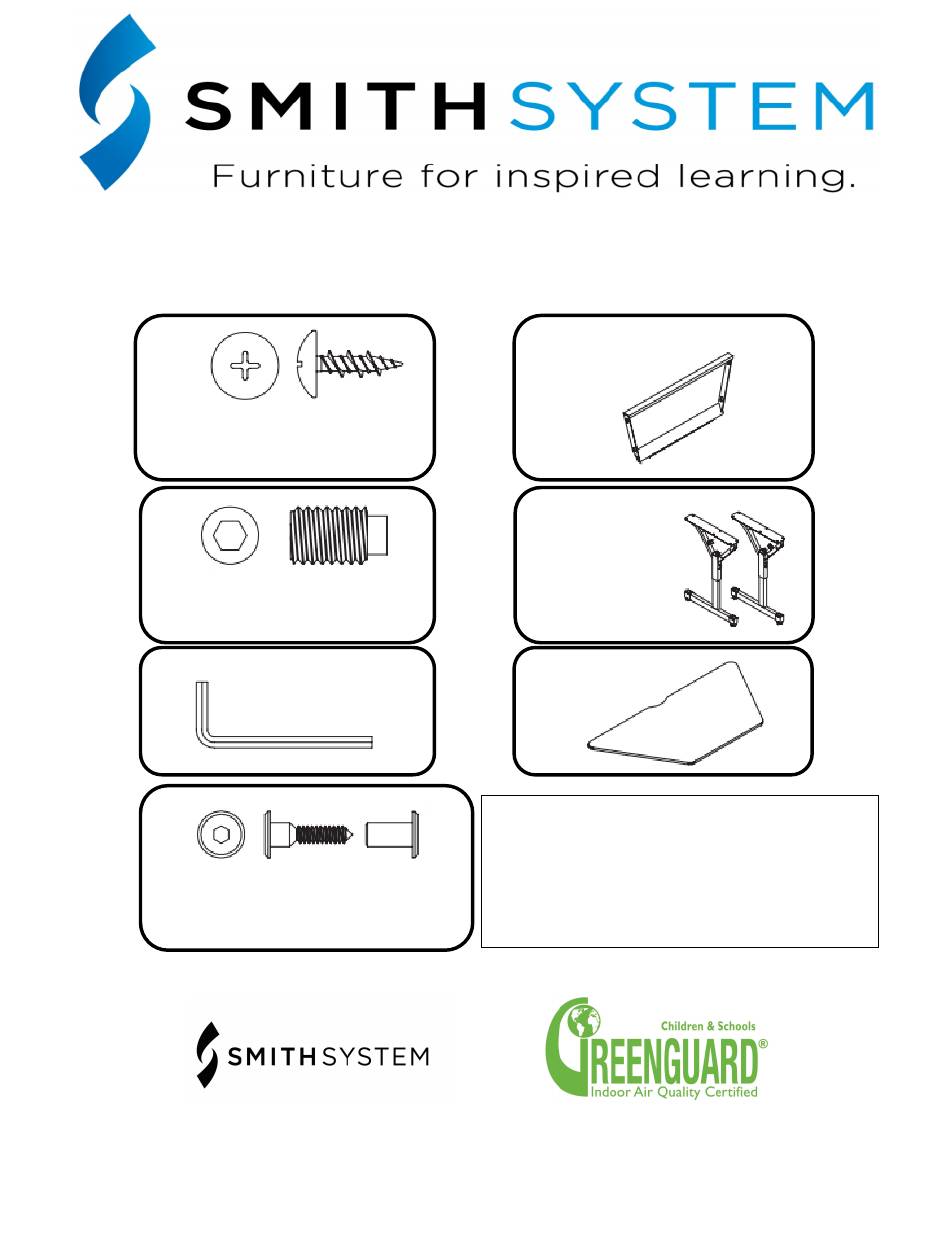

Hardware and Components
(QTY: 32)
(QTY: 8)
P/N: 77813
(QTY: 4)
You may also place your order online at
www.smithsystem.com
Modesty Panel
(QTY: 2)
Y- Leg Sets
(QTY: 2 sets of 2 Legs)
Trap Table Top
(QTY: 1)
Replacement Hardware Pack:
69729-R – Flex Y-Leg Hardware Pack
1. (4) 70870 - Connector Bolt ¼-20x23mm
2. (4) 70871 – Connector Nut ¼-20x17mm
3. (2) 77817 – Allen Wrench 3/16"
4. (17) 70054 - #10x3/4" Wood Screw
04/2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMITH SYSTEM Flex Trapezoid 01340
Summary of Contents for SMITH SYSTEM Flex Trapezoid 01340
- Page 1 Flex Trapezoid Assembly Instructions (Models: 01340, 01345) Hardware and Components Modesty Panel (QTY: 2) #10x3/4” Wood Screw P/N: 70054 (QTY: 32) Y- Leg Sets (QTY: 2 sets of 2 Legs) 3/8”-16x.625 Dog Nut Screw P/N: 77741 (QTY: 8) Allen Wrench 3/16” Trap Table Top P/N: 77813 (QTY: 1)
- Page 2 Assembly Instructions Step 1: Place the table top on a smooth, clean surface with the bottom facing up. Step 2: Assemble the panel with the legs using the supplied connector bolts. DO NOT TIGHTEN, LEAVE FINGER TIGHT. Step 3: Align the assembled frame with the pilot holes on the top. Loosely attach the frame assembly to the top using the supplied #10 wood screws.
