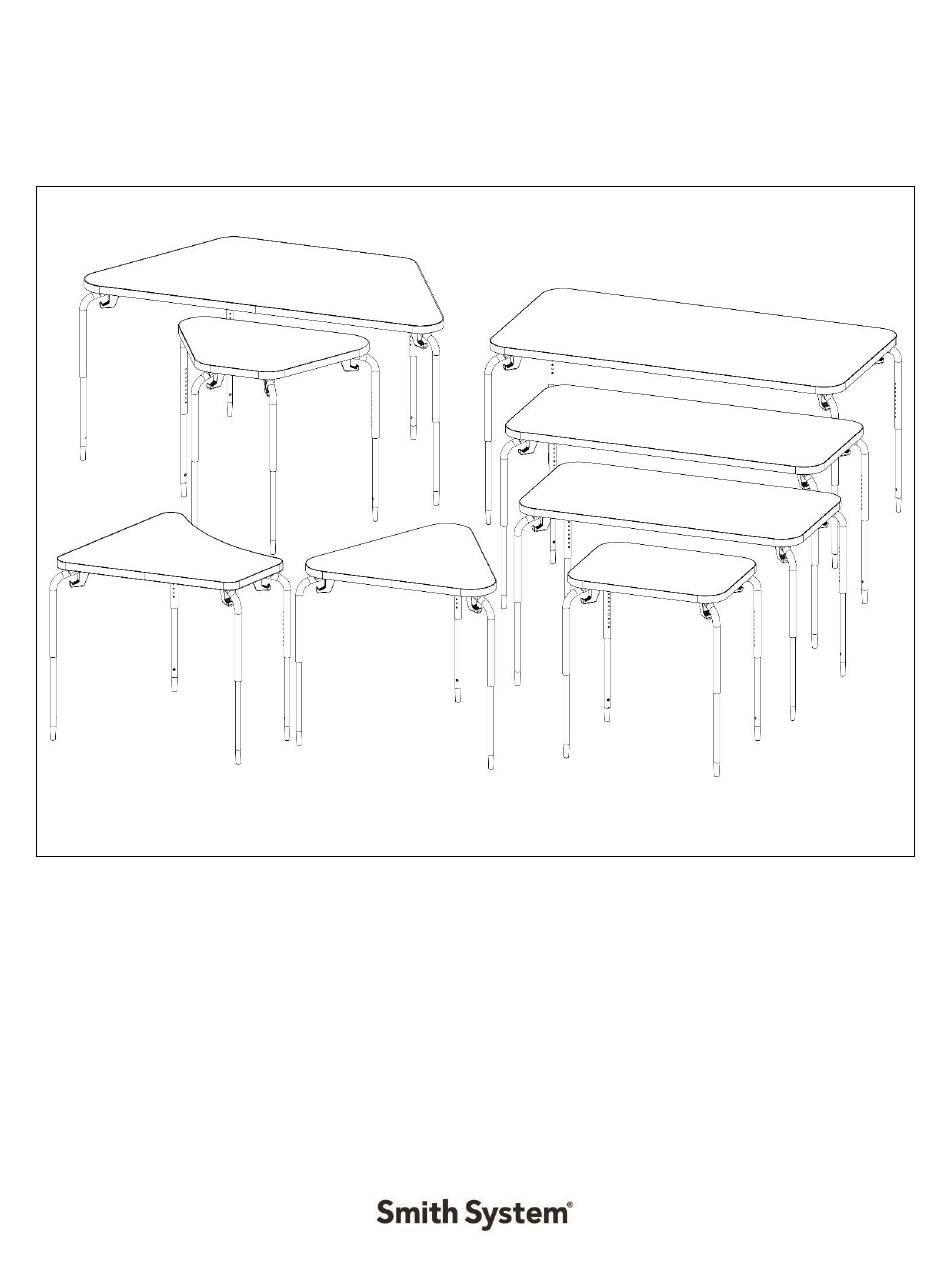

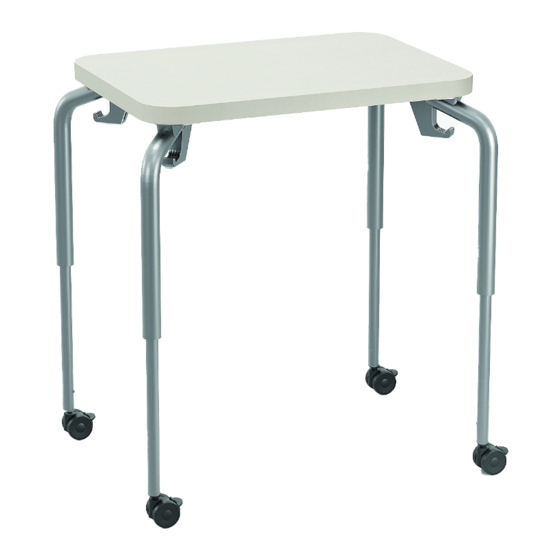

- Page 1 Assembly Instructions NUMBERS DESKS MODEL NUMBERS 02130, 02131, 02132, 02133, 02140, 02141, 02142, 02143 If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179722 REVISED: 12/2021...
- Page 2 Hardware and Components NO. 10X1-1/8” TORX BUTTON HEAD SCREW QTY. 8 PER LEG ASSEMBLY T25 TORX POWER BIT 2” QTY. 1 NUMBERS DESK LEG CUSTOM SET SCREW 3/8-16 X ¾” QTY. 2 PER INSERT 1/8” ALLEN KEY QTY. 1 OPTIONAL ACCESSORIES NUMBERS SINGLE LEG ASSEMBLY LOW RANGE INSERT 2”...
- Page 3 Special Notes: • Check that all components are accounted for and undamaged before assembling. • Please assemble the product in a clean and dry area. • Clean the product with a mild cleaner and a damp cloth. Document #: 179722 REVISED: 12/2021...
- Page 4 Assembly Instructions 1. Place wood top on clean smooth surface upside down with the pilot holes facing up. Align holes in the single legs with the pilot holes. Using the included T25 torx bit fasten all single leg assemblies using 8x NO. 10X1-1/8” torx button head screws per leg. 2.
- Page 5 Assembly Instructions 3. To change the leg set to the optional glide version, turn the set screw clockwise until it stops, remove the leg insert and rotate 180 degrees inserting the glided side of the leg set into the tube first. Follow step 2 to set the leg height and tighten the insert into place. Install press in caster as shown.
