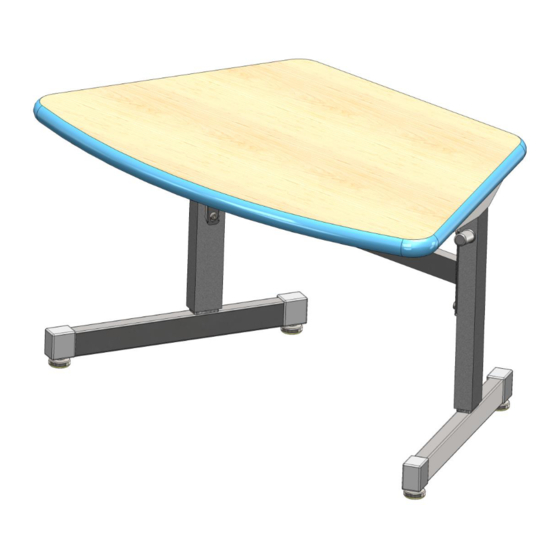

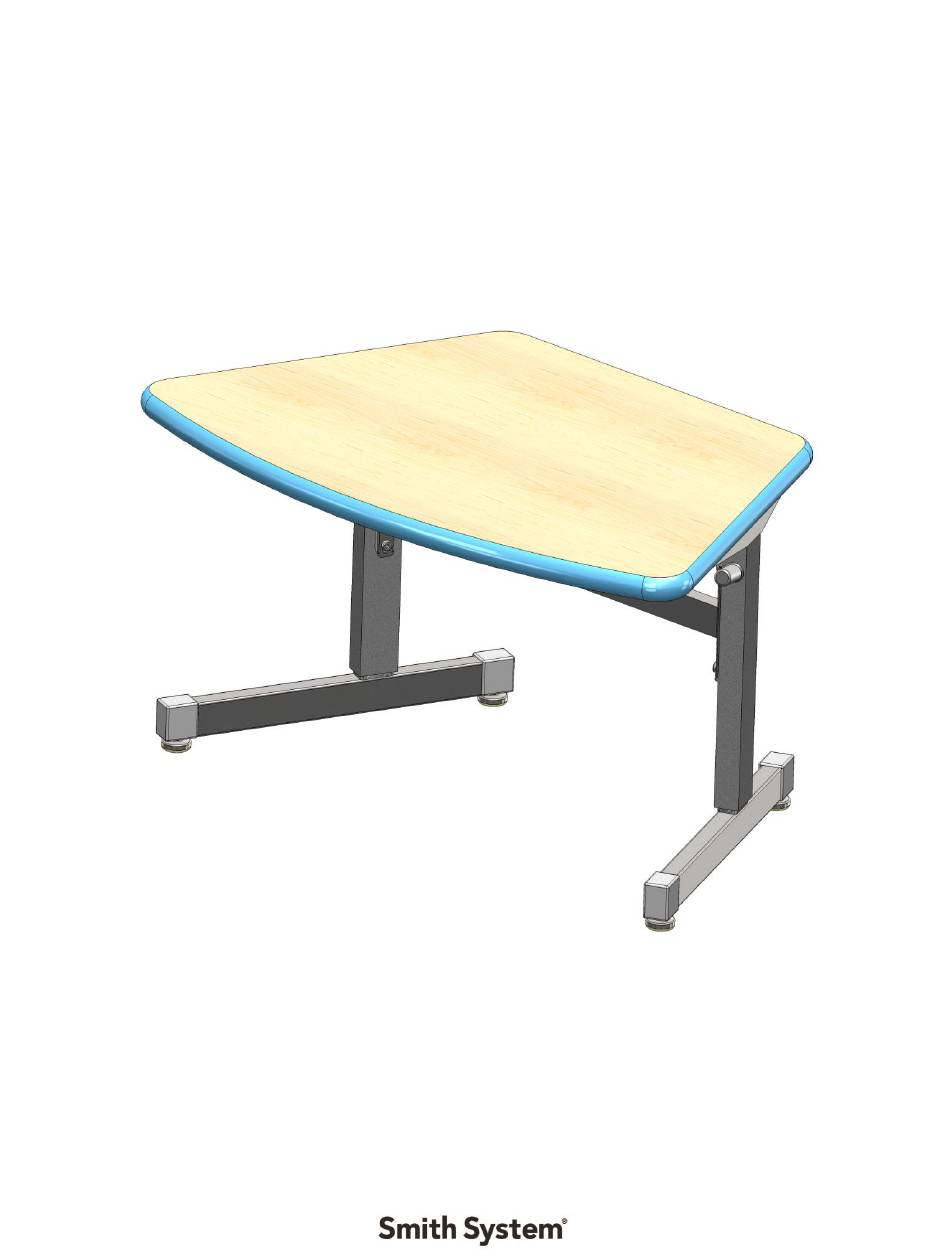

- Page 1 Assembly Instructions Silhouette Arc Desk Models: 01620, 01621, 01622 Fixed Height Tables If you have damaged or missing components, Please contact customer service at 1-800-328-1061 Form# 179000 07/2018...
- Page 2 Hardware and Components 3/8-16 DOG POINT SET SCREWS (4) PRE-INSTALLED IN LEGS T-LEG SET (1) 01620 – ADJUSTABLE HEIGHT 01621 – FIXED HEIGHT W/GLIDES 01622 – FIXED HEIGHT W/CASTERS Special Notes Check that all components are accounted for and undamaged before assembling.
- Page 3 Assembly Instructions 1. Using supplied allen wrench, attach legs to cross brace using M8-12mm cap screws. 2. Place the table top on a smooth surface facing down and attach the legs using #10 wood screws. Form# 179000 07/2018...
- Page 4 Assembly Instructions Continue 3. Identify desired height setting. Using the allen wrench, secure the adjustable legs using 3/8-16 dog-point set screws. a. NOTE: if your desk came with fixed height leg set, you may skip this step and go to step 4. 4.
