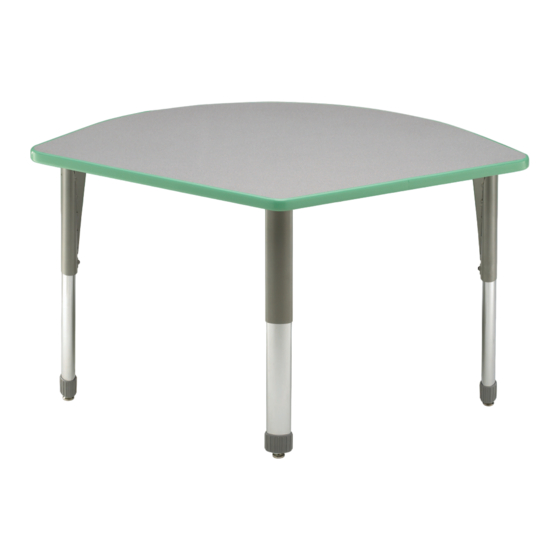

3-2-1 Interchange Desk
Assembly Instructions
Model Numbers
03002
03011
For Assistance in assembling product, missing or damaged parts, or to place an order, please contact
customer service at 800-328-1061.
You may also place your order online at
06/2018
www.smithsystem.com
Form #179962
Advertisement
Table of Contents
Related Manuals for SMITH SYSTEM 03002
Summary of Contents for SMITH SYSTEM 03002

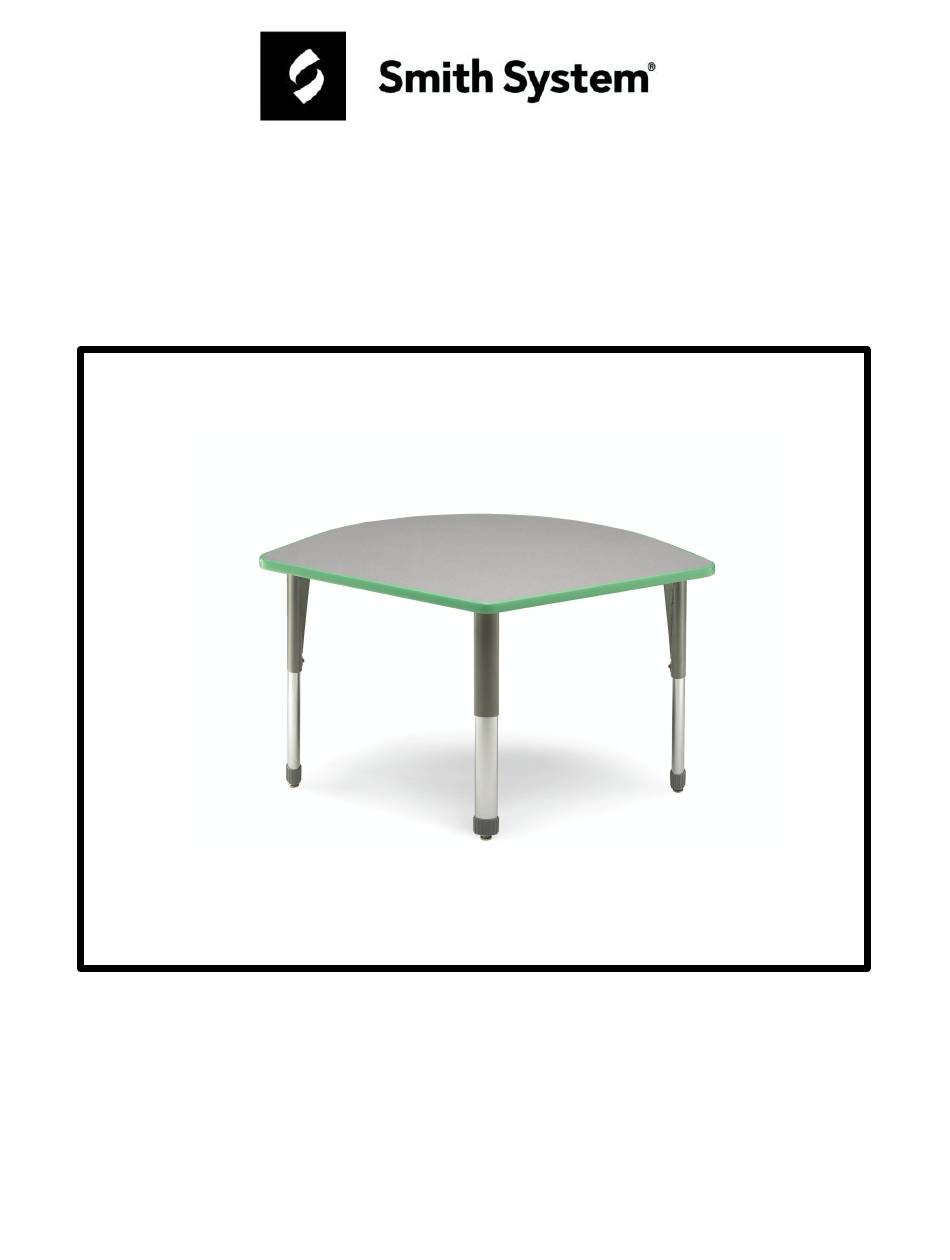

- Page 1 3-2-1 Interchange Desk Assembly Instructions Model Numbers 03002 03011 For Assistance in assembling product, missing or damaged parts, or to place an order, please contact customer service at 800-328-1061. You may also place your order online at 06/2018 www.smithsystem.com Form #179962...
- Page 2 3-2-1 Desk Installation Guide (03002 / 03011) Parts Required #10 Wood Screw (Qty. 20) Allen Wrench (Qty. 2) P/N-70080 P/N-77813 Connector Bolt (Qty. 1 of each) 3/8” – Dog Nut Screw (Qty. 4) P/N-70867 Connector Bolt P/N-77741 P/N-70869 Connector Nut...
- Page 3 8 screws included in the leg set hardware pack (screws should not be completely tightened). Attach side legs using screws included in the leg set hardware pack. 03002 03011 If you have damaged or missing components please contact customer service.
- Page 4 Step 3: Attach other side of legs using screws included in the leg set hardware pack Step 4: Attach all three legs together using the connector bolts included in the leg set hardware pack. Hex keys (Allen Keys) were also provided in the hardware pack to assist this step. Step 5: Tighten all screws and bolts.
