Hard Plastic Flex Desk Installation Guide
#10 X 7/16 Plastite Screw
P/N: 67208
(QTY: 12)
Modesty Panel
(QTY: 1)
P/N: 70867 – Connector Bolt ¼-20x23mm
P/N: 70871 – Connector Nut ¼-20x17mm
(QTY: 4 each)
For Assistance in assembling product, missing or damaged parts,
or to place an order, please contact customer service at 800-328-1061
Form# 179810
(Model 01362, 01369)

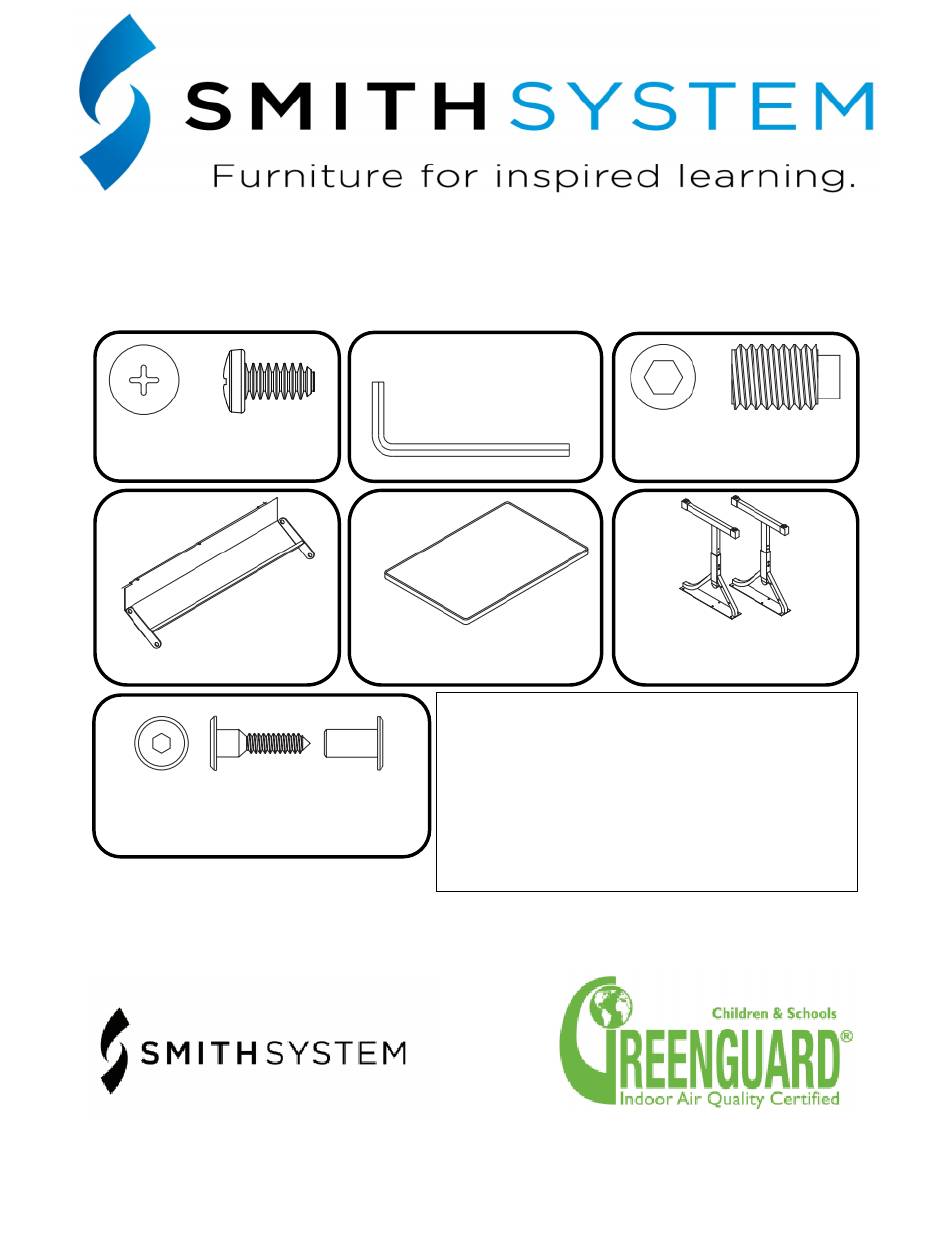

Hardware and Components
HEX KEY 3/16"
P/N: 77813
(QTY: 2)
Hard Plastic Table Top
(QTY: 1)
1. 67204-R – HDWR Pack, HP top Flex/PSD Desk
a. (12) 67208 – Pan Phil THD Roll Plast 10x1/2
2. 69729-R – Y-Leg Hardware Pack
a. (4) 70870 – Connector Bolt ¼-20x23mm
b. (4) 70871 – Connector Nut ¼-20x17mm
c. (2) 77813 – 3/16" Allen Wrench Short Arm
d. (17) 70054 – ¾" Wood Screw
You may also place your order online at
www.smithsystem.com
3/8"-16 Dog Sckt Screw
P/N: 77741
(QTY: 4)
Y Leg Set
(QTY: 2 legs per set)
Replacement Hardware Packs:
04/2013
Advertisement
Table of Contents
Related Manuals for SMITH SYSTEM 01362
Summary of Contents for SMITH SYSTEM 01362
- Page 1 Hard Plastic Flex Desk Installation Guide (Model 01362, 01369) Hardware and Components HEX KEY 3/16” P/N: 77813 (QTY: 2) 3/8”-16 Dog Sckt Screw #10 X 7/16 Plastite Screw P/N: 77741 P/N: 67208 (QTY: 4) (QTY: 12) Modesty Panel Y Leg Set...
- Page 2 Step 1: Place the table top on a smooth, clean surface with the bottom facing up. Step 2: Loosely attach the panel to the legs using the supplied connector bolts. LEAVE FINGER TIGHT. (Diagram 2) Step 3: Align the frame assembly with the predrilled holes in the top and use the supplied #10 screws to loosely attach the frame to the table top (Diagram #1) Step 4: Go back to assembly and completely tighten the connector bolts.
