IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
C.
Top Rail
1 pc.
D.
Side Rail
2 pcs.
Hardware List
Hex Wrench
1 pc.
Key Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05064 0088

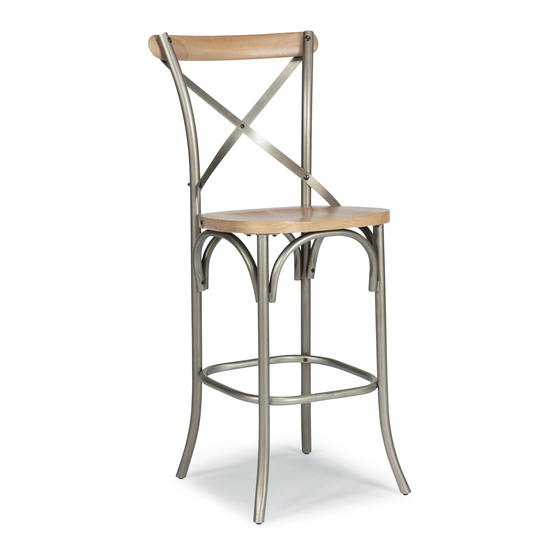

Bar Stool
B.
Front Leg
1 pc.
E.
Back Rail
2 pcs.
Small
M6x16
Hex Wrench
Head Cap Bolt
1 pc.
4 pcs. (+1 extra)
M6x13
Nut Cap
Bolt (short)
5 pcs. (+1 extra)
3 pcs. (+1 extra)
F.
Back Leg
1 pc.
M6x30
Small
Flat Head Bolt
Flat Washer
12 pcs. (+1 extra)
5 pcs. (+1 extra)
M6x40
M6x60
Bolt
Bolt (long)
2 pcs. (+1 extra)
2 pcs. (+1 extra)
888-680-7460, 877-831-0319
G.
Foot Rest
1 pc.
Flat Washer
4 pcs. (+1 extra)
Spring Washer
4 pcs. (+1 extra)
