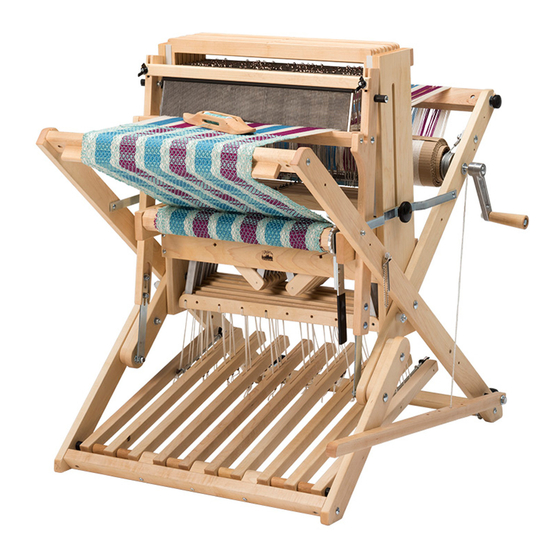

WOLF PUP 8.10 LOOM
A
ssembly
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
p. 303.442.3212 f. 303.447.9273
© 2018 Schacht Spindle Company, Inc.
I
nstructIons

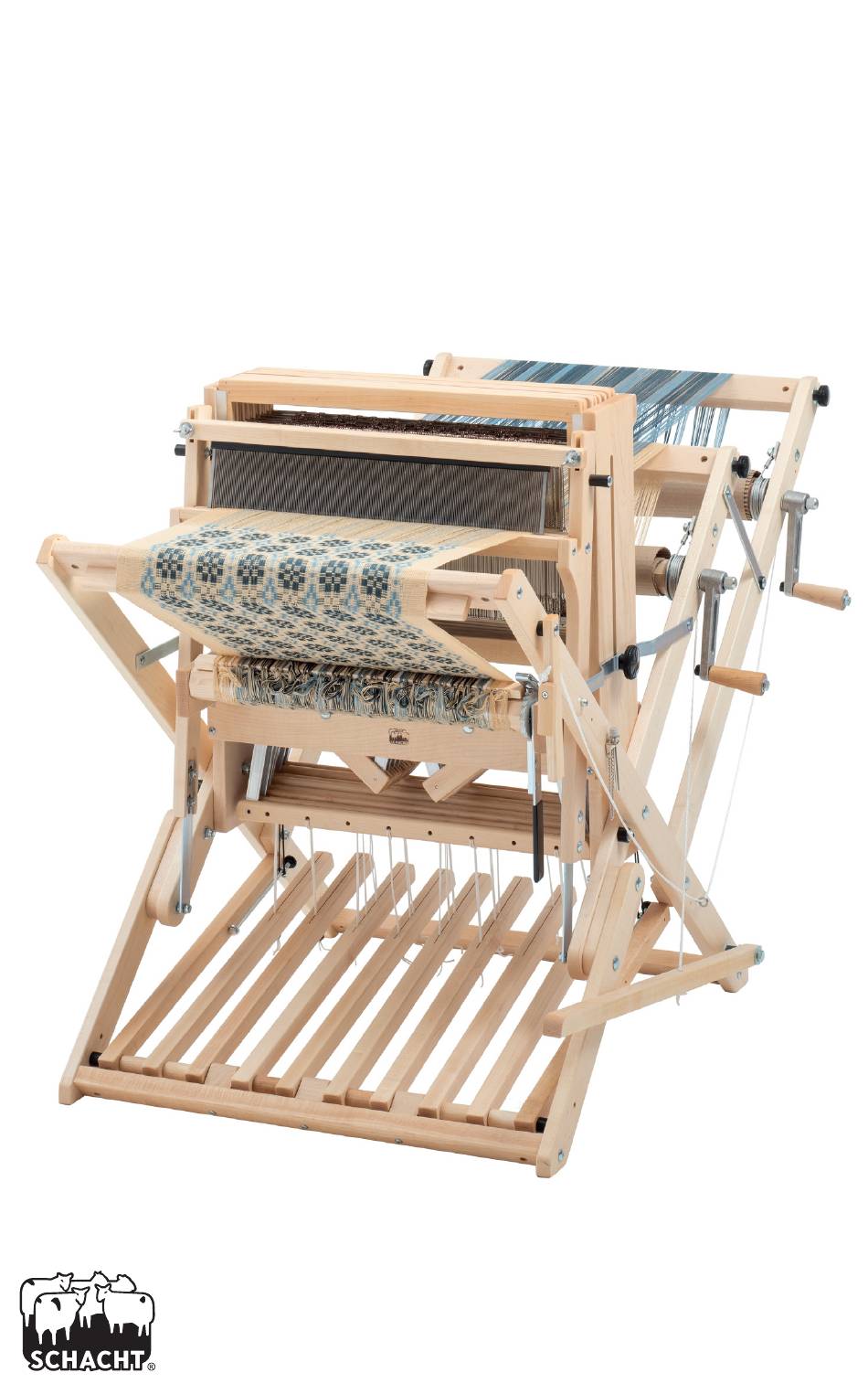

Wolf Pup 8.10 with optional double back beam
TM
FL3008
FL3010
12.18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Schacht WOLF PUP 8.10 LOOM
Summary of Contents for Schacht WOLF PUP 8.10 LOOM
- Page 1 WOLF PUP 8.10 LOOM FL3008 FL3010 ssembly nstructIons Wolf Pup 8.10 with optional double back beam Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 p. 303.442.3212 f. 303.447.9273 © 2018 Schacht Spindle Company, Inc. 12.18...
-
Page 2: Before You Begin
WOLF PUP 8.10 ssembly nstructIons beater brake fold knob ratchet gear ratchet advance lever outside leg inside leg brake release pedal BEFORE YOU BEGIN ■ All Wolf looms assemble in a similar way. Watch the Baby Wolf assembly video on our Youtube channel (www.youtube.com/user/schachtspindle). - Page 3 PARTS Wrapped onto warp beam: Hardware bag 2: apron bars 3/8" cap nut for warp beam crank lease sticks (with holes) handle 22" treadle aid dowel 3/8" washer for warp beam crank 16X heddle bars handle Accessory pack: extra 8/32" hex nuts for shafts brass reed hook #12 SAE washers warp beam crank handle...
- Page 4 the brake cord to let the pedal down: remove the peg from its position above the pedal (Figure 2A), but leave it inserted in the marked (black) loop at the end of the brake cord (Figure 2B). INSTALLING THE BEATER PEGS Do not remove the string attaching the beater to the castle.
- Page 5 end through the second hole in the end of the cord that you just put through the beam. Pull firmly on the cord to tighten (Figure 5A). Repeat across the cloth beam and the warp beam. To attach the apron bar to the apron cords, take a pinch of the cord about 4"...
- Page 6 lamm tie-up cords through them just as in the other lamm holes. Loop one end of each tie-up cord through a hole in the lamm. Tie shafts to a treadle by slipping a tie-up cord into the slot in an inner treadle (Figure 8). Work from the front lamm to the rear lamm for end of treadle (rear view) each treadle.
-
Page 7: Installing The Wheels
right outside leg INSTALLING THE WHEELS (viewed from back of loom) 1/4-20 x 1-1/2" Skip this step if you will install a stroller Phillips truss head on your loom. With the loom unfolded, machine screws install the wheels. Use two 1/4-20 x 1-1/2" lock nuts Phillips truss head machine screws and two 1/4-20 lock nuts to attach each wheel... - Page 8 ADJUSTING THE FRICTION BRAKE The friction brake can be adjusted by brake bar tightening or loosening the eye bolt. This bolt will increase or decrease the tension on brake cable the spring, which will in turn increase or decrease the tension on the brake bar and spring the brake cable.
