Schacht WOLF PUP 8.10 STROLLER Assembly Instructions

Table of Contents

Download this manual

WOLF PUP 8.10

STROLLER

ssembly

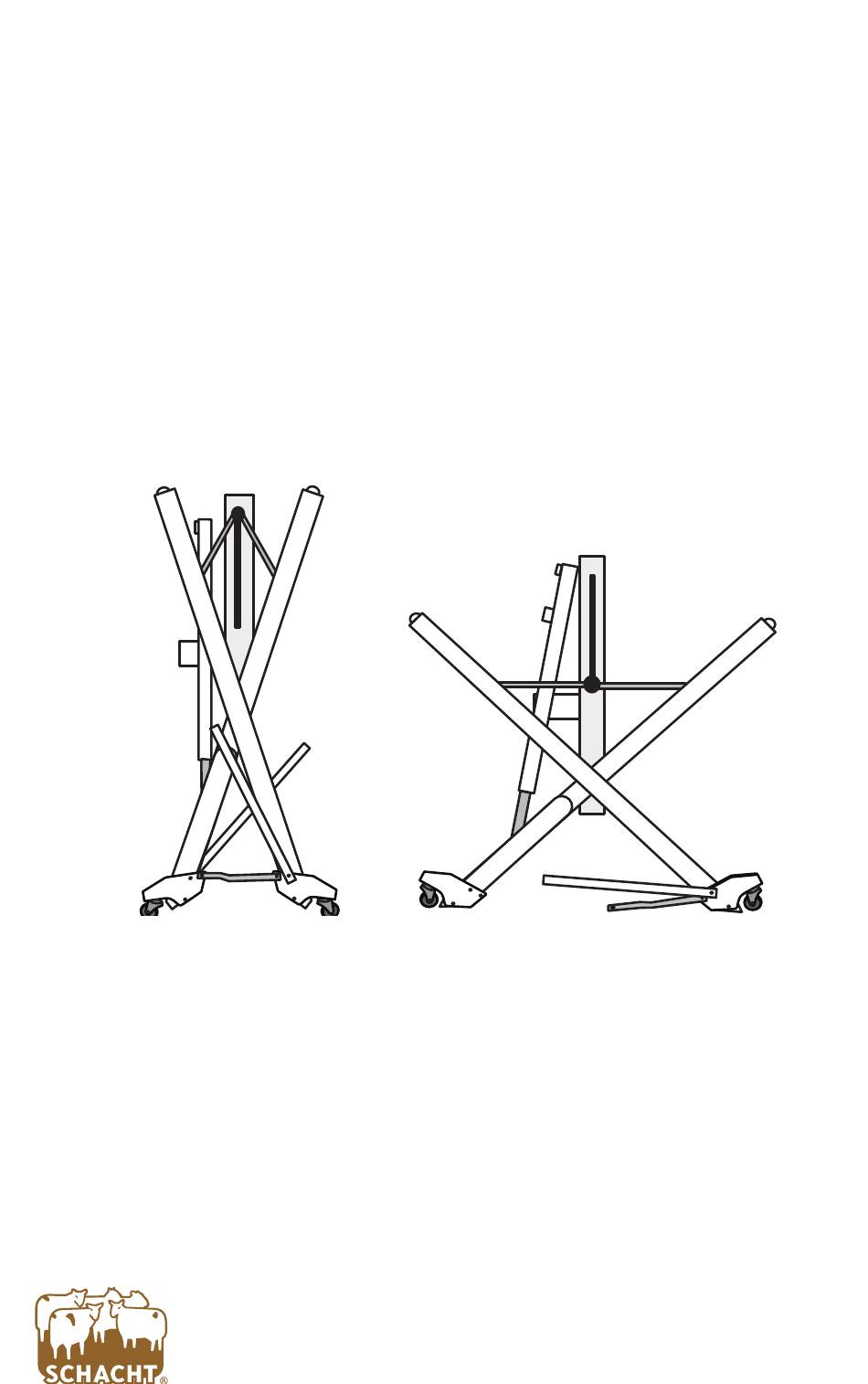

folded—ready to travel

for installation on

All other Wolf looms without height extender require the Wolf Stroller (FL3051);

all Wolf looms with height extender require the Wolf Height Extender Stroller

(FL3053). If you received this booklet with FL3051 or FL3053, please visit our

website for the correct booklet.

Find out more at schachtspindle.com

Schacht Spindle Company 6101 Ben Place Boulder, CO 80301

p. 303.442.3212 f. 303.447.9273

Without height extender

nstructIons

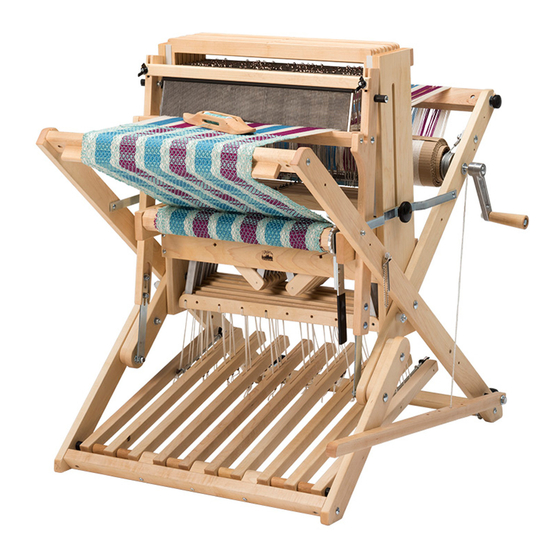

open—ready to weave

8.10

olf

FL3052

looms

11.18

Table of Contents

Need help?

Do you have a question about the WOLF PUP 8.10 STROLLER and is the answer not in the manual?

Page 1 (FL3053). If you received this booklet with FL3051 or FL3053, please visit our website for the correct booklet. Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 p. 303.442.3212 f. 303.447.9273 © 2018 Schacht Spindle Company, Inc.
Page 2 Please read all instructions prior to beginning installation. If you installed the wheels that came with your loom, we recommend that you take them off before installing the Wolf Pup 8.10 Stroller. Wolf loom legs are called out by where they cross each other. The legs that touch the ground at the front of the loom are called “inside”...
Page 3 Set the rear leg brace on a block of inside leg wood or a few books to elevate the loom back about two inches. Remove the machine screws and barrel nuts holding the rear leg brace to the outside legs at hole [B] (Figure 1, page 2).
Page 4 Attach the hex bolt to hold the front 1/4-20 x 1-3/4" of the stroller bar. From the inside of the hex bolt loom, insert a 1/4-20 x 1-3/4" hex bolt through hole [G] in the front caster block. Secure the hex bolt with a 1/4" washer and a 1/4-20 lock nut.
