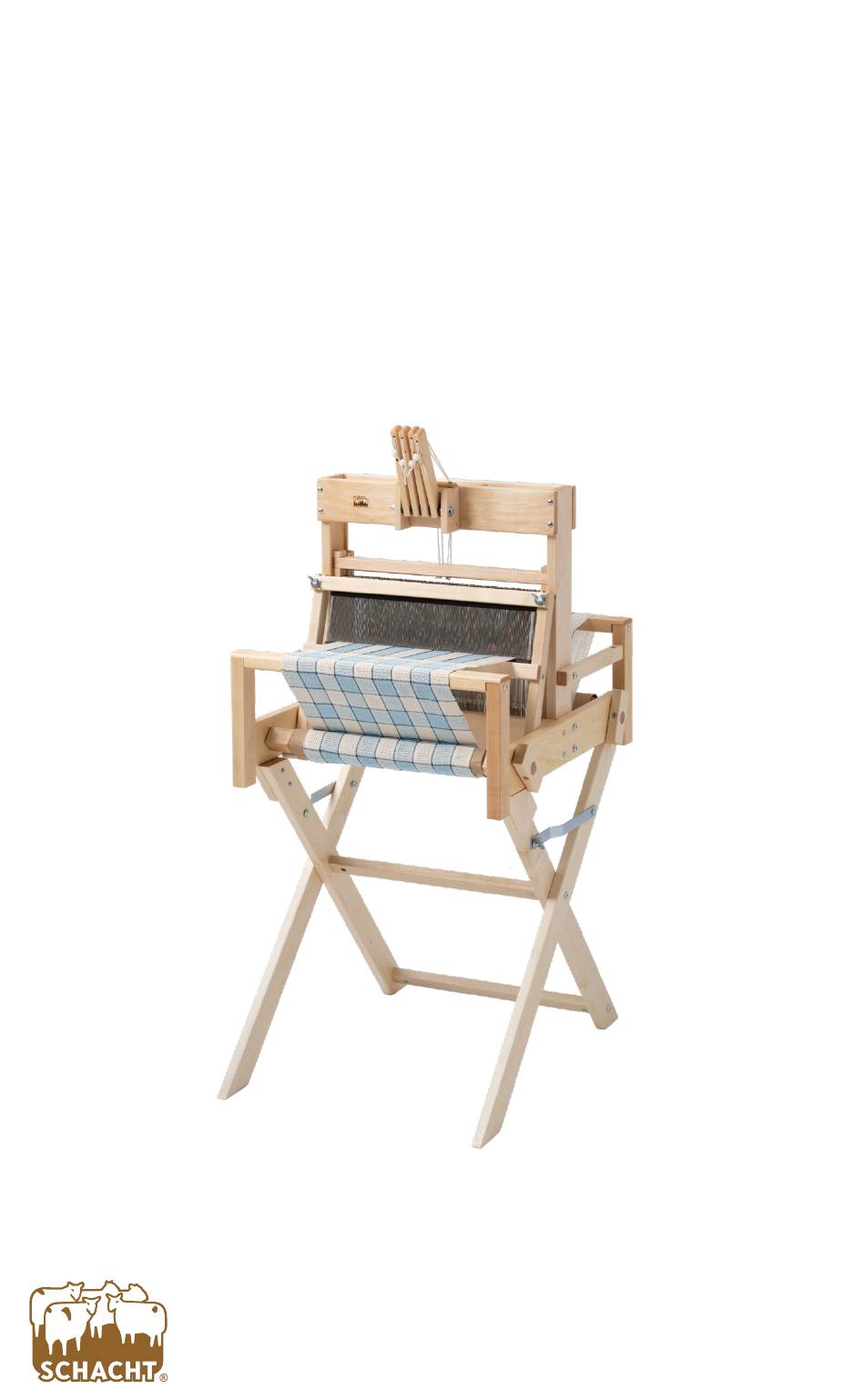

- Page 1 TABLE LOOM TL1105 TL1106 FLOOR STAND TL1107 ssembly nstructIons Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 p. 303.442.3212 f. 303.447.9273 © 2020 Schacht Spindle Company, Inc. 07.20...
- Page 2 TABLE LOOM FLOOR STAND ssembly nstructIons HARDWARE PARTS metal support bars cross braces 10-24 x 1-1/4" carriage bolts inside legs with attached blocks 10-24 lock nuts outside legs #12 SAE washers wooden drill guide (for older 1/4-20 x 1-1/2" carriage bolts looms only) 1/4-20 washer wing nuts TOOLS NEEDED...
- Page 3 then from the outer side of the stand, with the washer wing nut and tighten insert the carriage bolt through the top by hand. Now go back to the lock nut hole in an outside leg. Then place a #12 attached in Step 5 and tighten it as much SAE washer on the carriage bolt and as possible.
- Page 4 RETROFITTING AN OLDER TABLE LOOM FOR THE FLOOR STAND firmly against the inside of the table loom If you have an older model table loom leg. Drill each hole to a depth of 3/4". without holes in the underside of the The drill guide has an A and a B end base, you need to drill holes in your loom (Figure 3).
