SCHACHT
STANDARD

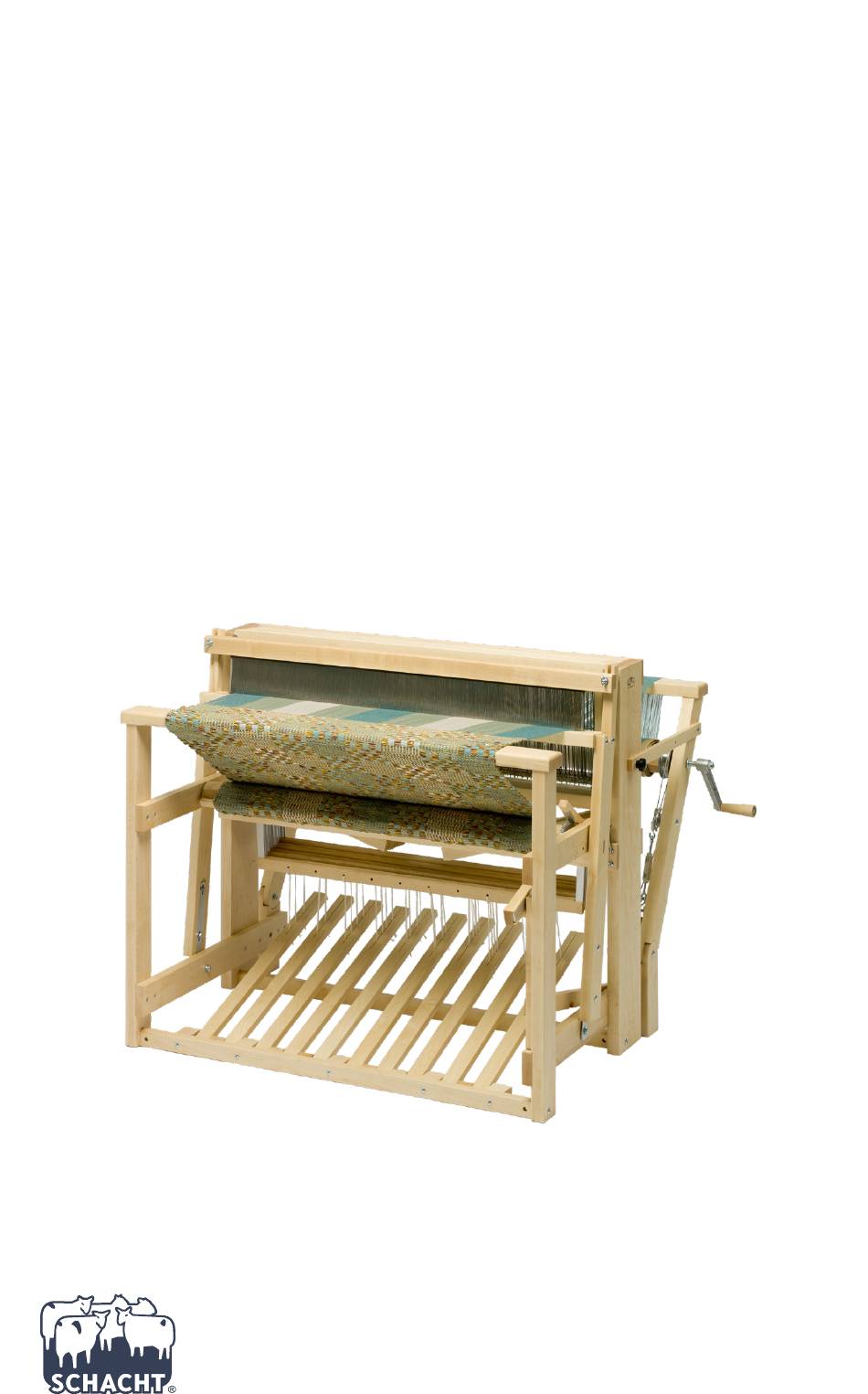

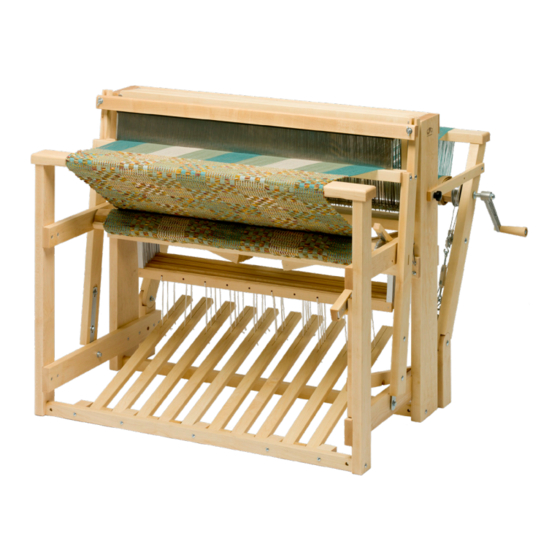

FLOOR LOOM
A
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
p. 303.442.3212 f. 303.447.9273
© 2020 Schacht Spindle Company, Inc.
ssembly
LOW CASTLE LOOM IN MAPLE
TM
instructions
FL3109
FL3310
FL3111
FL3312
FL3113
FL3314
FL3115
FL3316
FL3121
FL3322
FL3123
FL3324
FL3125
FL3326
FL3127
FL3328
01.20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Schacht FL3109
Summary of Contents for Schacht FL3109
- Page 1 FL3123 FL3324 FL3125 FL3326 FLOOR LOOM FL3127 FL3328 ssembly instructions LOW CASTLE LOOM IN MAPLE Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 p. 303.442.3212 f. 303.447.9273 © 2020 Schacht Spindle Company, Inc. 01.20...
-
Page 2: Tools Required
SCHACHT STANDARD FLOOR LOOM ssembly nstructions PARTS Wrapped onto warp beam: tie-ups (8-1/8"): apron bars 80 for 36" loom, 96 for 45" loom lease sticks extra 8/32" hex nuts for shafts brass reed hook Accessory packs: 11" boat shuttle & bobbin... - Page 3 UNFOLDING THE BACK BEAM ATTACHING THE WARP BEAM CRANK HANDLE When you receive your loom, the back beam will be folded up against the castle. The warp beam crank handle attaches to It is fastened in position with a black fold a threaded rod on the right back leg of knob that passes through the back beam the loom (Figure 1).
- Page 4 warp beam ADJUSTING THE FRICTION BRAKE Adjust the friction brake’s action by tightening or loosening the turnbuckle (Figure 2). To see if the friction brake is turnbuckle adjusted properly, run the following test: Stand at the rear of the loom and grip the warp beam firmly with both hands.
- Page 5 and pull tight. Repeat until all cords are heddle bars in the shaft frame by bending attached to the apron bar. Attach the other the bars slightly. Secure the heddle apron bar to its beam in the same way. bars in the heddle bar hooks (Figure 5). Replace the shaft in the castle, insert the INSTALLING THE HEDDLES IN THE jack pin into the hole in the bottom of...
- Page 6 Work from the front lamm to the rear REMOVING SHAFTS ON HIGH lamm for each treadle. Loop one end CASTLE LOOMS of the tie-up cord through the lamm as To remove the shafts from the castle, illustrated. Slip the cord through the slot you must first remove the accessory tray in the treadle.
- Page 7 ADDING A LAMP The high castle loom has holes in the top of the castle for the swivel pin of a lamp (Figure 7). • hole for lamp castle side beater top beater side beater bottom ratchet dog ratchet gear ratchet advance lever brake release hold beater support...
- Page 8 ACCESSORIES FOR SCHACHT FLOOR LOOMS Sectional Warp Beam (in maple or cherry) Double Back Beam (in maple or cherry) Tension Box for sectional warping Loom Bench with Bench Bags Spool Rack (in maple or cherry) for sectional warping – 8 –...
