Summary of Contents for Schacht TABLE LOOM

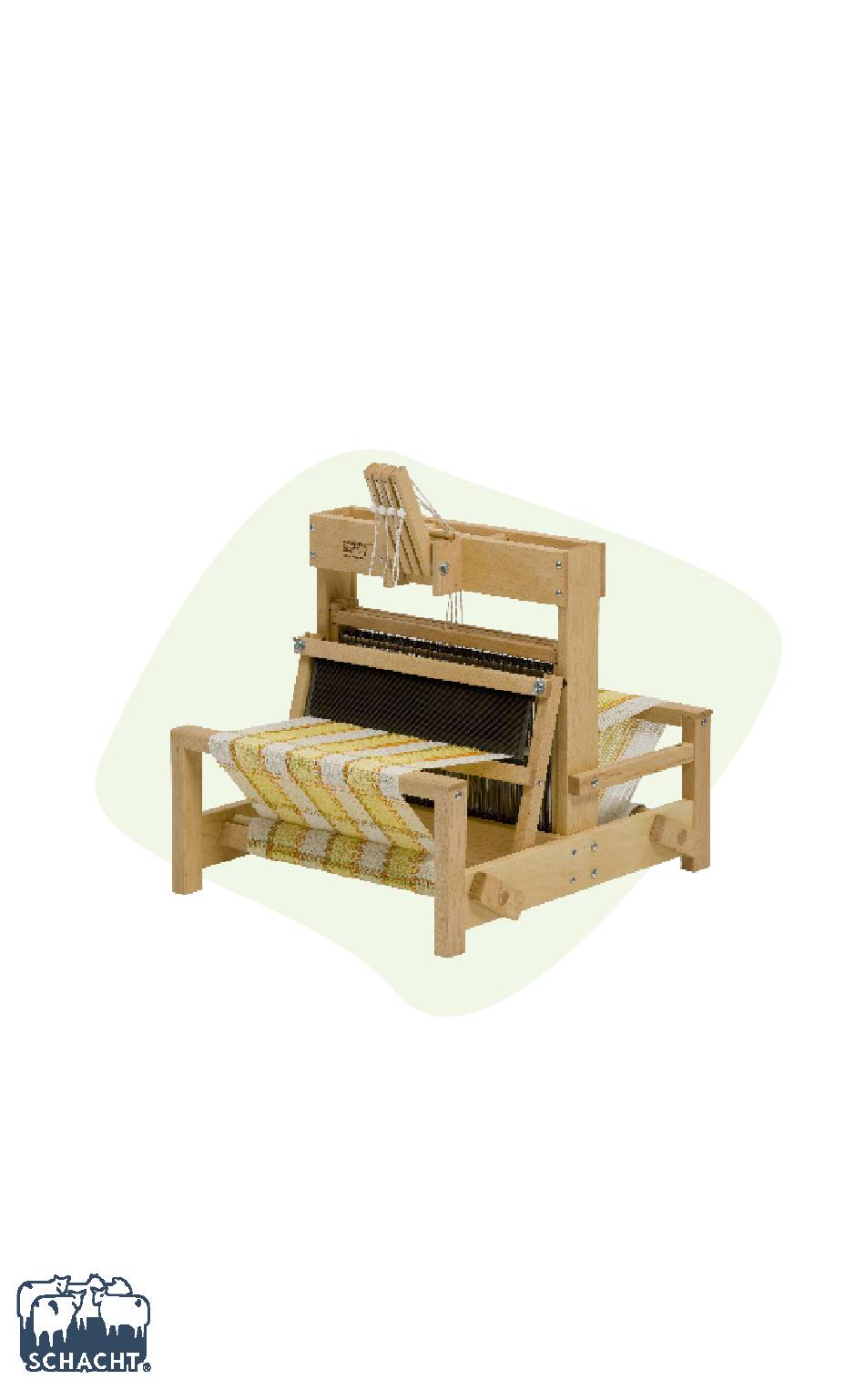

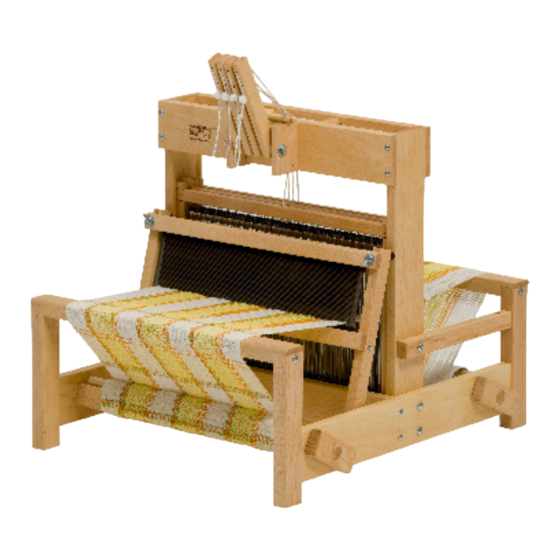

- Page 1 TABLE LOOM ssembly nstructIons Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 p. 303.442.3212 800.228.2553 f. 303.447.9273 © 2011 Schacht Spindle Company, Inc. 02.11...
- Page 2 8-Shaft: 15" – 300; 20"– 400; 25" – 500 4 - #8 x 1½" Trusshead screws (for 8S only) Unpack the table loom and remove all of the packing material and tape. Locate the small plastic bag which contains the hardware and the apron cords for your loom (see parts list).
- Page 3 and 2 on the 8S). Tighten the screw at from the end and insert this doubled the rear of the castle brace. cord through the second loop from the end of the cord (see Fig. 2B). Peel the backing off the rubber Slide the apron bar through the loop bumpers and press them into the formed by the doubled over cord at...
- Page 4 per shaft) to support the heddle bars. Slip the hooks through the holes near the center of the top and bottom shaft frame. Bend the heddle bar slightly to Lever Cord snap it into the hook. Rear Dowel Insert the shafts back into the castle from the bottom of the castle.
