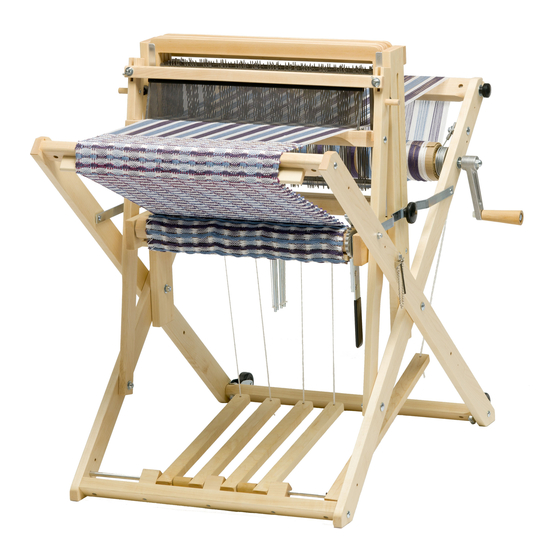

WOLF PUP 8.10 LOOM
A
ssembly
BEFORE YOU BEGIN
■ Please read through the directions before beginning to
assemble your loom.
■ Unpack the loom parts carefully. Do not throw away
the carton or any of the packing material until you have
checked to see that all of the parts and hardware have been
received
■ All hardware is sized in inches. Illustrations of the vari-
ous hardware and an inch scale are provided to aid you in
determining the correct piece of hardware to use.
■ Before starting the assembly, read the instructions com-
pletely and familiarize yourself with the drawings and parts.
■ Follow the exact order of assembly. Take care and work
slowly. If you have someone to help you, the assembly will
be easier.
TOOLS
#2 Phillips screwdriver
Adjustable wrench
Flat screwdriver
HARDWARE LIST
Note: Parts pictures are not to scale. Listed part quantities
are what is needed for assembly. There may be extras of
some parts. Parts may not be pictured in every listed size.
HARDWARE BAG A – STEPS 1-3
4 – Fold bars
4 – 3/16" x 1-1/4" carriage bolts
4 – 3/16" lock nuts
8 – 3/16" washers
2 – 1/4" washers
2 – 5/16" lock nuts
2 – Black knobs w/ 1" threaded shaft
2 – Plastic bearings
HARDWARE BAG B – STEPS 4-8
4 – 1/4" x 2" machine screws
2 –1/4 x 3" machine screws
6 – 1/4" barrel nuts
1 – Ratchet advance lever
2 – 3/8" USS washers
4 – #8 x 1-1/2" screws
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
p. 303.442.3212 f. 303.447.9273
© 2018 Schacht Spindle Company, Inc.
I
nstructIons
K
for nocKed
■ When you finish assembling the loom, go back over all
of the screws and make sure they are tight. It is a good idea
to re-tighten the screws every few months. Remember not
to tighten those screws and bolts which are supposed to
allow their parts to pivot.
■ All wooden parts of the loom have been finely sanded
and finished with hand-rubbed Danish oil. From time to
time you may wish to apply more finish to the loom. Use a
Danish oil (tung oil and polyurethane mixture) and hand
rub the wood with a soft, lint-free cloth. Be sure to follow all
the manufacturer's instructions.
■ You may find our Baby Wolf assembly video helpful,
since much of the assembly is the same. Visit our YouTube
channel at youtube.com/user/schachtspindle
1-1/4" carriage bolt
1-1/2" machine screw
2" machine screw
2-1/2" carriage bolt
1-1/2" screw
Ratchet advance lever assembly
Fold bar
- 1 -
-d l
own ooms
Plastic bearing
Knob w/ 1" shaft
Wing nut
Lock nut from top
Slim lock nut
Lock nut
Barrel nut
05.18
