Summary of Contents for Schacht WOLF PUP 8.10 HEIGHT EXTENDER

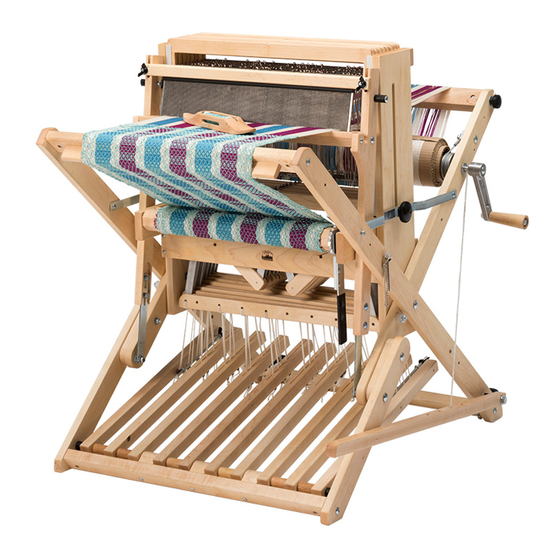

- Page 1 WOLF PUP 8.10 HEIGHT EXTENDER ssembly nstructIons For more information: schachtspindle.com Schacht Spindle Company, 6101 Ben Place, Boulder, CO 80301 p. 303.442.3212 f. 303.447.9273 © 2017 Schacht Spindle Company, Inc. 08.17...
- Page 2 WOLF PUP 8.10 HEIGHT EXTENDER ssembly nstructIons PARTS INCLUDED FOR REUSED PARTS HEIGHT EXTENDER 4 - Barrel nuts 6 - 1/4-20 x 1-3/4” Truss head bolts 2 - 1/4-20 x 3” Truss head bolts 2 - 1/4-20 x 1-1/2” Truss head bolts REQUIRED TOOLS 2 - 1/4-20 x 2-1/2”...
- Page 3 snap ring At the front, remove the bolts and Unfold the loom on a flat surface. barrel nuts from each side of the treadle Tighten the black fold knobs so the loom support and set aside the barrel nuts for is fully extended and locked(figure 1).
- Page 4 ADDITIONAL WEAVING ACCESSORIES Wolf Loom Raddle Wolf Sectional Beam Wolf High Castle Tray Wolf Trap hole Middle hole Bottom hole Left Left Right Right Outside Leg Height Extenders Inside Leg Height Extenders FIGURE 2...
