Reznor RHC 8000 RJL Application Instructions page 10

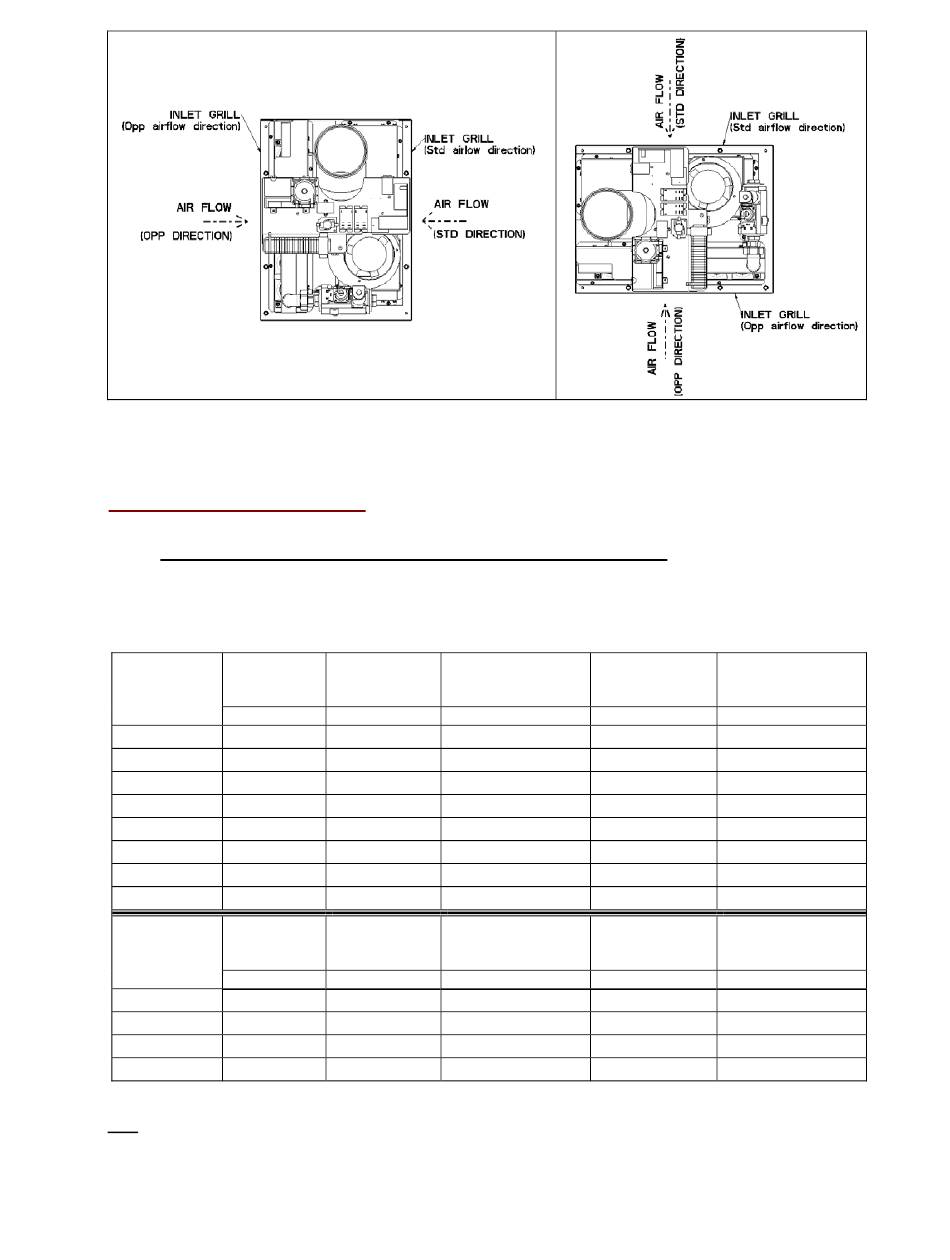

Figure 5 : Installation possibilities for RHC 8000(M) air heater modules
Always ensure that the inlet perforated profile plate (when required) is installed at the air 'inlet' side of the heat
exchanger as shown in figure 5
4.0 L
IMITATIONS FOR
4.1 Heat exchanger compartment
4.1.1 Minimum airflow requirement through heat exchanger enclosure :
RHC 8000(M) RJL & DJL air heaters may be used for either push or pull through air heaters.
The min. airflow duty through the heat exchanger enclosure (see fig. 4 – table 2) must be
observed as indicated in table 3.
Table 3 : Airflow duty
MODEL
8030 06
8045 09
8050 06
8060 12
8075 09
8075 15
8090 18
8100 12
MODEL
8125M.15
8150M.18
8175M.21
8200M.24
V1 = min. airflow required through enclosure
Note : The RHC units can be supplied with option 523 (perforated inlet plate at the air inlet side). This perforated plate
assures the proper efficiency of the heater in the lower airflow range (below V2 (cfr. table 3)). At higher airflow this
perforated plate can be removed thus reducing the pressure drop over the heating section without loss of efficiency (see
also section 10).
0710RHC8-JLNLEN
.
U
SE
V1 V2
m³/h m³/h
3750 4400
5650 6600
6200 7150
7500 8750
9300 10790
9300 11900
11200 14300
12400 14300
V1 V2
m³/h m³/h
15600 18000
18200 21000
20100 21500
23300 24000
Heat output Heat output
100% - 1 stage 50% - 2 stage
kW
30. 10 14. 20
45. 50 21. 40
50. 00 24. 00
60. 50 28. 60
75. 00 35. 40
74. 98 35. 27
90. 09 43. 16
100. 00 46. 60
Heat output
Heat output
low stage
100% - 1 stage
(bottom unit)
kW KW
125. 42 51. 02
149. 79 74. 90
172. 48 98. 21
200. 00 101. 20
V2 = min. airflow required without perforated plate
Minimum
modulating
output
kW kW
8. 50
12. 90
14. 40
17. 10
21 .20
35. 27
43. 16
28. 00
Minimum
modulating
output
kW
25. 45
36. 28
47. 80
50. 05
10/36
