Reznor UDAP Installation & Operation Manual

Reznor UDAP Installation & Operation Manual

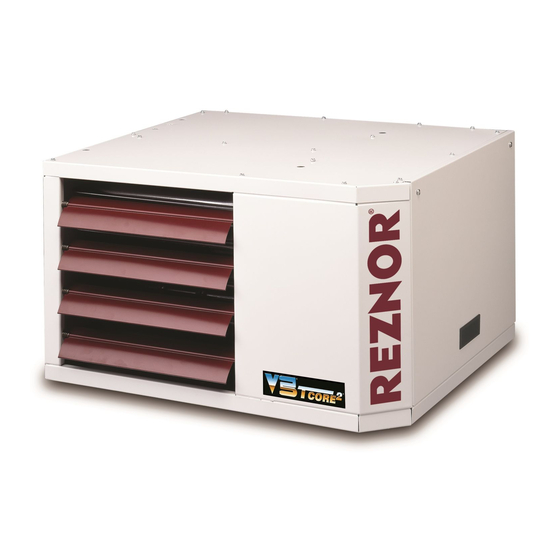

V3 series fan-type unit heaters

Advertisement

What to do if you smell gas:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call your fire department.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, injury, or death. Read the installation, operation, and maintenance
instructions thoroughly before installing or servicing this equipment.
Installation/Operation
FOR YOUR SAFETY
FOR YOUR SAFETY
WARNING:

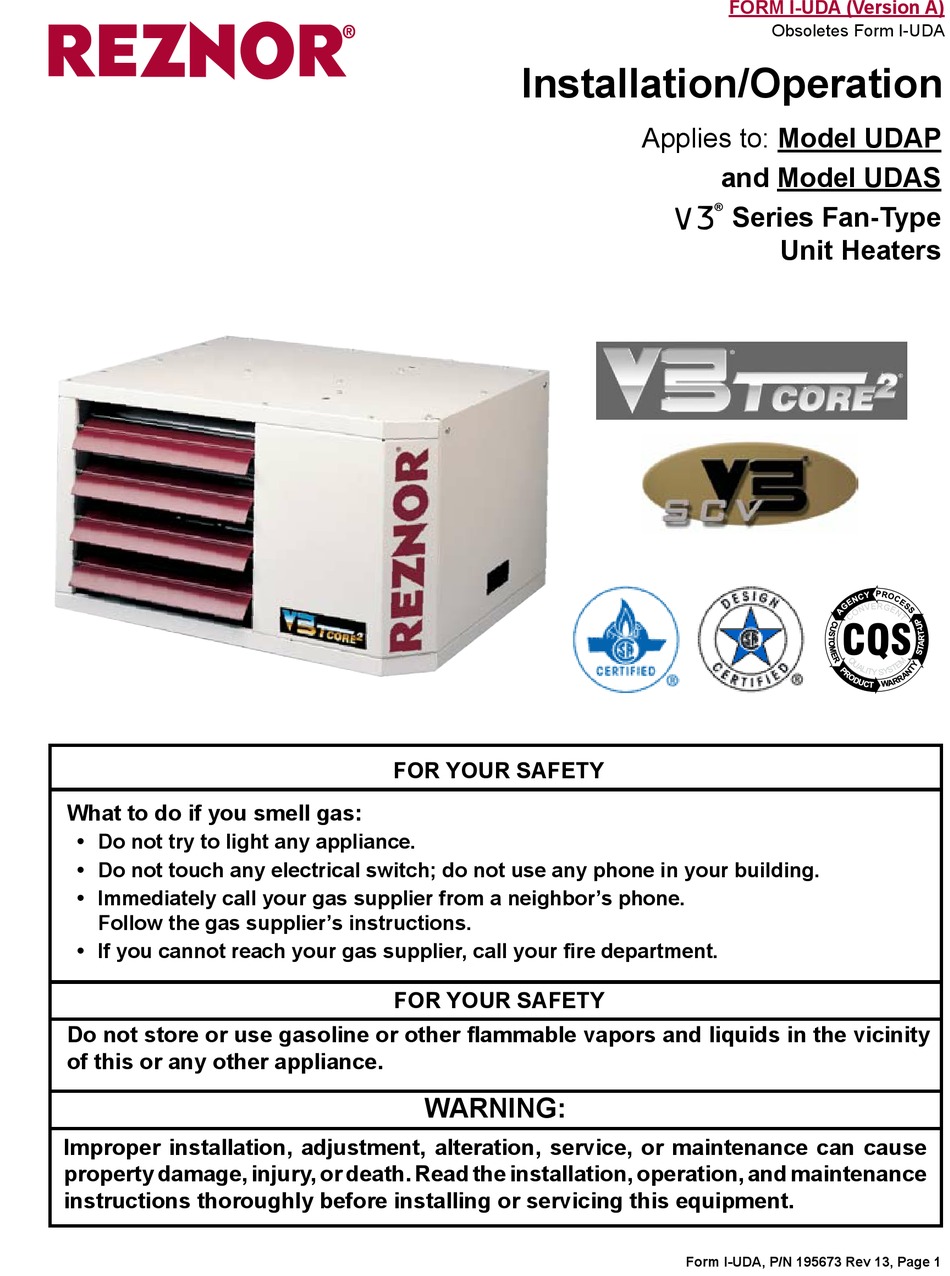

FORM I-UDA (Version A)
Obsoletes Form I-UDA
Applies to: Model UDAP
and Model UDAS
Series Fan-Type
Unit Heaters
Form I-UDA, P/N 195673 Rev 13, Page 1
���

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDAP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Reznor UDAP

  • Page 1 FORM I-UDA (Version A) Obsoletes Form I-UDA � Installation/Operation Applies to: Model UDAP and Model UDAS Series Fan-Type � Unit Heaters ��� FOR YOUR SAFETY What to do if you smell gas: • Do not try to light any appliance.
  • Page 2: Table Of Contents

    10.3. Troubleshooting ........35 6. Mechanical ..........11-16 APPENDIX ............38 6.1 Gas Piping and Pressures ......11 6. Combustion Air - UDAP and UDAP-CV ..16 INDEX ............... 39 1. General 1.1 Hazard Labels and Notices There are warning labels on the unit and throughout this manual. For your safety, read the definitions below and comply with all boxes labeled CAUTION, WARNING, and DANGER during installation, operation, maintenance, and service of this heater.
  • Page 3: General

    1..1 Certification 1. General Model UDAP 30, 45, 60, 75, 100, and 125 and Model UDAS 30, 45, 60, 75, 100, and Installation 125 are design certified by the Canadian Standards Association for use in residential, Information industrial, and commercial installations.
  • Page 4: Warranty

    2.2; the weights in Paragraph 5.1; and the venting requirements in the Venting Manual to determine where to suspend the heater. .1 Heater Throw ���������������������������������������������������� ������������������ FIGURE 1 - Throw for Fan Models UDAP and � UDAS � � ���...
  • Page 5: Location Recommendations

    Dimensions X, Y, and Z (feet) Model UDAP and Model UDAS with Standard Horizontal Louvers at Mounting Heights of 5 - 18 ft 5 ft -21° -20° -16° -14° -18° -14° 8 ft -39° -34° 10 18 -29° -25° -28°...
  • Page 6: Uncrating And Preparation

    Complete instructions are in this form or in the option package; option packages are shipped separately. Other shipped separate items could include a vent cap (Option CC1 for UDAP); a vent/ combustion air kit (Option CC2 or CC6 for UDAS); a manual gas valve; a thermostat bracket kit;...
  • Page 7: Clearances And Dimensions

    Negative Pressure OFF Setpoint "w.c. Label color Purple Pink Purple Brown above 6000 ft Model UDAP-CV with Option AV6 for Common Venting (1830M) elevation Size 60 75 High Altitude Switch P/N 197029 197032 196362 196388 Negative Pressure OFF Setpoint "w.c.
  • Page 8: Dimensions

    4. Clearances and Dimensions (cont’d) 4. Dimensions FIGURE 4 - Model UDAP, Power Vented Fan Model � ������������������������������������������������������������� � ���������� ������������� ��������������� ��������� ���������� ������ � ��������� ���������� �������� � ���������� ���������� ���� �������� ���������� ���� �������� ����������� ����������������� �������������������...
  • Page 9 FIGURE 5 - Model UDAS, Separated Combustion Fan Model � � ������������������������������������������������������������� ���������� ������������������������� ������������� �������������������������� ��������������� ������������������� ��������� � � ������ ���������� � ���������� � ���� �������� ���������� ���� ���������� ��������������� �������� �������� ����������� ���������������� ����������� ���������� � ��������������������� ���������...
  • Page 10: Hanging The Heater

    5.1 Weights Heater Before suspending the heater, check the supporting structure to be used to verify that it has sufficient load-carrying capacity to support the weight of the unit. Model UDAP Size 30 45 60 75 150 175, 00 5...
  • Page 11: Mechanical

    FIGURE 7A - Be sure the threaded hanger rods are Suspending the locked to the heater as illustrated. Heater with Rods from Length of threaded rod extending into the Threaded Nut the heater MUST NOT exceed 1/” Retainers (either two or �����������������...
  • Page 12 6. Mechanical 6.1 Gas Piping and Pressures (cont’d) (cont’d) 6.1.1 Gas Supply and Connections (cont’d) Sizing Capacity of Piping Cubic Feet per Hour based on 0.3" w.c. Pressure Drop Supply Specific Gravity for Natural Gas -- 0.6 (Natural Gas -- 1000 BTU/Cubic Ft) Line Specific Gravity for Propane Gas -- 1.6 (Propane Gas -- 2550 BTU/Cubic Ft) Length...
  • Page 13 FIGURE 9 - Gas ������������������ connection is at ������������ �������������� the pipe nipple that ����������� �������� extends outside the ���� cabinet. ��������������� ��� ������������������������ Illustration shows ��������������������� both a vertical and �������������������� �������������� horizontal gas supply; requirements are the ������������ same. ����������� ��������...
  • Page 14 6. Mechanical ) Open the manual valve and operate the heater. (NOTE: On Model UDAS, depress and hold the door safety switch.) Measure the outlet pressure of the gas valve. To (cont’d) measure low-stage pressure on a unit equipped with a two-stage valve, disconnect 6.1 Gas Piping the wire from the “HI”...
  • Page 15: High Altitude

    The input and/or the capacity of the heater changes with the derate. The tables below list inputs and capacities at altitudes from sea level to 10,000 ft (3045M). Capacity Changes BTUH Inputs and Capacities by Altitude in the UNITED STATES for Model UDAP and Model UDAS Normal Thermal Output...
  • Page 16: Combustion Air - Udap And Udap-Cv

    6. Mechanical 6. Combustion Air - Models UDAP and UDAP-CV (cont’d) This heater must be supplied with the air that enters into the combustion process and is then vented to the outdoors. Sufficient air must enter the equipment location to replace that exhausted through the heater vent system.
  • Page 17: Supply Wiring

    (20A @ 115V; 10A @ 230V Rating). Model UDAS supply wiring connects to leads located inside a sealed electrical box. To maintain the sealing feature of the electrical box, always replace the cover plate. Model UDAP sup- ply wiring connects directly to leads on the integrated circuit board.
  • Page 18: Wiring Diagrams

    7. Electrical 7.4 Wiring Diagrams Supply and FIGURE 14A - Typical Wiring Diagram for Model UDAP or Model UDAS, Wiring (cont’d) Single Stage ������������������ ��������� �������������� � � � ������������ � ���������������� � ������ ��� �� �������� ����� � ��...
  • Page 19 FIGURE 14B - Typical Wiring Diagram for Model UDAP or Model UDAS, Single Stage with Optional Air Recirculation ��������� ������������������ �������������� � ������������ � ���������������� � ������ � �������� �� ��� ����� �� ��� � �� ��� ��� �� ������� �������...
  • Page 20 7. Electrical 7.4 Wiring Diagrams (cont’d) Supply and FIGURE 14C - Typical Wiring Diagram for Model UDAP or Model UDAS, Wiring (cont’d) Two Stage Gas Valve �� ��������� ������������������ �������������� � ������������ � ���������������� � � ������ � �������� ��...
  • Page 21: Electrical Operating Components

    The combustion air proving switch is a pressure sensitive switch that monitors air pres- Operating sure to ensure that proper combustion airflow is available. On Model UDAP, the switch Components is a single pole/normally open device which closes when a negative pressure is sensed in the venter housing.
  • Page 22: Controls And Operation

    7. Electrical 7.5. Flame Rollout Switch - Sizes 30-15 only Sizes 30-125 are equipped with a temperature activated manually reset flame rollout Supply and switch. The flame rollout switch is located at the top of the burner assembly. It is factory Wiring (cont’d) set and is non-adjustable.
  • Page 23: Ddc Controls, Options D10 And D14

    Multiple Heater Control, Option CL31 and Option CL3 If the heater was ordered with a multiple heater control option, one thermostat can be used to control up to six heaters. The option includes a 40VA transformer that replaces the standard trans- former in the “controlling”...
  • Page 24: Ignition System

    LED venter motor energized indefinitely as long as the call for heat remains and the pres- lights on Model UDAP. sure switch is open. When the pressure switch is proven closed, the control begins the prepurge time. If flame is present any time while in prepurge, the prepurge time is restarted.
  • Page 25 4) Fan/Blower On Delay - The control waits for 30 seconds from the time the gas valve opened and then energizes the fan/blower motor. The gas valve and venter motor remain energized. The control proceeds to steady heat mode. 5) Steady Heat - Control inputs are continuously monitored to ensure limit and pres- sure switches are closed, flame is established, and the thermostat call for heat remains.
  • Page 26 8. Controls and Abnormal Heat Cycle Functions (cont’d) Operation Pressure switch opening for less than 2 seconds during the trial for ignition period shall not interrupt the heat cycle. (Gas valve will de-energize while the pressure switch is (cont’d) open.) If the pressure switch opens after a successful ignition, the control will de-energize the 8.3 Ignition System gas valve.
  • Page 27: Check The Installation Prior To Startup

    9. Commissioning 9.1 Check the installation prior to startup: and Startup  Check to be sure that all screws used to hold shipping brackets were re- installed in the heater cabinet.  Check suspension. Unit must be secure and level.  Check clearances from combustibles.
  • Page 28: Check Installation After Startup

    3) Open the access door. 4) Turn the gas control knob clockwise to “OFF”. Do not force. 5) Close the access door. 9.3 Check  Vent System Testing Procedure - Model UDAP installation after 1. Seal any unused openings in the venting system. startup: 2.
  • Page 29: Maintenance And Service

    (See FIGURE 18 and Paragraphs 10.2.1 - 10.2.14.): Schedule • Clean all dirt, lint, and grease from the combustion air opening (UDAP) and venter assembly. NOTE: If replacement • Clean all dirt, lint, and grease from the fan blade, fan guard, and parts are required, use motor.
  • Page 30: Maintenance Procedures

    10. Maintenance and Service (cont’d) FIGURE 18 - Location of Controls ����� ������������������������������������� ���������������� ��������������������� ������ ������������������������������������ ������������� �������������� ��������������� ��������������������������������� ������������������� ���������������� ��������������������� �������������������������� �������������� ������������������� ��� ����� ��������� �������������������� ����������������� ����������� �������������������������� ����������������������� ������� ����������������� ������������������������� ������������������ ����������� ���������������������...
  • Page 31 Carefully pull the burner assembly out of the cabinet. FIGURE 19 - Burner �������������������������������������������������������������������� ������������������������������������������������������������ Removal (UDAP �������������������� illustrated; same process for both UDAP and UDAS) ������ ������� ������������ ��������� ������������������� ���������������� �������������������� �����������...
  • Page 32 10. Maintenance 10.. Burner Maintenance (cont’d) and Service Re-Install the Burner (cont’d) (cont’d) burner shield; sliding the supports into the slots. On the right, re-attach each burner body support to the secondary air shield. 10. Maintenance 2. Attach the Secondary Air Baffles (Sizes 60-400 only) - Re-attach the secondary Procedures air baffles as marked.
  • Page 33 Shaft Blade 30-250 300-400 Motor Motor Setscrew Setscrew UDAP-45LN 5, 50, UDAP & UDAS Size 175 00 350 400 (with ALB) 9/16 1-1/2 2-1/8 2-3/8 2-5/16 2-3/8 2-1/8 1-5/8 1-7/8 1-3/8 inches Setscrew torque in/lbs ±10 1. If the heater is installed, turn off the gas and disconnect the electric power.
  • Page 34 10. Maintenance 3. Disconnect the three venter motor wires at the DSI control, capacitor wires at the and Service capacitor (if applicable), and ground screw (located on the control panel). 4. Sizes 30 and 45 - Disconnect the gas train and move it out of the way. Disconnect (cont’d) the gas supply at the union outside of the cabinet.
  • Page 35: Troubleshooting

    LED is visible through viewport on Model UDAS. Remove (Circuit Board) access panel on Model UDAP. See operating sequence in Paragraph 9. Do not attempt to repair the DSI integrated control module (circuit board); the only field replaceable component is the fuse.
  • Page 36: General Troubleshooting

    10.3 Troubleshooting (cont’d) Control Status - Green LED Codes IMPORTANT: When using Steady ON Normal Operation, No call for heat a multimeter to troubleshoot Fast Flash . Normal Operation, Call for heat the 24 volt circuit, place the 1 Flash ..System Lockout, Failed to detect or sustain flame meter’s test leads into the 5 2 Flashes ..
  • Page 37 PROBLEM (cont'd) PROBABLE CAUSE (cont'd) REMEDY (cont'd) Burner will not light 4. No Spark (cont'd): 4. (cont'd) (cont'd) c) Incorrect spark gap. c) Maintain spark gap at 1/8". d) Spark cable shorted to ground. d) Replace worn or grounded spark cable. e) Spark electrode shorted to ground.
  • Page 38: Appendix

    Smaller and/or larger vent and combustion air pipe diameters may be permissible. For Model UDAS refer to the Venting Installation Manual for Separated Combustion Units. For Model UDAP refer to the Venting Installation Manual for Power Vented units. For a Model UDAP with Option AV6, refer to the Venting Installation Manual for Common Venting.
  • Page 39: Index

    Option CC2 or CC6 3, 6 Wiring Connections 17 Fan/Blower Off Delay 25 Option CD 2, 3, or 4 7 Wiring Diagram for Model UDAP or Fan/Blower On Delay 25 Option CK8, CK10, and CK22 11 Model UDAS, Single Stage 18...
  • Page 40 BUILDING OWNER OR MAINTENANCE PERSONNEL: For service or repair • Contact the installer listed above. • If you need additional assistance, contact the Reznor Distributor listed above. • For more information, contact your Reznor Representative by calling 800-695-1901. Reznor/Thomas & Betts 150 McKinley Avenue Mercer, PA 16137 www.RezSpec.com...
