Installation/Operation/Maintenance
Heater Models
RA 140
RA 235
RAD 140
RAD 235
REZNOR
®
HEATERS AND BOILERS
Manual and
Reference Guide
CSA Certified to Electrical and Fuel Burning requirements only.
Form I-RA/D 140/235 (Version A)
USED-OIL-FIRED
Form I-RA/D 140/235 (Version A), Mfg No. 110318 Rev 4, Page 1
Obsoletes Form I-RA/D 140/235

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA 140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reznor RA 140

Summary of Contents for Reznor RA 140

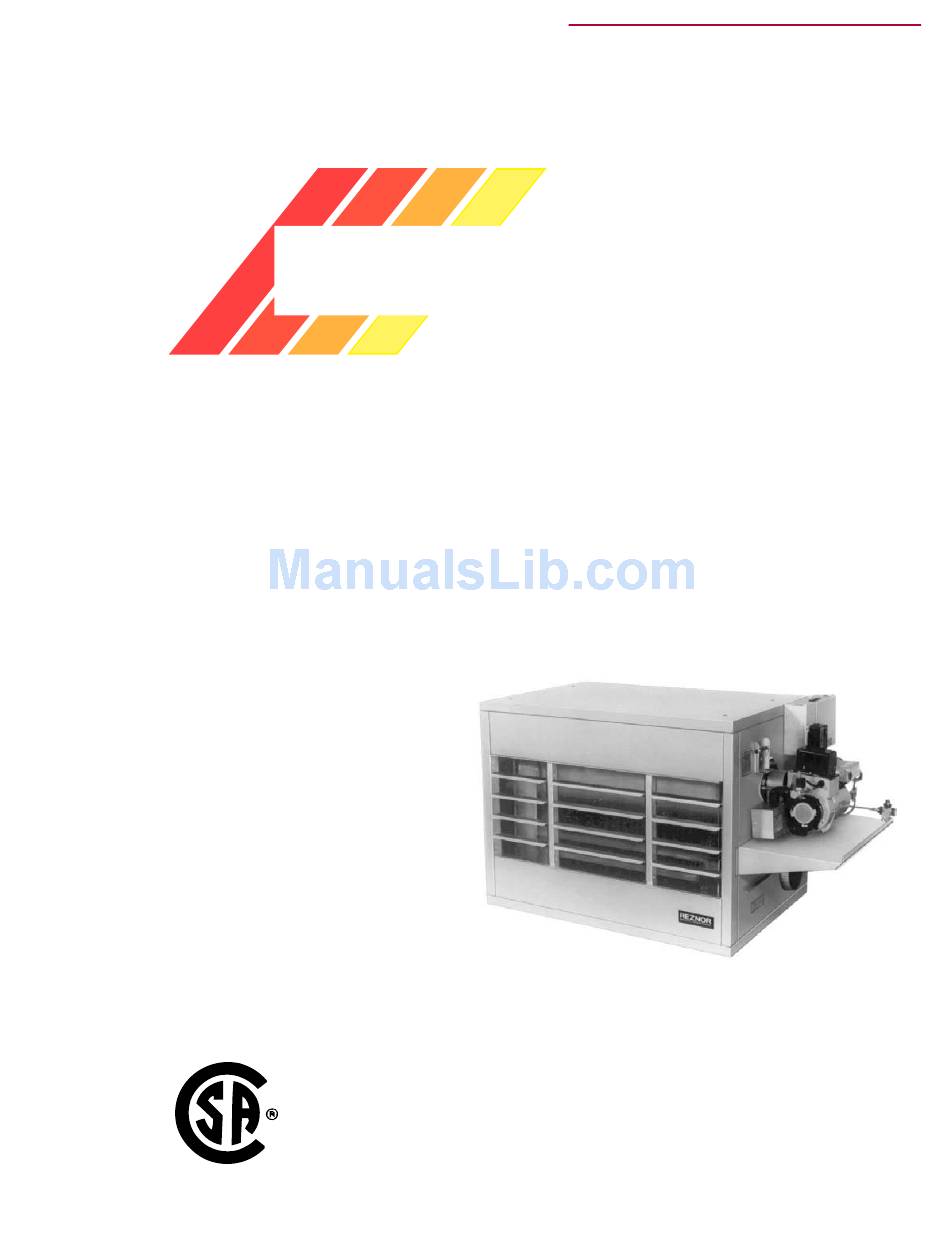

  • Page 1 ® HEATERS AND BOILERS Installation/Operation/Maintenance Manual and Reference Guide Heater Models RA 140 RA 235 RAD 140 RAD 235 CSA Certified to Electrical and Fuel Burning requirements only. Form I-RA/D 140/235 (Version A), Mfg No. 110318 Rev 4, Page 1...
