INSTALLATION/OPERATION/MAINTENANCE FOR GAS-FIRED
HIGH-INTENSITY INFRARED HEATERS
• Failure to follow safety warnings exactly could result in serious injury, death, or property
damage.
• Improper installation, adjustment, alteration, service, or maintenance can cause serious injury,
death, or property damage.
• Une installation, un réglage, une modification, une réparation ou un entretien incorrect peut
entraîner des dommages matériels, des blessures ou la mort.
• Read these instructions thoroughly before installing or servicing this equipment.
• Lisez attentivement les instructions d'installation, de fonctionnement et d'entretien avant de
procéder à l'installation ou à l'entretien de cet intensité.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
DO NOT DESTROY. PLEASE READ CAREFULLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

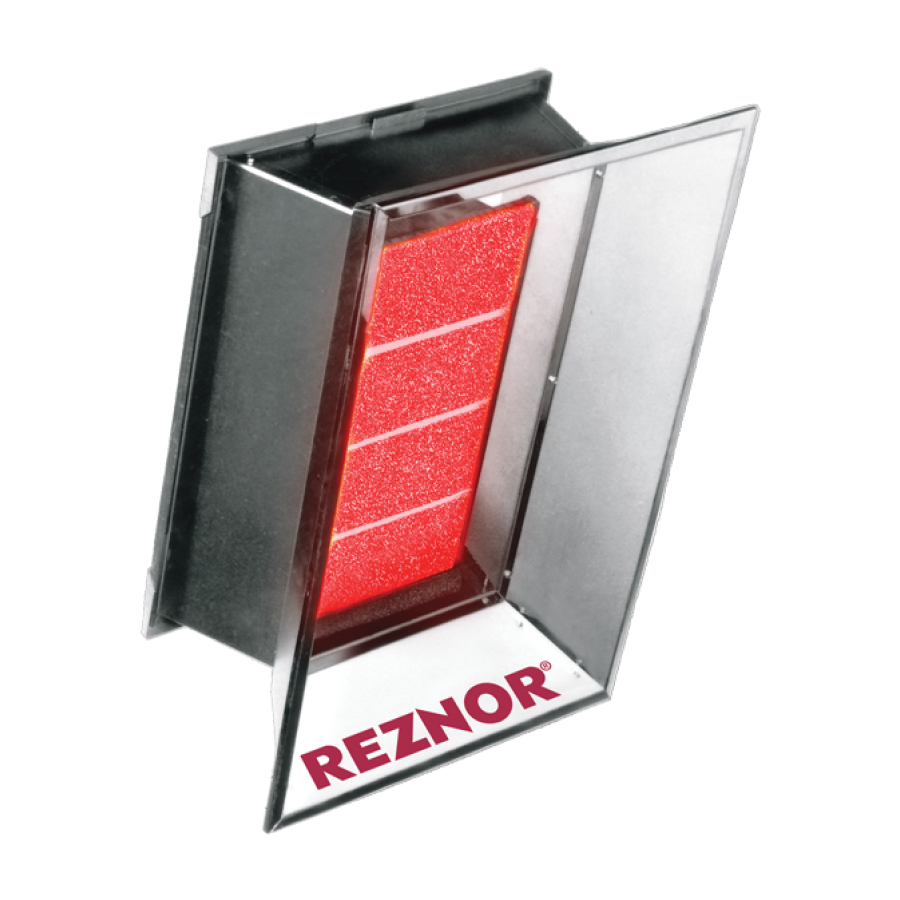

MODELS RIHL, RIHN, RIHVL, AND RIHVN
 ⚠ DANGER ⚠ 
FIRE OR EXPLOSION HAZARD
WHAT TO DO IF YOU SMELL GAS
Revision: I-RIH (05-21) 131793-A
Supersedes: I-RIH (04-16) PN131793R11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIHL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reznor RIHL

Summary of Contents for Reznor RIHL

  • Page 1 Revision: I-RIH (05-21) 131793-A Supersedes: I-RIH (04-16) PN131793R11 INSTALLATION/OPERATION/MAINTENANCE FOR GAS-FIRED HIGH-INTENSITY INFRARED HEATERS MODELS RIHL, RIHN, RIHVL, AND RIHVN  ⚠ DANGER ⚠  FIRE OR EXPLOSION HAZARD • Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
