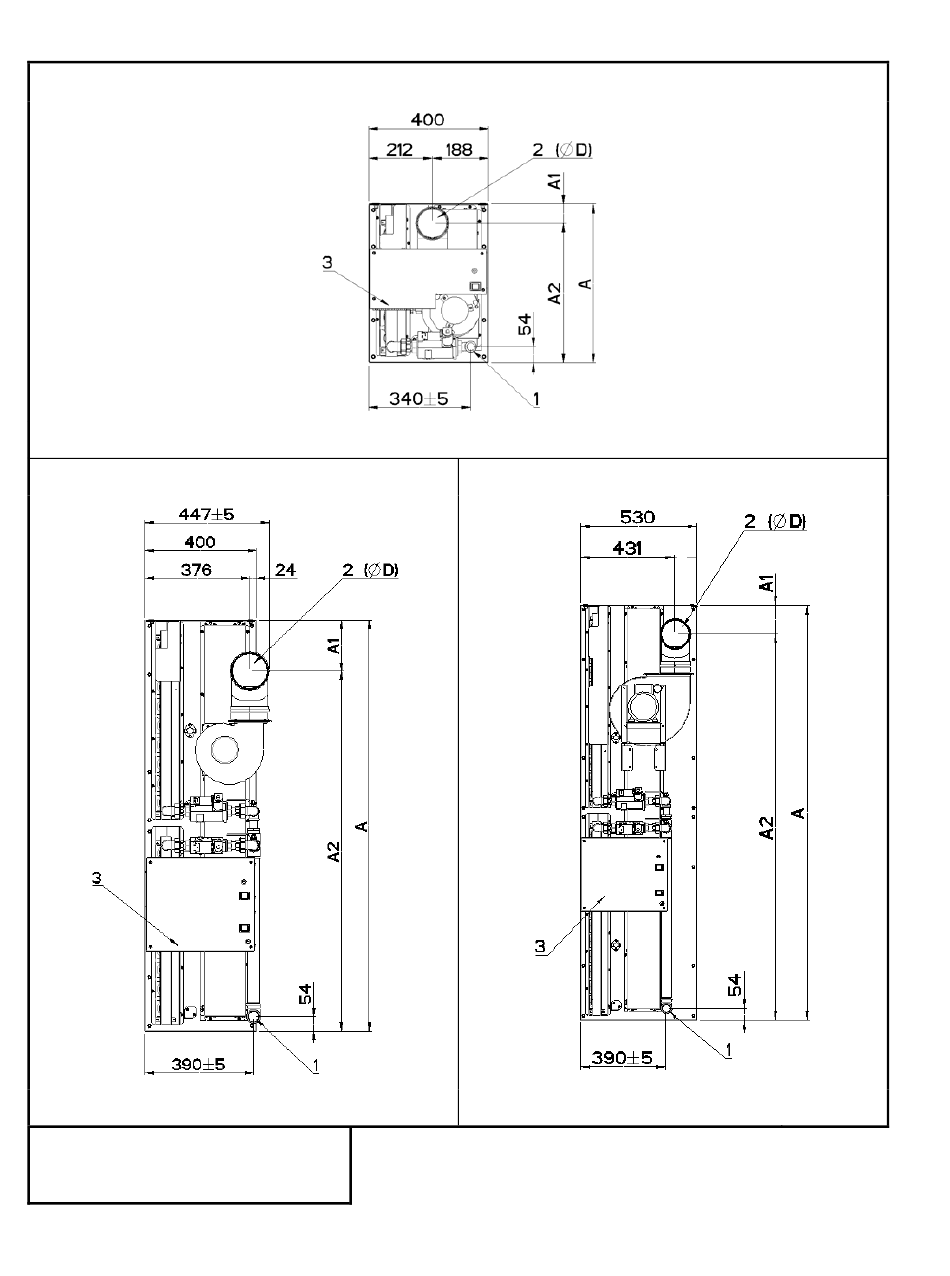

Dimensions
Figure 1 : Side view
Figure 1b: RHC 8125M, 8150M, 8175M DJL/RJL
(n° 59710_01)
1. Gas connection
2. Flue outlet
Electrical connection
3.
0710RHC8-JLNLEN
Figure 1a: RHC 8000 DJL/RJL
(n° 59014_01)
(not 8125, 8150, 8175,8200)
Figure 1c: RHC 8200M DJL/RJL
(n° 59706_01 a)
5/36
