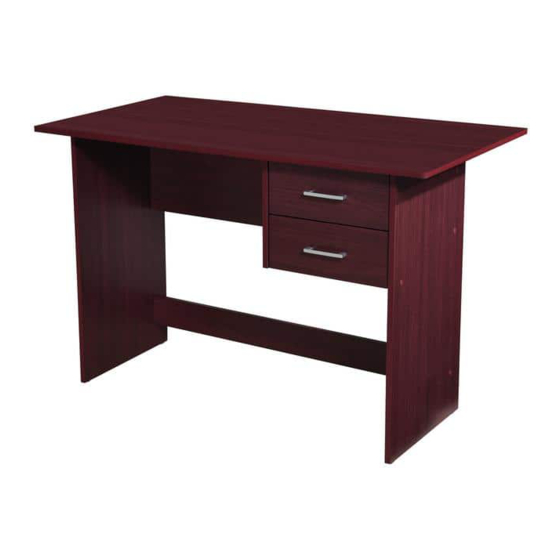

- Page 1 Hodedah www.hodedah.com support @hodedah.com HI 425 " X D23 " X H29 "...
- Page 2 Hodedah www.hodedah.com support @hodedah.com PART & HARDWARE LIST PLASTIC DOWEL M8 X 25MM DRAWER SLIDE 12" CB SCREW M3.5 X 12MM CB SCREW M4 X 35MM CSK CAP M6 X 40MM POWER NAIL " MINIFIX 5654 PLASTIC PIN ALLEN KEY...
- Page 3 Hodedah www.hodedah.com support @hodedah.com - This product contains small components, please ensure that they are kept away from small children. - THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE.
- Page 4 - Never push, drag or pull your furniture (especially on carpet). Warranty Information Hodedah warrants this product to be free from defects in material and workmanship agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to be repair or replacement of defective parts and no assembly labor is included.
- Page 5 Hodedah www.hodedah.com support @hodedah.com STEP 1 MINIFIX 5654 PLASTIC DOWEL M8 X 25MM CB SCREW M3.5 X 12MM DRAWER SLIDE 12" LEFT VIEW BOTTOM VIEW RIGHT VIEW - Insert 17 x Plastic dowel (A) into Panels (1), (2) (3), (4), (5) & (6) using a plastic hammer.
- Page 6 Hodedah www.hodedah.com support @hodedah.com STEP 2 ALLEN KEY CSK CAP M6 X 40MM PLASTIC PIN - Attach Panel (2) & (5) into Panel (1). Insert 3 x Csk Cap M6 x 40 (D), tighten with Allen key (K) & insert 3 x Cap (H).
- Page 7 Hodedah www.hodedah.com support @hodedah.com STEP 3 CB SCREW M3.5 X 12MM CB SCREW M4 X 35MM POWER NAIL " ALLEN KEY MINIFIX 5654 DRAWER SLIDE 12" - Attach panel (7) to Panels (1), (3) & (6), insert 5 x Minifix (E1), tighten with Allen key (K) & insert 5 x Cap (H).
- Page 8 Hodedah www.hodedah.com support @hodedah.com STEP 4 P/H SCREW M4X40 HANDLE 2379 (160MM) - PVC - Fix 2 x Handle (F1) to Panel (8) front. Insert 4 x P/H Screw M4 x 40mm (F2) & tigthen with Phillips head screwdriver. - Slide the drawer box into the drawer slide at the Panel (3) & (6).
