HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI4DR-G (MOP-SP)

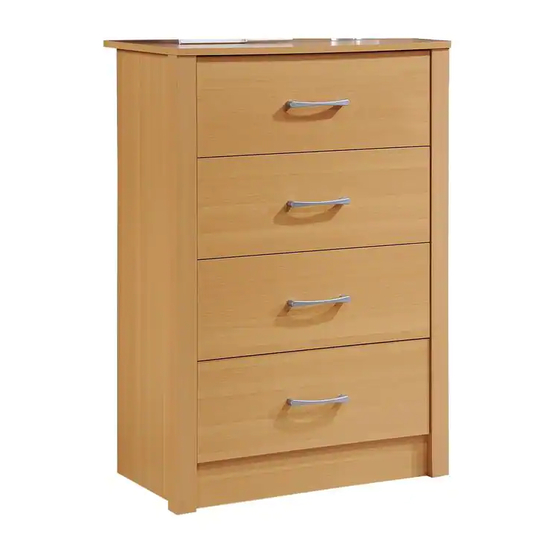

4 DRAWER CHEST

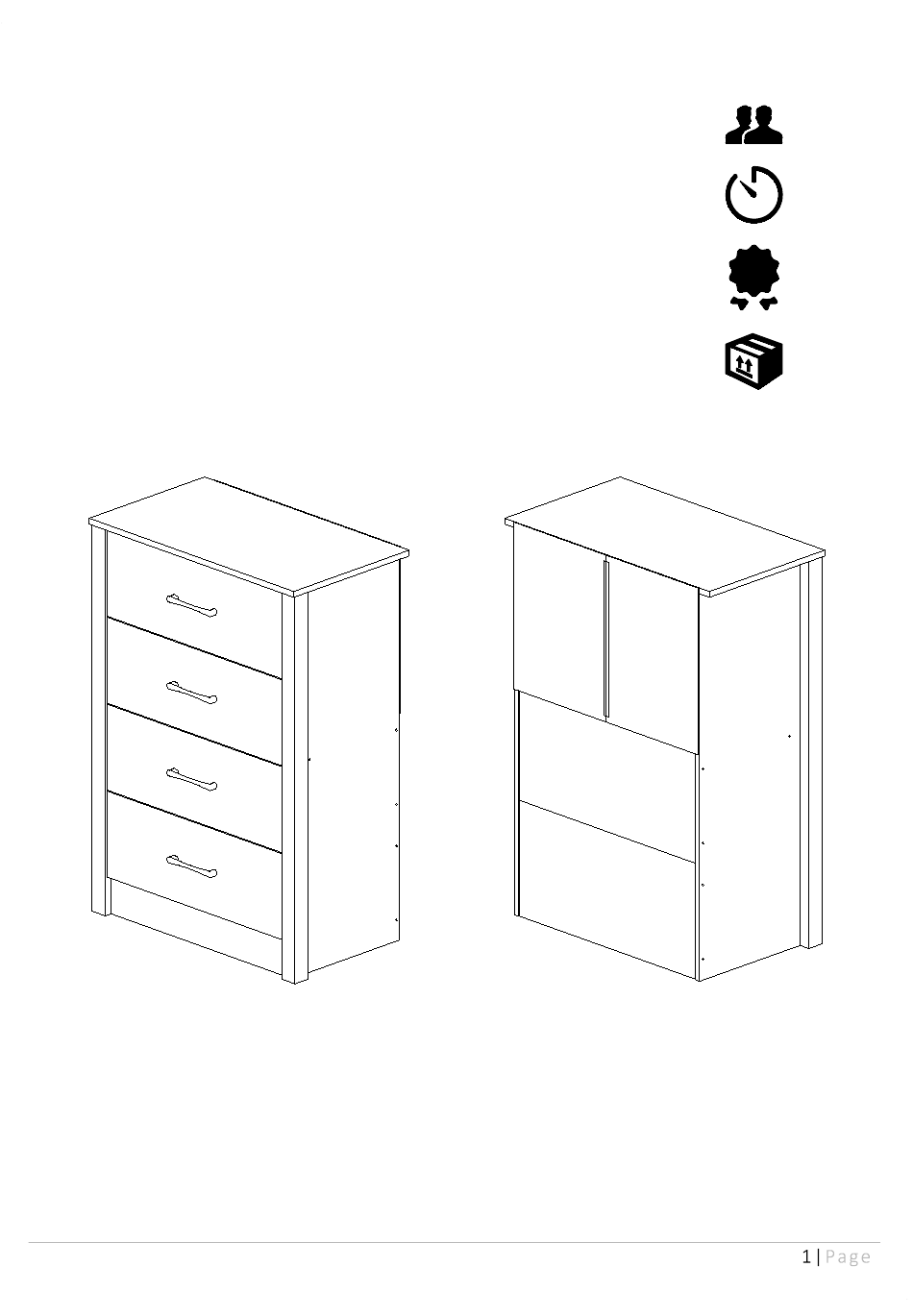

FRONT VIEW
Product Dimensions: Height 40.24" x Width 27.52" x Depth 15.51"
Weight Capacity: Large Drawer 25Ib. | Small Drawer 20Ib.
www.Hodedah.com
®
BACK VIEW
2 people
90 mins
1 YR LTD
1 Box
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HI4DR-G
Summary of Contents for Hodedah HI4DR-G
- Page 1 HODEDAH ® Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90 mins ITEM # HI4DR-G (MOP-SP) 4 DRAWER CHEST 1 YR LTD 1 Box FRONT VIEW BACK VIEW Product Dimensions: Height 40.24" x Width 27.52" x Depth 15.51"...
-
Page 2: Warranty
FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. -
Page 3: Product Care And Maintenance
HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restranits may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2. -
Page 4: Hardware List
HODEDAH ® Hardware List 10 Pcs 20 Pcs 32 Pcs Screw M6 x 40mm Screw M4 x 32mm Screw M3.5 x 14mm 10 Pcs Pvc Cap *For # 13 Drawer Slides 6 Sets 16 Pcs 42 Pcs L Bracket Mini Fix... - Page 5 HODEDAH ® Accessories 4 Sets * Fix On Side Panels Ⓐ Drawer Slide - A *Fix On Side Panels A & F * Fix On Side Panels Ⓕ * Fix On Drawer Side Panels Ⓘ 4 Sets Drawer Slide - B *Fix On Side Panels I &...
-
Page 6: Parts List
HODEDAH ® Parts List Left Side Panel Kick Panel (Front) Kick Panel (Back) & Back 603 x 105 x 15mm Strengthening Panel 1003x 387 x 15mm 603 x 300 x 15mm 1 Pc 1 Pc 1 Pc Kick Panel (Back) & Back... - Page 7 HODEDAH ® The Breakdown www.Hodedah.com...
-
Page 8: Pre-Assembly
HODEDAH ® Pre - Assembly 1. Insert the pvc dowels ⑦ to panels 's non-thru holes as shown , using hammer to gently tap them in. 2. Place the drawer slide A ⑫ onto the 2 holes area shown at left side panels . - Page 9 HODEDAH ® Pre - Assembly Insert the pvc dowels ⑦ to both end of the panels Using hammer to gently tap them in. Insert the mini fix ⑤ (nuts) with the cross arrow facing outward and aim to panel 's thru hole.
- Page 10 HODEDAH ® Assembly Of Drawers : 4 DRAWERS Place L bracket and ensure its shorter part contact on panels 's non-thru holes as shown, then tighten them with screws ⑥ . Insert the PVC dowels ⑦ to end of the panels Using hammer to gently tap them in.
- Page 11 HODEDAH ® Assembly Of Drawers : 4 DRAWERS Flip drawer with bottom side up, place panel onto panels and insert panel to groove of panel Then nail the nails provided with hammer on the border of panel as shown.The gap between 2 nails should be about 100mm.
- Page 12 HODEDAH ® Assembly Of Drawers : 4 DRAWERS Screw M4 X 30mm 8Pcs. Handle Flip drawer over with 4 Pcs. bottom side down, tighten 2 screw ④ from inner side of panel into the handle ④ 's holes. COMPLETED www.Hodedah.com...
- Page 13 HODEDAH ® Step 1 * Place and fix Panels onto Panel by inserting the (Left) dowels onto the non-thru holes at Panel * Using allen key ⑩ to tighten screws ① from the 5 thru holes of panel , one by one.
- Page 14 HODEDAH ® Step 2 * Place and fix Panels onto Panel by pushing and slotting the (Right) dowels onto the non-thru holes at Panel * Using allen key ⑩ to tighten screws ① from the 5 thru holes of panel , one by one.
- Page 15 HODEDAH ® Step 3 Place and fix panel onto panels and panel , and align properly by inserting the 4 (down) mini fix screws ⑤ onto the L-thru holes at top edge of panel . At the same time, inserting panel...
- Page 16 HODEDAH ® Step 4 Lay the main unit at face down position, Place the back Panels onto the back of the main unit, and join the 2 panels together with H-profile by slotting one side each of panels into the track of H-profile.
- Page 17 HODEDAH ® Step 5 * Lift up the main unit carefully and let it stand up properly. * Cover all the screws ① 's head with the PVC cap provided by pushing the cover's stem onto the hole of screw head one by one for all screws...
- Page 18 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: · Attach the mounting bracket a to the furniture in the solid part below the top panel a few inches away from the side of the unit. · Screw b through the smallest hole of a .
- Page 19 HODEDAH ® Completion Enjoy & Thank you for purchasing from Hodedah! www.Hodedah.com...
