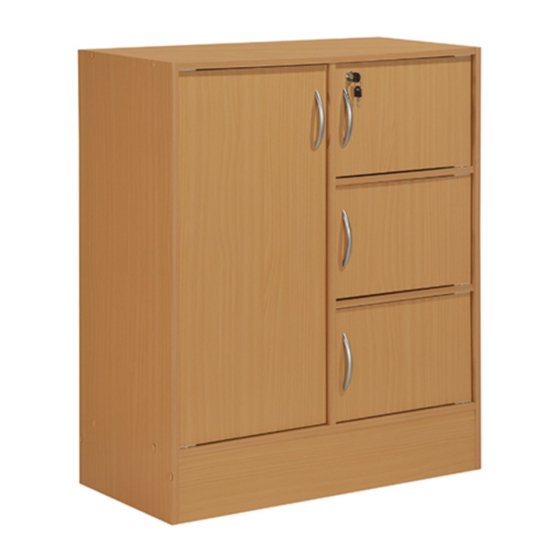

Storage cabinet

Advertisement

Quick Links

HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read abd keep for future reference.
ITEM # HI1115-F
STORAGE CABINET
FRONT VIEW
Product Dimensions: Height 38.58" x Width 31.73" x Depth 15.75"
www.Hodedah.com
®
Weight Capacity per shelf : 85 lbs
1 person
60 mins
1 YR LTD
1 Box
BACK VIEW
1
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI1115-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Hodedah HI1115-F

  • Page 1 HODEDAH ® Assembly Instructions 1 person This instruction booklet contains important safety information, please read abd keep for future reference. 60 mins ITEM # HI1115-F 1 YR LTD STORAGE CABINET 1 Box FRONT VIEW BACK VIEW Product Dimensions: Height 38.58" x Width 31.73" x Depth 15.75"...
  • Page 2: Warranty

    FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.
  • Page 3: Product Care And Maintenance

    HODEDAH ® Let's get started... Helpful hints, read before beginning assembly Make sure you receive all boxes.If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.
  • Page 4: Hardware List

    HODEDAH ® Hardware List Screw Screw Screw m3.5 x 14mm m3.5 x 16mm m3.5 x 22mm Crosshead Screw Square Lock Set Square Lock m6.3 x 40mm L Bracket Wood Dowel Door Holder Anti-Tipping Kit 6 x 25mm Handle Magnet Catch KD...
  • Page 5: Part List

    HODEDAH ® Part List www.Hodedah.com Page...
  • Page 6 HODEDAH ® The Breakdown www.Hodedah.com Page...
  • Page 7 HODEDAH ® Step 1 Wood Dowel 6 x 25mm -Insert the Wood Dowel 6 x 25mm (D4) into panel no. 3. Step 2 Wood Dowel 6 x 25mm -Insert the Wood Dowel 6 x 25mm (D4) into panel no. 4.
  • Page 8 HODEDAH ® Step 3 Wood Dowel 6 x 25mm -Insert the Wood Dowel 6 x 25mm (D4) into panel no. 5. Step 4 Wood Dowel 6 x 25mm -Insert the Wood Dowel 6 x 25mm (D4) into panels no. 6.
  • Page 9 HODEDAH ® Step 5 Wood Dowel 6 x 25mm -Insert the Wood Dowel 6 x 25mm (D4) into panel no. 10. Step 6 Wood Dowel 6 x 25mm -Insert the Wood Dowel 6 x 25mm (D4) into panel no. 11.
  • Page 10 HODEDAH ® Step 7 Crosshead Screw m6.3 x 40mm 4 Allen Key -Attach the panel no. 3 to panels no. 6. -Use Allen Key (N1) to tighten the Crosshead Screw m6.3 x 40mm (A17). Step 8 Crosshead Screw m6.3 x 40mm 4...
  • Page 11 HODEDAH ® Step 9 Crosshead Screw m6.3 x 40mm 16 Allen Key Hanging Steel Pipe 391 x 18mm 1 Crosshead Cover -Insert a Hanging Steel Pipe (P) between large marking holes at panel no. 1 & 3 . -Attach panel no. 1, 2, 10 & 11 to the unit.
  • Page 12 HODEDAH ® Step 11 Screw m3.5 x 14mm Leg Pin L Bracket 5 pcs Hit Softly -Nail a Leg Pin (L1) at bottom of panel no. 1, 2 & 10 . -Use Screw m3.5 x 14mm (A2) to assemble the L Bracket (R1) between panel no. 5 & 10 and 5 &...
  • Page 13: Final Step

    HODEDAH ® Step 13 Screw m3.5 x 14mm Magnet Catch KD -Insert the Magnet Catch KD (K1) at panel no. 4 & 6. -Use Screw m3.5 x 14mm (A2) to assemble Magnet Plate (K1) at panel no. 7, 8 & 9.
  • Page 14 HODEDAH ® FITTING OF ANTI-TIP SAFETY STRAP STEP 1: - Attach the mounting bracket (a) to the furniture in the solid part below the top panel a few inches away from the side of the unit. - Screw (b) through the smallest hole of (a).
  • Page 15 HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! www.Hodedah.com Page...
